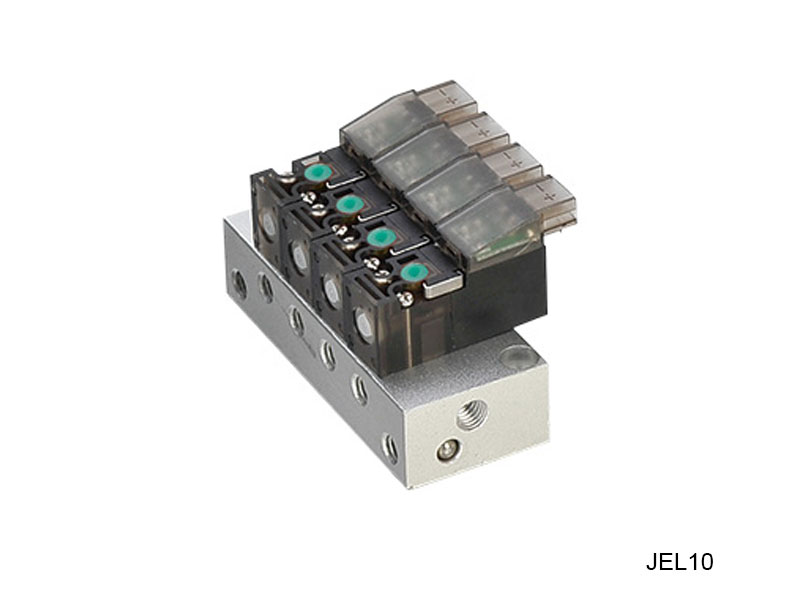

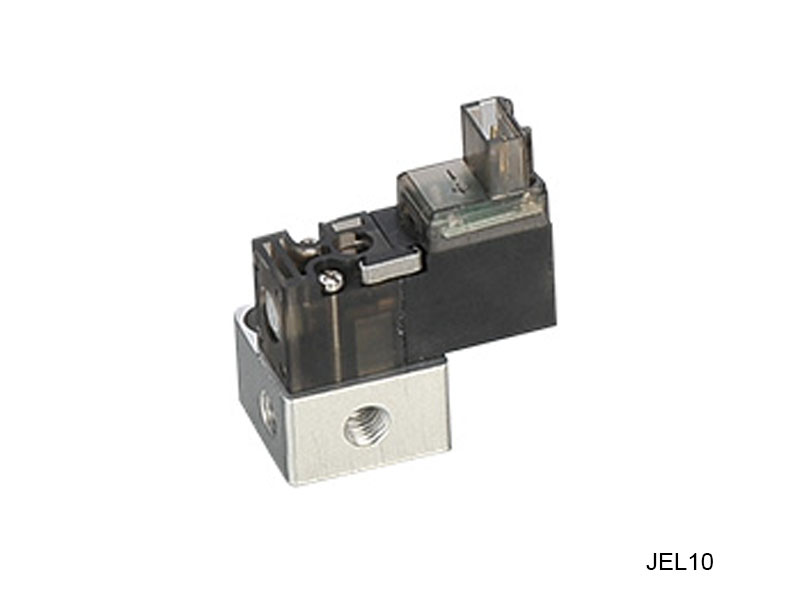

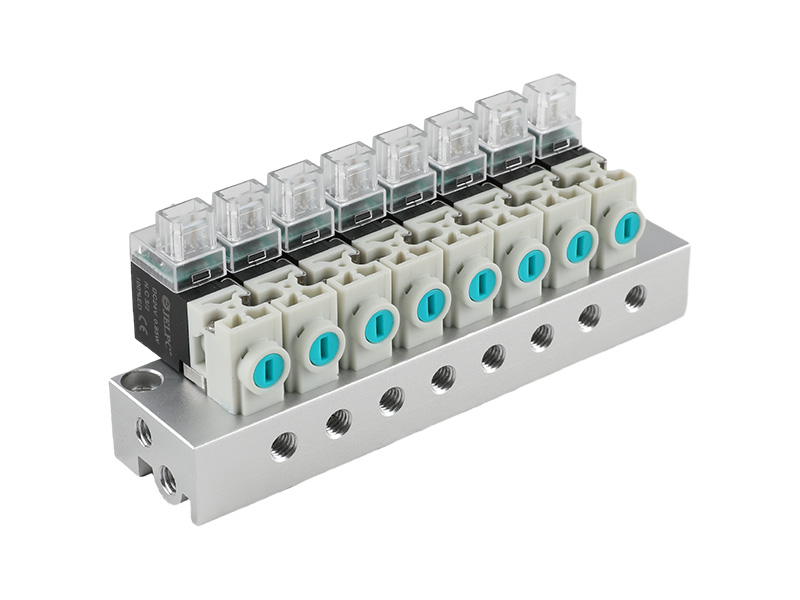

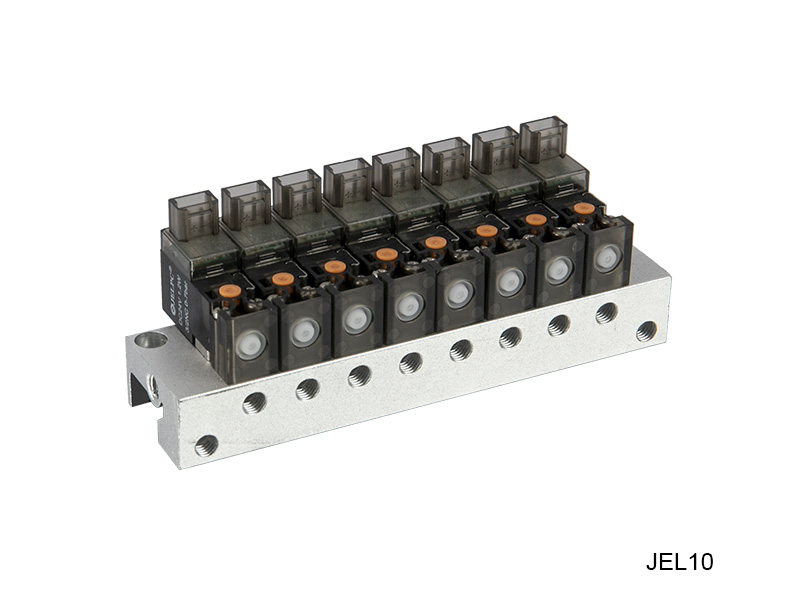

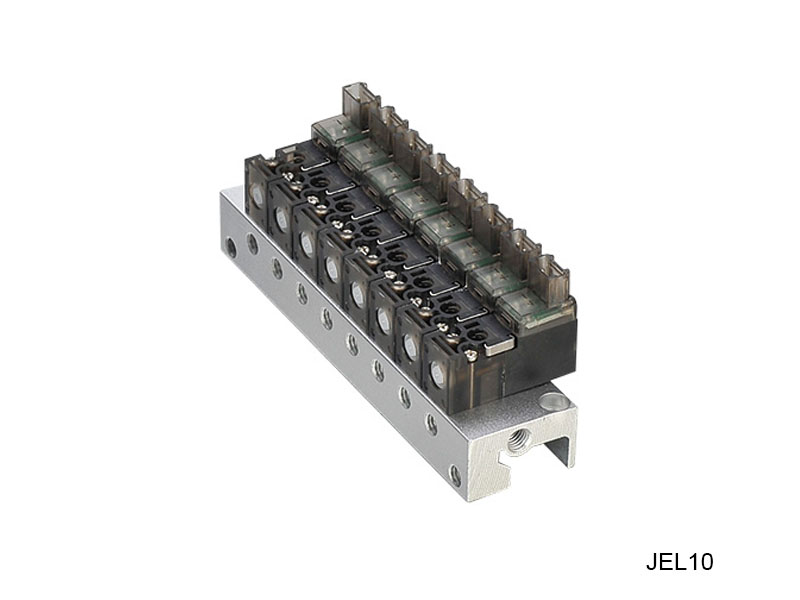

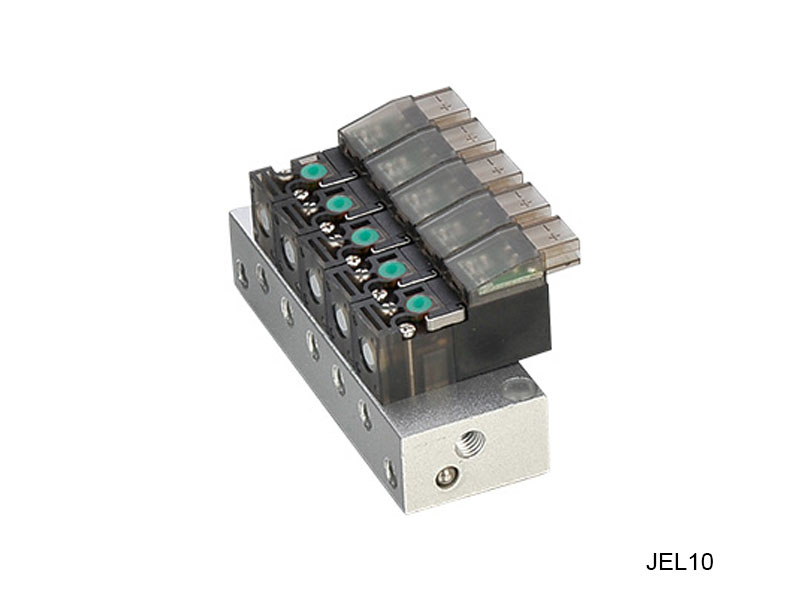

JEL10 Series Mini Solenoid Valve

JEL10 Series Mini Solenoid Valve

Features:

1. Body material - high strength nylon with low water absorption and wide temperature range from -40 °C~120 'C, to ensure dimensional stability.

2. Coil - lmport lacquer wire from Germany and wind by high precise winding machine to be sure consistency. Use imported special plastic coating machine and moulds with segmented pressure control technology for temperature to reach critical dimension within a tolerance of ± 0.005.

3. Assembly-semiautomatic assembly, with specially dedicated fixture to get the consistency, more than 95% of assembly quality rate.

4. Leakage Inspection -100% of automatic and manual test for leakage, and total internal and external leakage is less than 2ml/min.

5. Through this series of materials, processes and equipment guarantee, JEL10 miniature solenoid valve can be up to 100 million life times. The valve is mostly used in the textile industry, the medical device industry and the electronic industry

  • Product parameters

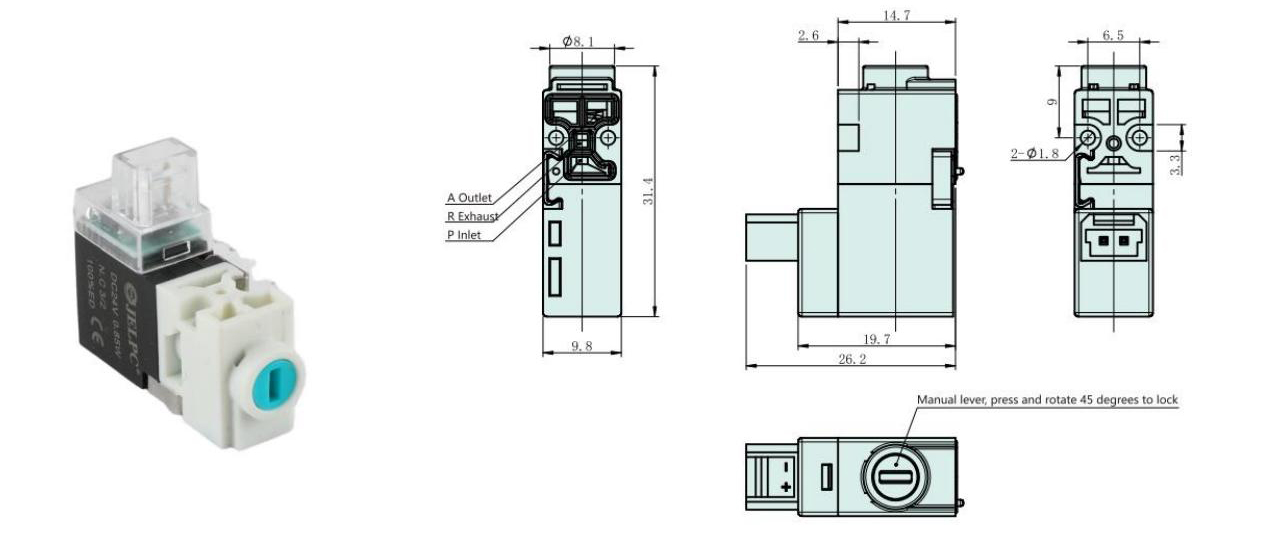

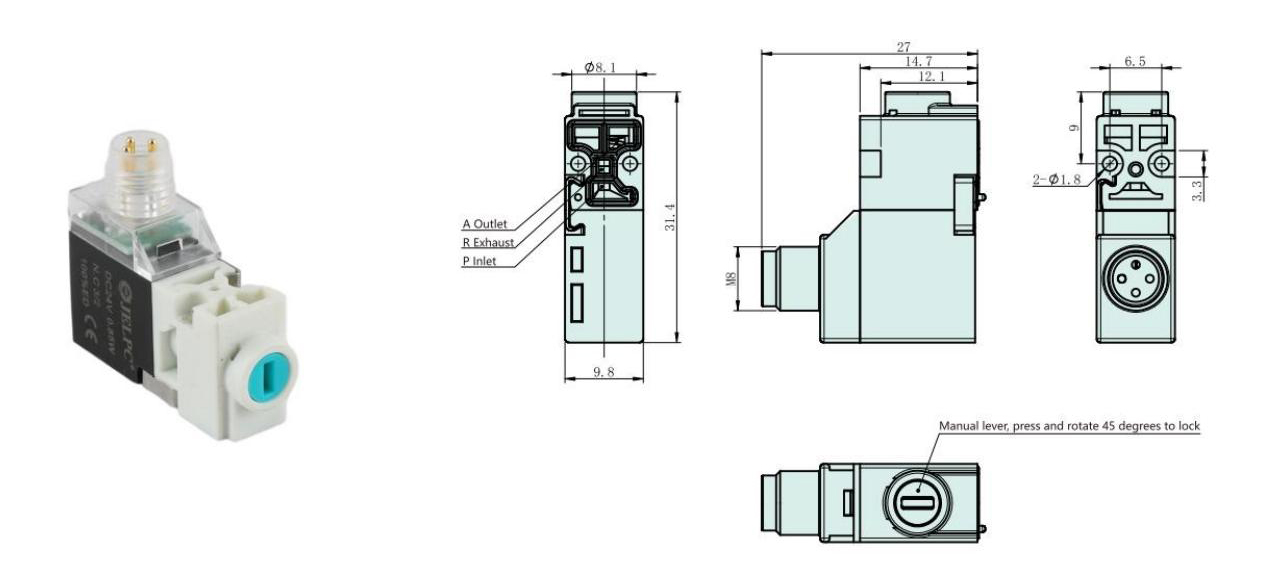

  • Product size

Ordering Code

*L type with cable; M8 type without cable, need to order.

Specification

Model JEL10
Type 3/2 Normal close
Fluid Air, inert gas
Ambient And Fluid Temp. -10°C ~ +70°C
Working Pressure 0 ~ 8bar
Port Size ∅0.65mm
P→A CV:0.008
A→R CV:0.01
Lubrication Without

Coil Specification

Wiring Vertical(L)
M8 thread type
 *Standard Voltage DC24V/12V
Power 0.85W/0.3W After saving energy
Insulation Grade H
Life Cycle >50 million times
Indicator LED Yellow
Working Frequency  >30Hz
Response Time  6~8ms
Protection  Dust-proof

*Note: The valve won't work when polarity reversed.
