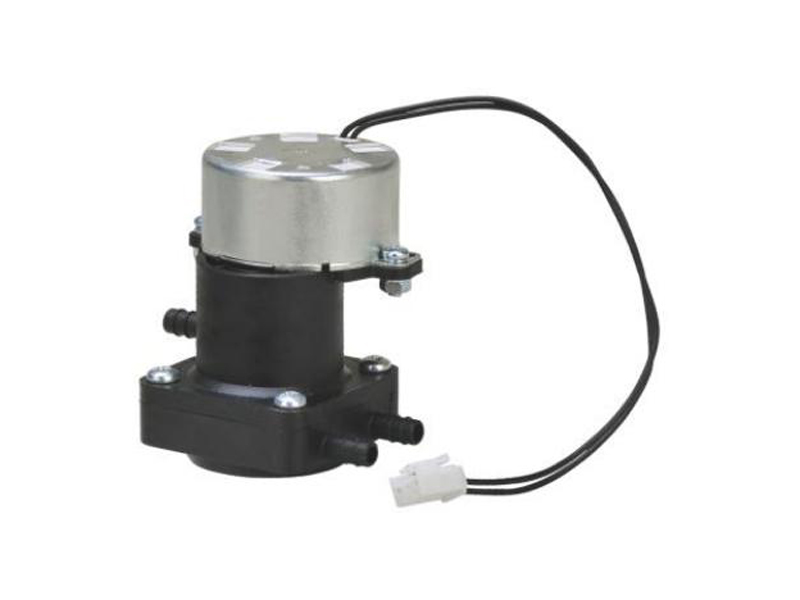

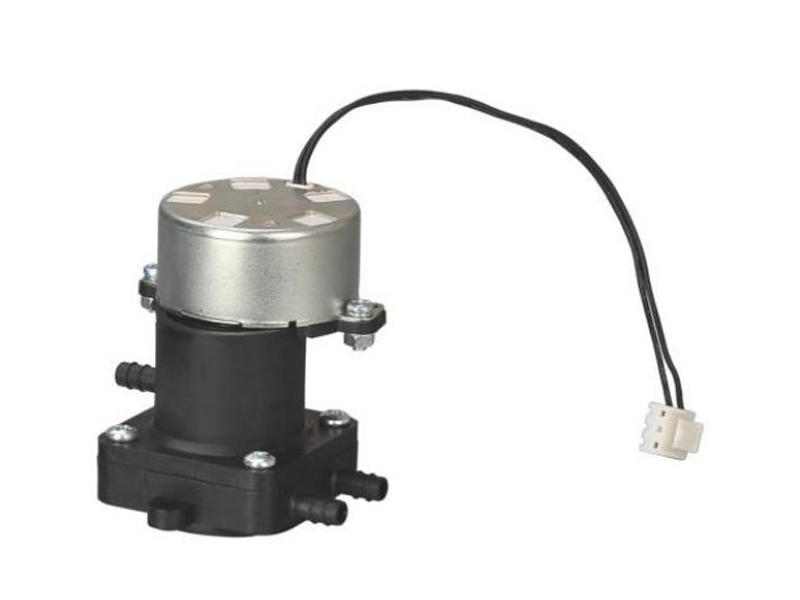

JELVD Series Rotary Valve

JELVD Series Rotary Valve

Features:
1. Body with ceramic sliding structure to be abrasive and long service life.
2. Be able to work with 0 pressure or small flow condition with synchronous motor, without starting pressure.
3. To optimize internal structure to be max flow to satisfy with operating requirements of 0.5 ~ 5L/min oxygen concentrator.
4. Low consumption, to save energy.

  • Product parameters

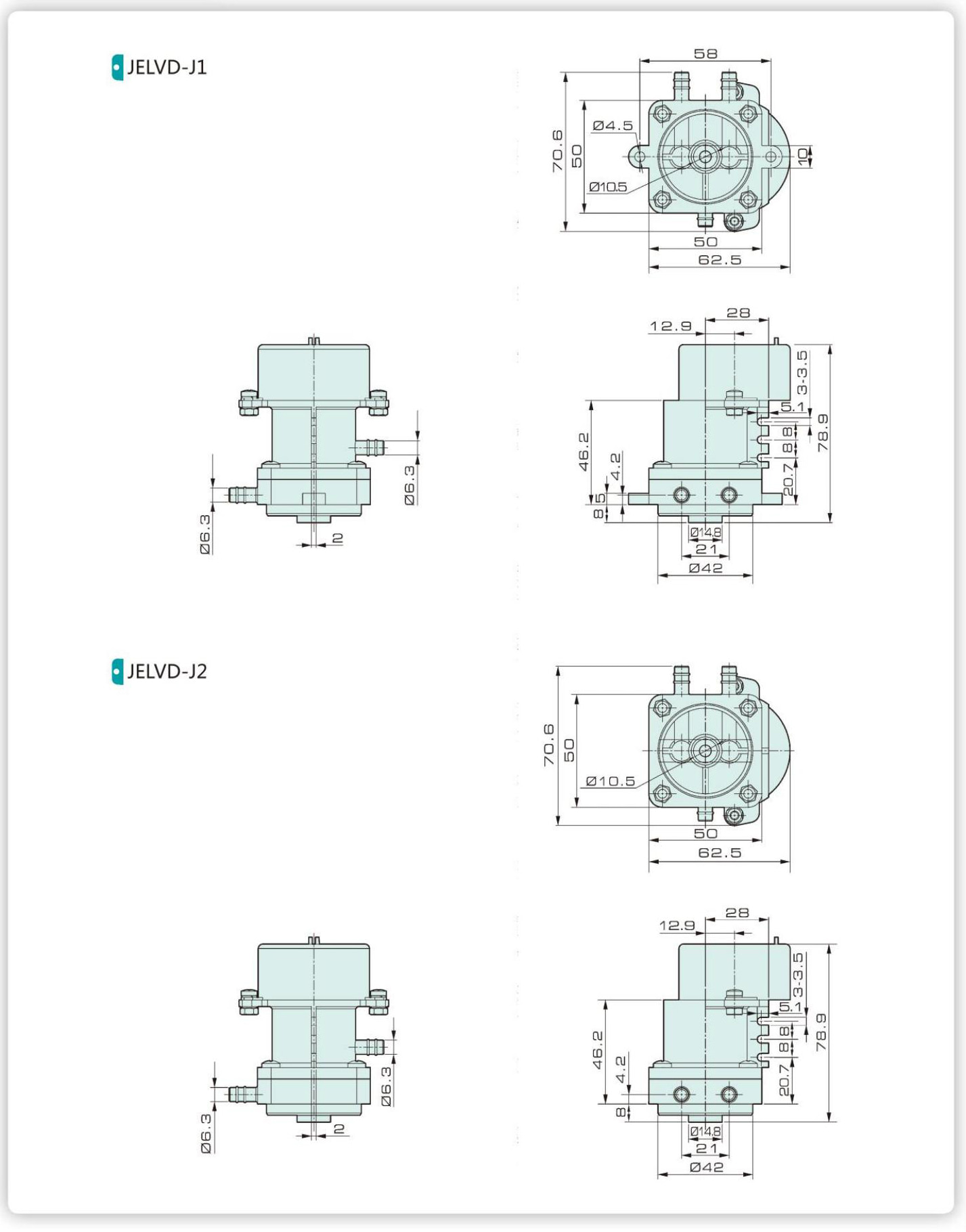

  • Product size

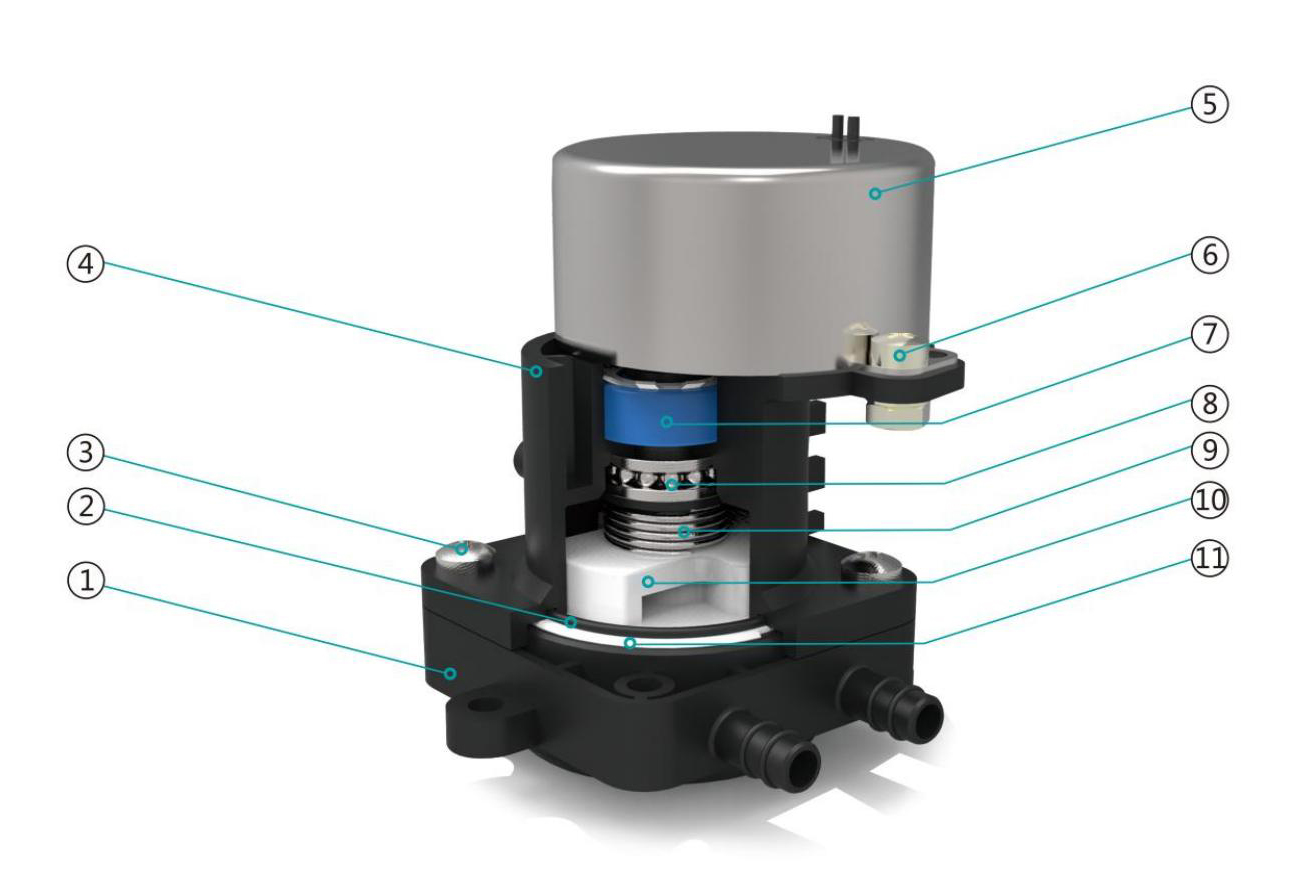

Internal Structure

Parts

Number Name Number Name
1  End cap 7  Coupling
2  O ring 8  Bearing
3  Screw 9  Spring
4  Top body 10  Top disc
5  Motor 11  Bottom disc
6  Screw

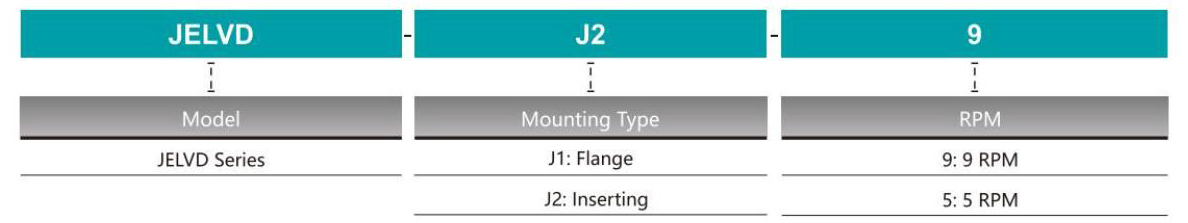

Ordering Code

Specification

Valve type JELVD Rotary Valve
Fluid 40μm filtered air
Working Pressure 0~0.25MPa
Max Pressure 0.4MPa
Speed 5r/min 8r/min(optional)
Flow Feature Input: 0.2MPa, Output: 0.1MPa
360L/min(ANR)
Ambient And Fluid Temperature -5～+80℃(non-frozen)
Fixing Form Optional
Main Parts Material 6061, PA6, Silicon rubber, NBR, 304
Voltage AC220V 50Hz
Voltage Tolerance ±10%
Humidity RH20%～80%
Un-loading Consumption ≤3W
Insulation Grade E
