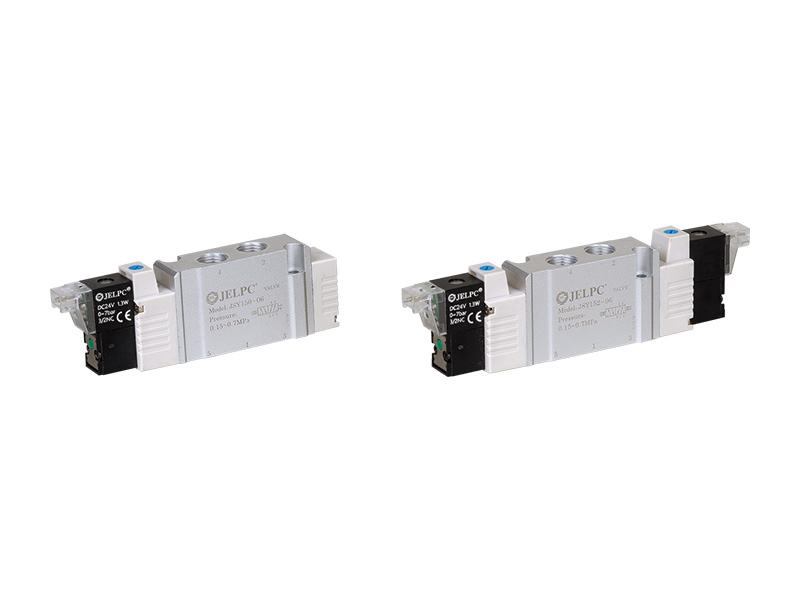

JSY Series Solenoid Valve

JSY Series Solenoid Valve

Key Features:
1. Internal exhausting structure, no pollution
2. Power consumption 0.85W, lowest version can reach to 0.3W
3. Sliding-column structure, special seals and grease to increase lifetime. Well sealing performance and fast response time
4. Maximum working pressure up to 0.8MPa
5. Integrated installation to save space

  • Product parameters

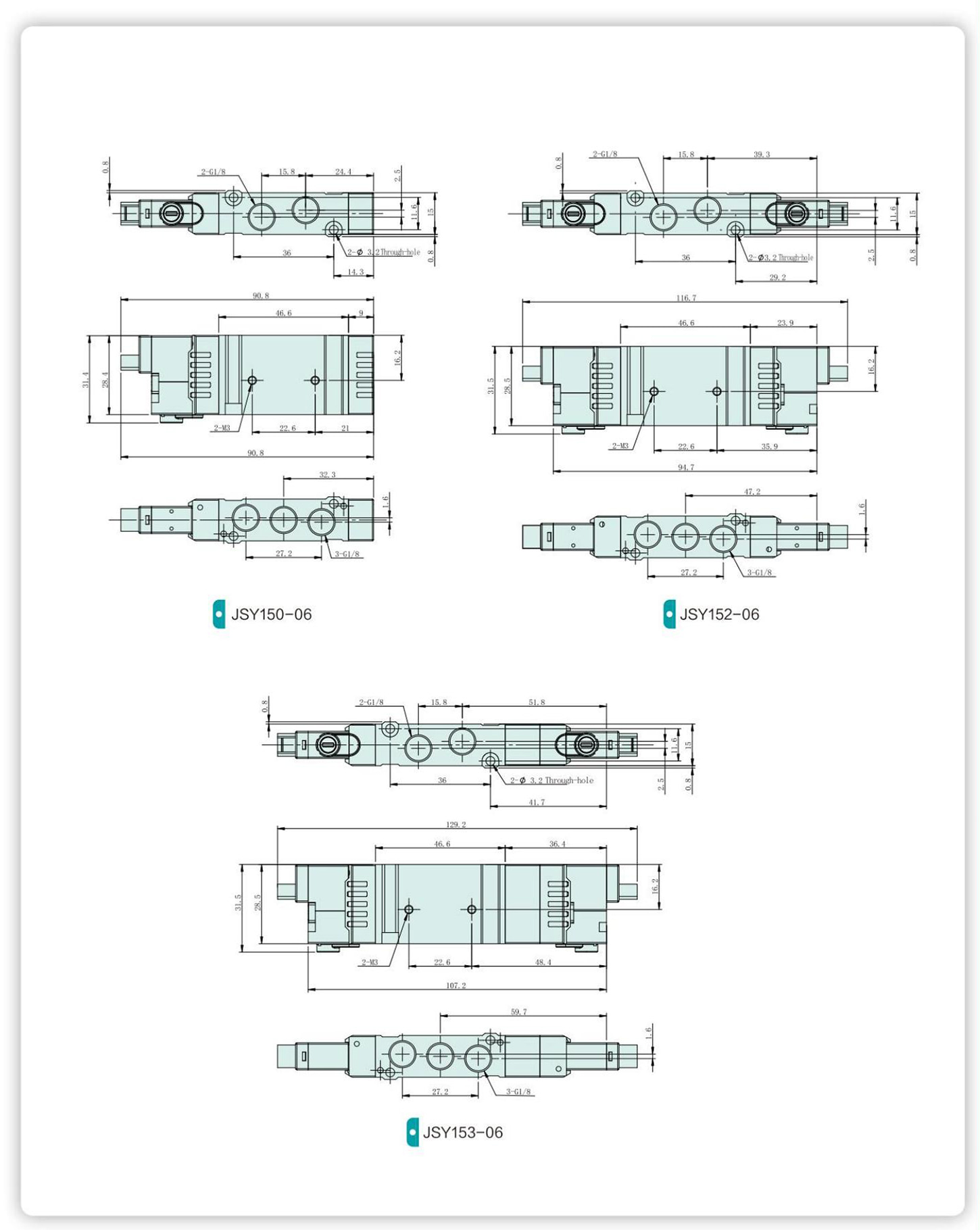

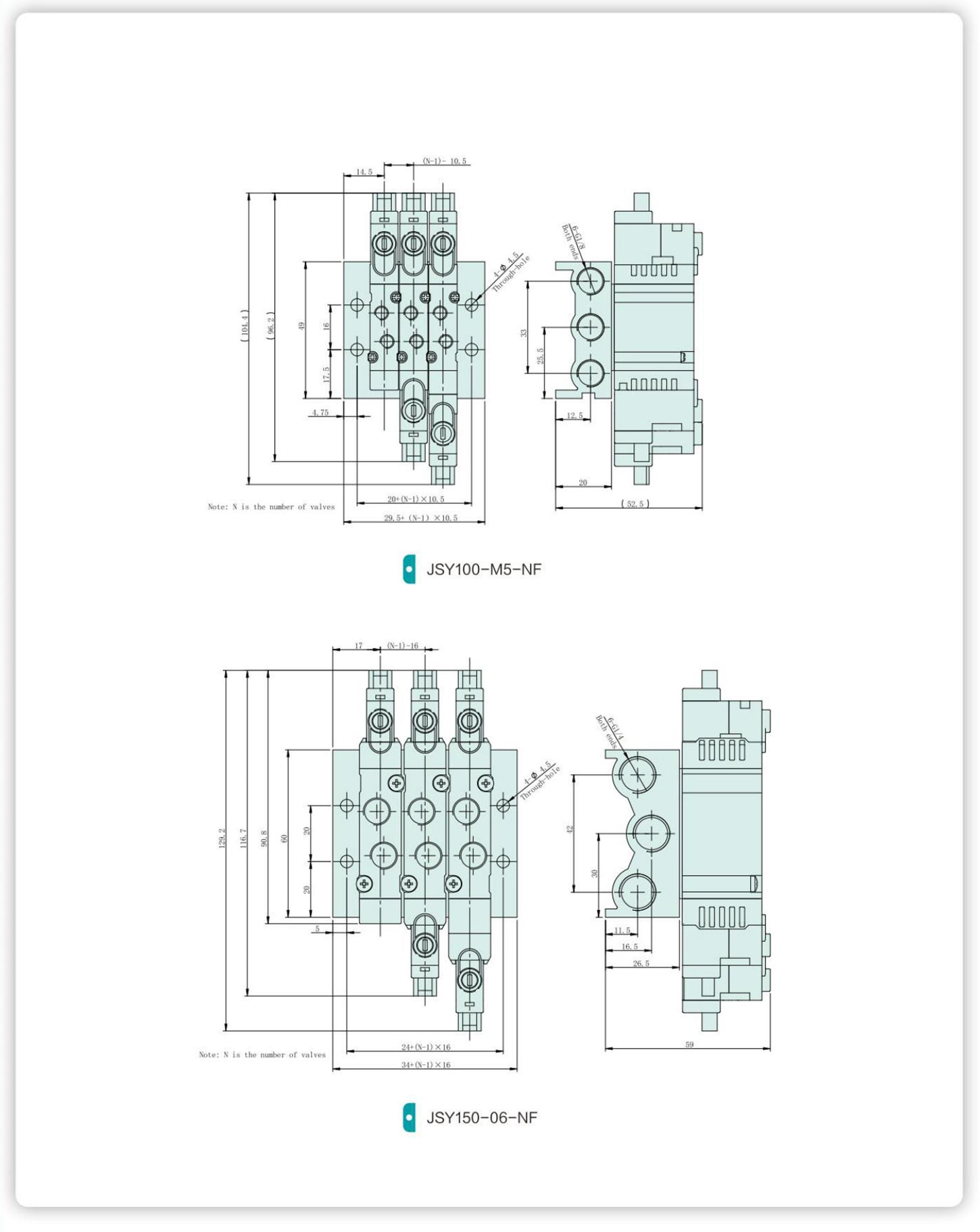

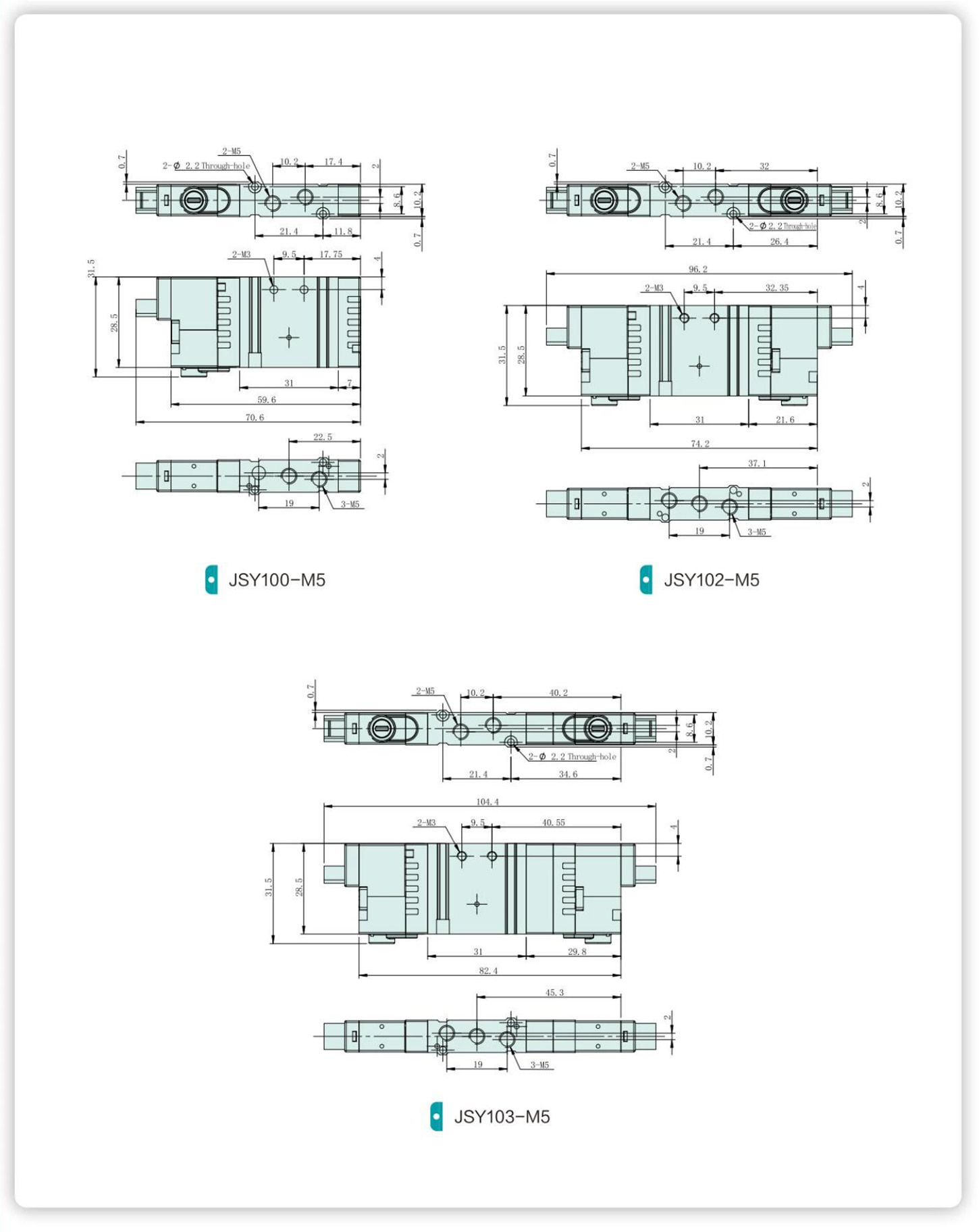

  • Product size

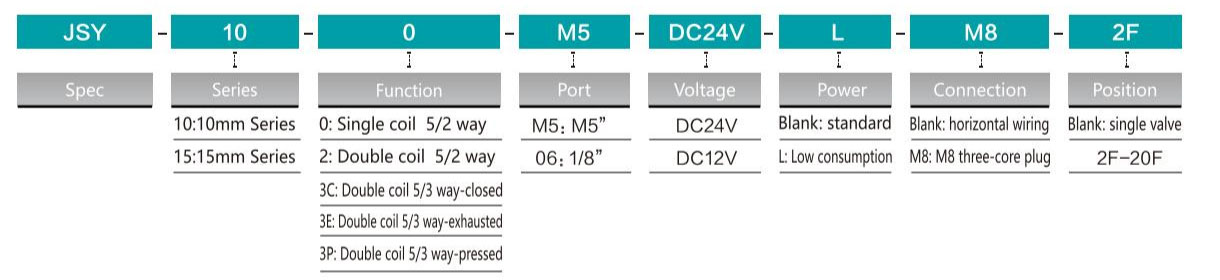

Ordering Code

Specifications

Specifications 10mm series 15mm series

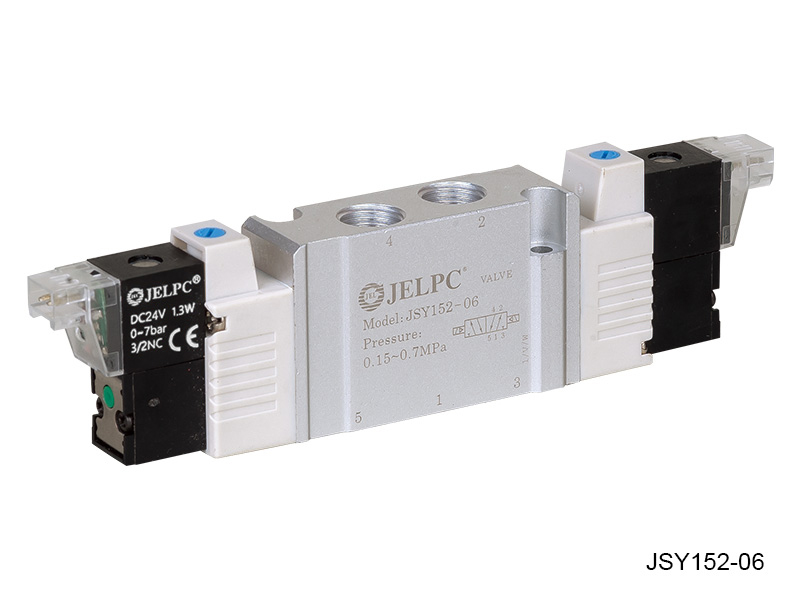

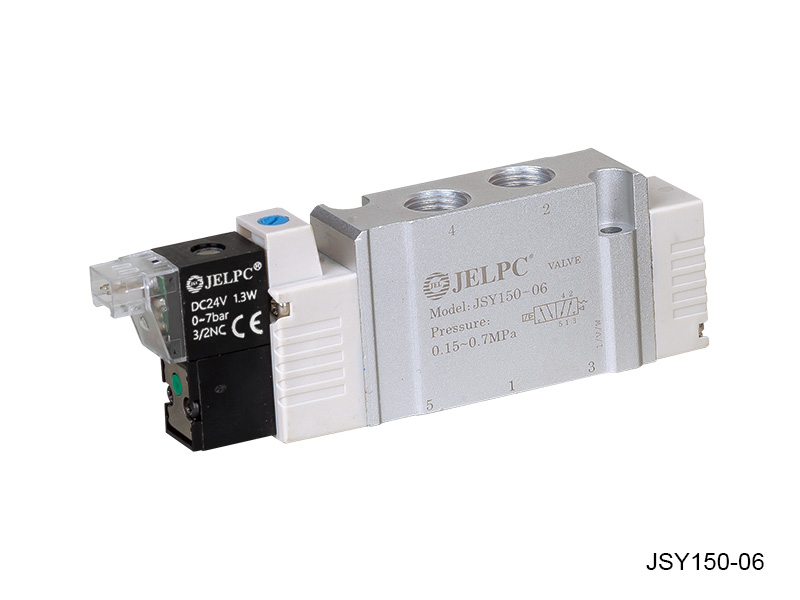

JSY100-M5 JSY102-M5 JSY103-M5 JSY150-06 JSY152-06 JSY153-06
Valve Type 5/2 Way 5/3 Way 5/2 Way 5/3 Way
Port Size  Inlet=Outlet=Exhaust=M5 Inlet=Outlet=Exhaust=G1/8"
CV Value Cv=0.16 Cv=0.13 CV=0.49   CV=0.42
Working Medium   40 Micronfiltered air
Working Pressure 0.15~0.8MPa   0.1~0.8MPa 0.2~0.8MPa   0.15~0.8MPa 0.1~0.8MPa 0.2~0.8MPa
Max Pressure  1.2MPa
Working Temperature  -5°C~50°C
Power Consumption  0.85W
Frequency  5/S

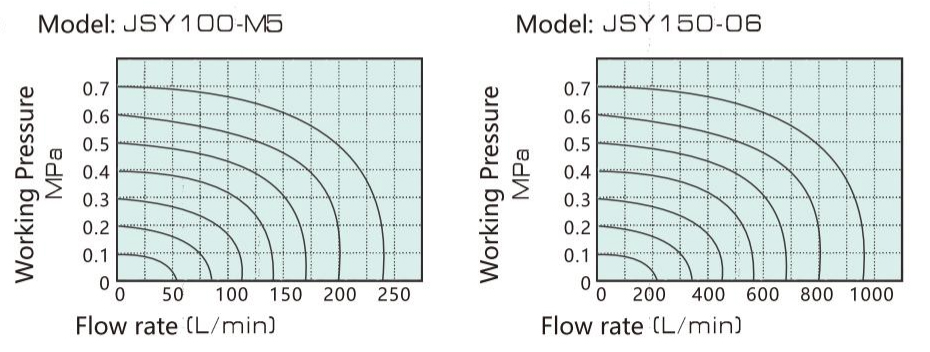

Flow diagram
