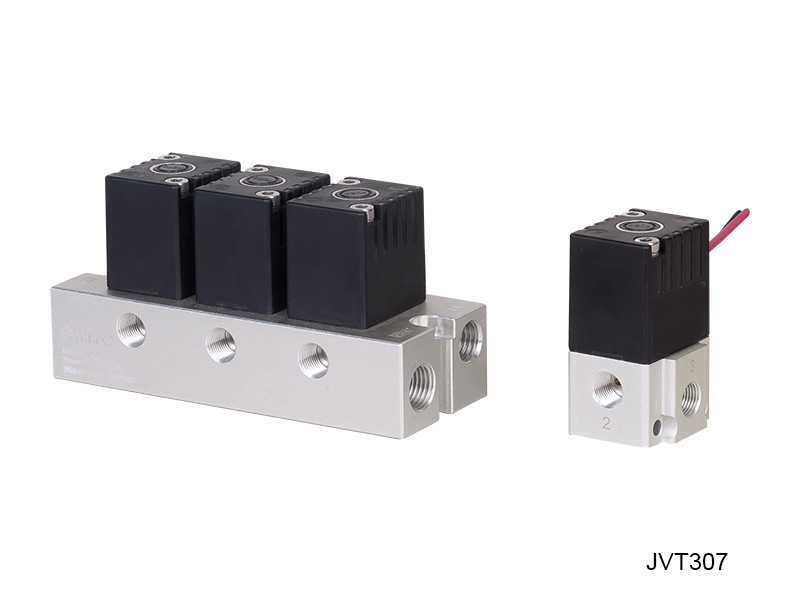

JVT307 High Frequency Valve

JVT307 High Frequency Valve

Features:

1. Direct-acting type, quick response

2. Coaxial direct-acting, good sealing

3. No lubrication required

4. Manual override facilitates machine set up

5. Many voltages available

  • Product parameters

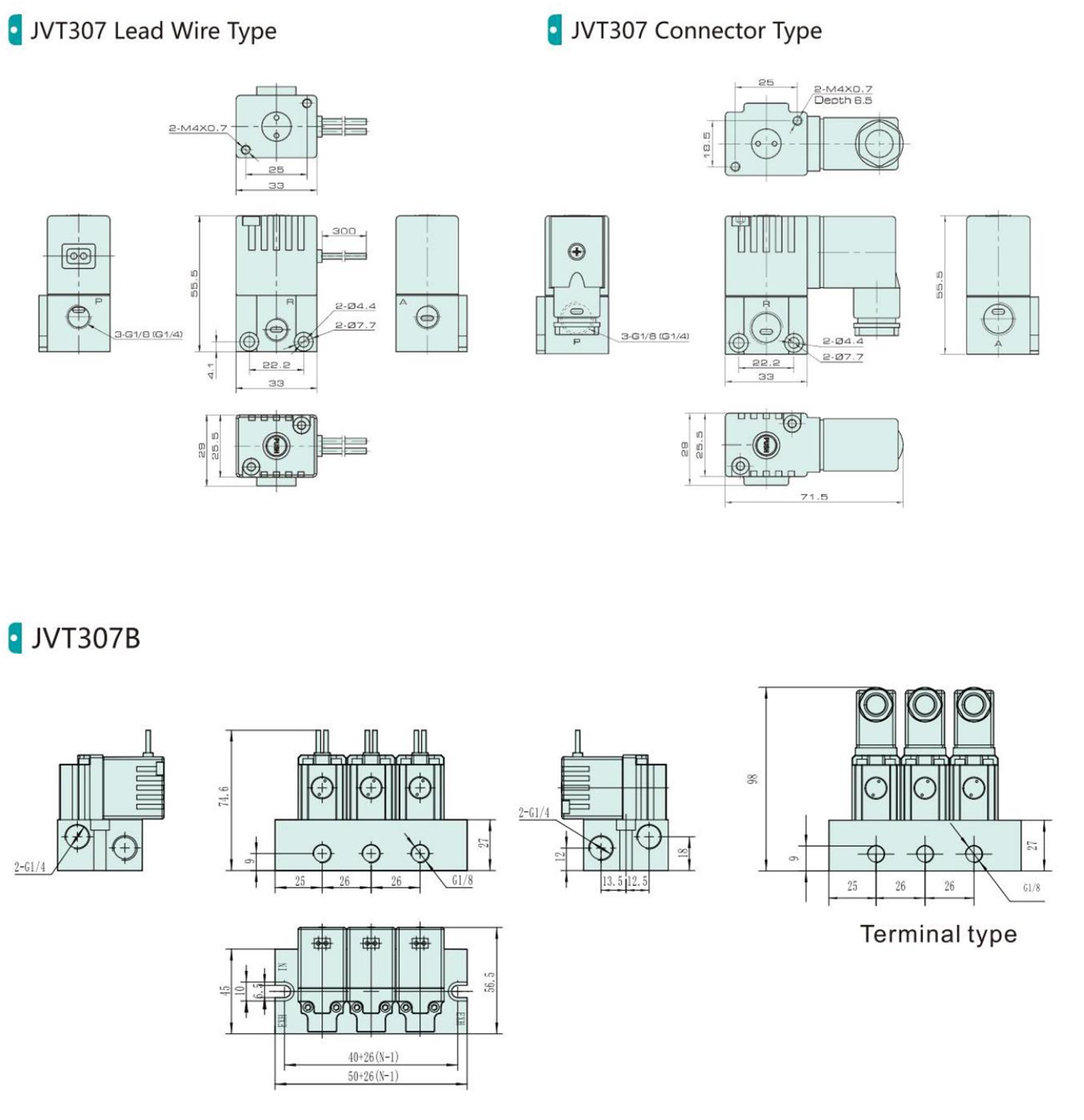

  • Product size

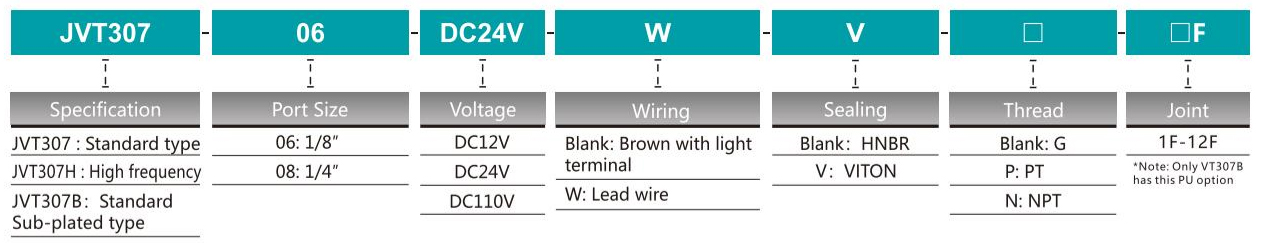

Ordering Code

Specification

Model

JVT307-06

JVT307-08

JVT307B-NF

JVT307H-06

JVT307H-08

Working Medium

Air (40 Micron dry filtered air)

Port Size

Inlet Outlet, Exhaust Port=G1/8"

Inlet, Outlet Exhaust Port=G1/4"

Inlet, Outlet, Exhaust Port=G1/8"

Inlet, Outlet, Exhaust Port=G1/8"

Inlet, Outlet Exhaust Port=G1/4"

Position

3/2 way

Flow

180L/min

120L/min

Lubrication

No Need

Working Pressure

0 〜1.0MPa

Max Pressure

1.5MPa

Working Temperature

-20〜80℃

Body Materials

Aluminum

Standard Voltage

DC12V、DC24V、DC110V

Operating Voltage Range

DC: ±10%

Power Consumption

DC: 4.5W

DC7.2W

Connector Protection

IP65

Temperature class Wiring/Connector

H class

Cable / Lead Wire or DIN Connector

Response Time

12ms

7ms

Switching Frequency

40 Cycles/Sec

70 Cycles/Sec
