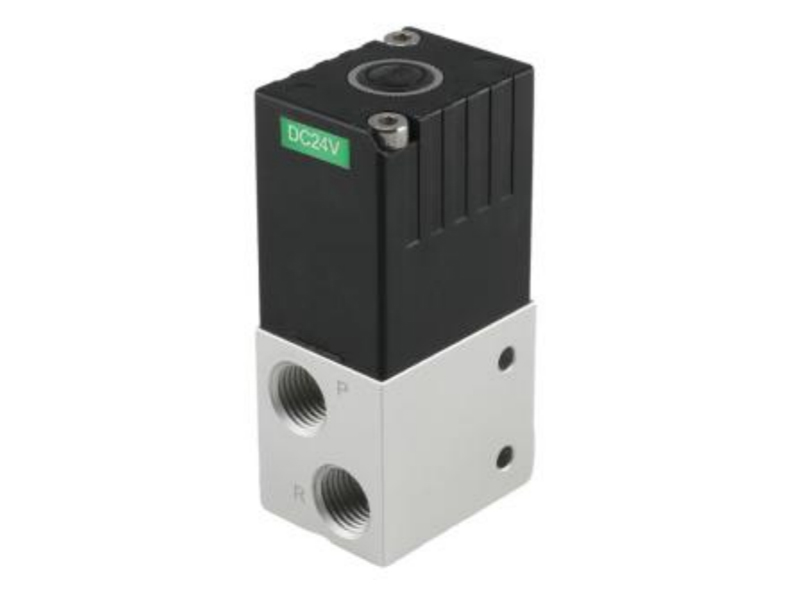

JVT317 Solenoid Valve (Direct Operated)

JVT317 Solenoid Valve (Direct Operated)

Features:

1. Direct-acting type, quick response;

2. Coaxial direct-acting, good sealing;

3. No lubrication required;

4. Manual override facilitates machine set up;

5. Many voltages available.

  • Product parameters

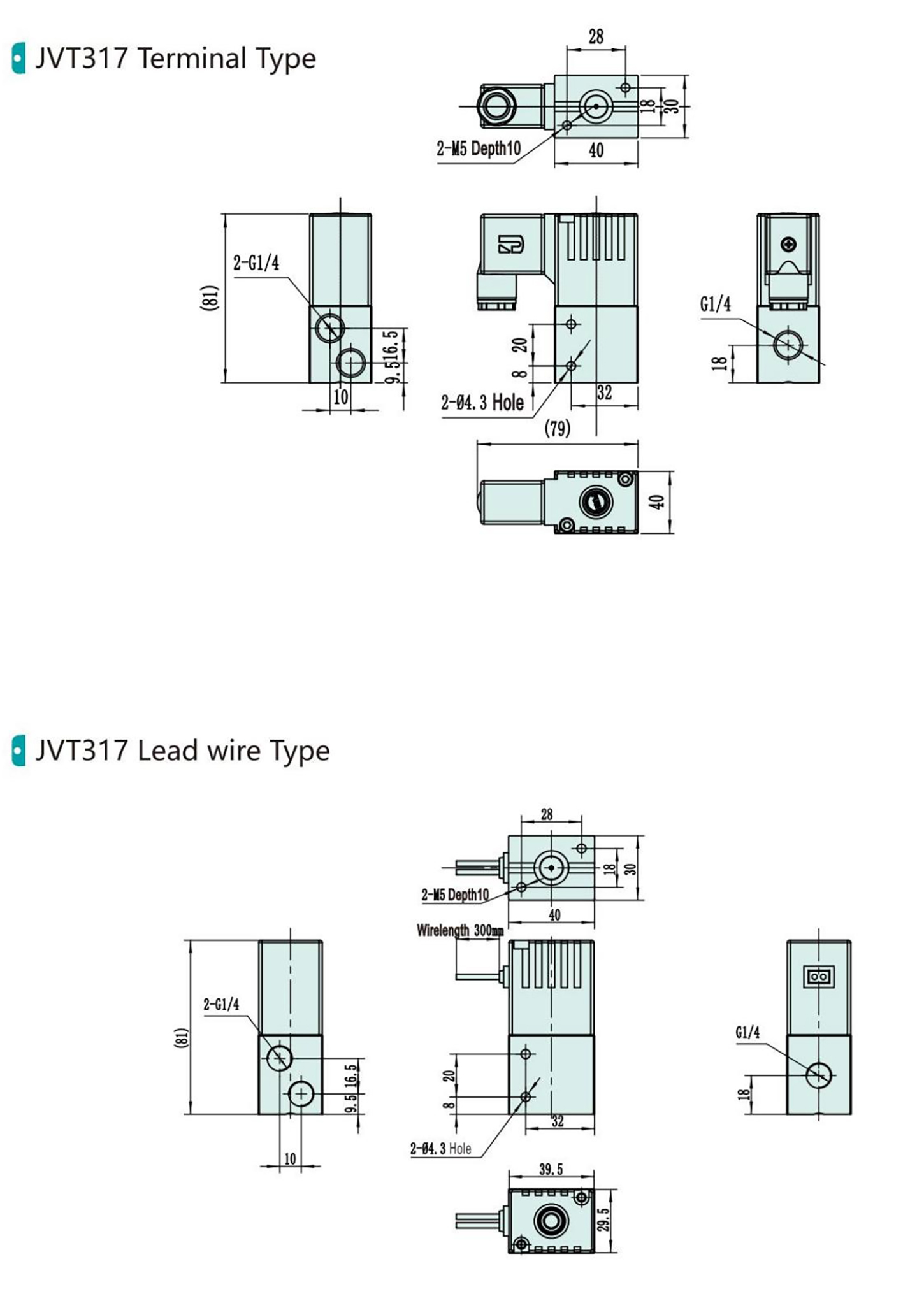

  • Product size

Ordering Code

Specification

  Model JVT317
  Working Medium Air(40 Micron dry filtered air)
  Port Size Inlet, Outlet, Exhaust Port=G1/4"
  Position 3/2 way
  Flow 400L/min
  Lubrication No Need
  Working Pressure 0~1.0MPa
  Max Pressure 1.5MPa
  Working Temperature -10~80℃
  Body Materials  Aluminum
  Standard Voltage DC12V、DC24V
  Operating Voltage Range ±10%
  Power Consumption 6.3W
  Connector Protection IP65
  Temperature class H class
  Wiring/Connector Cable/Lead Wire or DIN Connector
  Switching Frequency 5 Cycles/Sec
