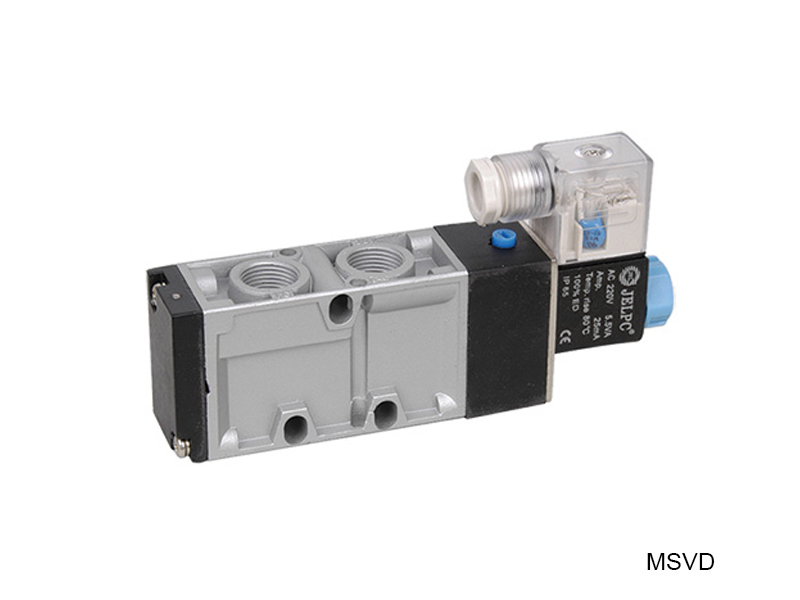

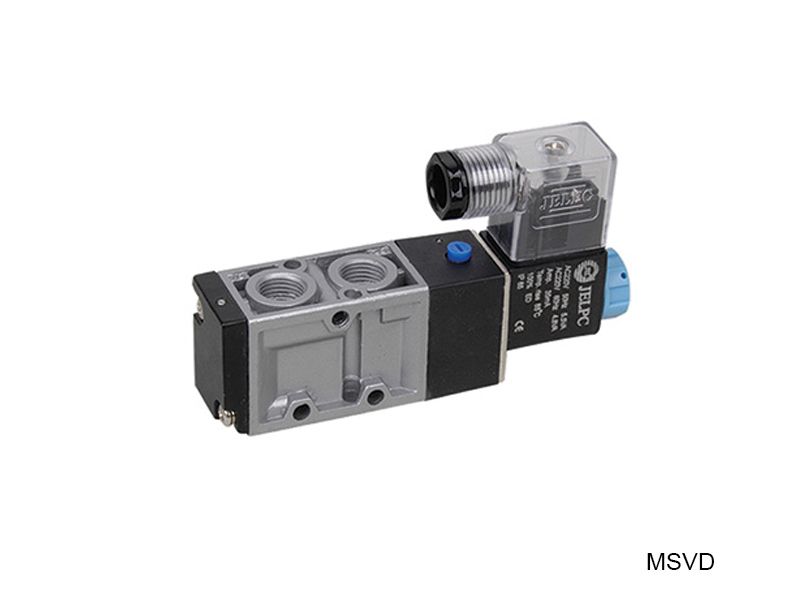

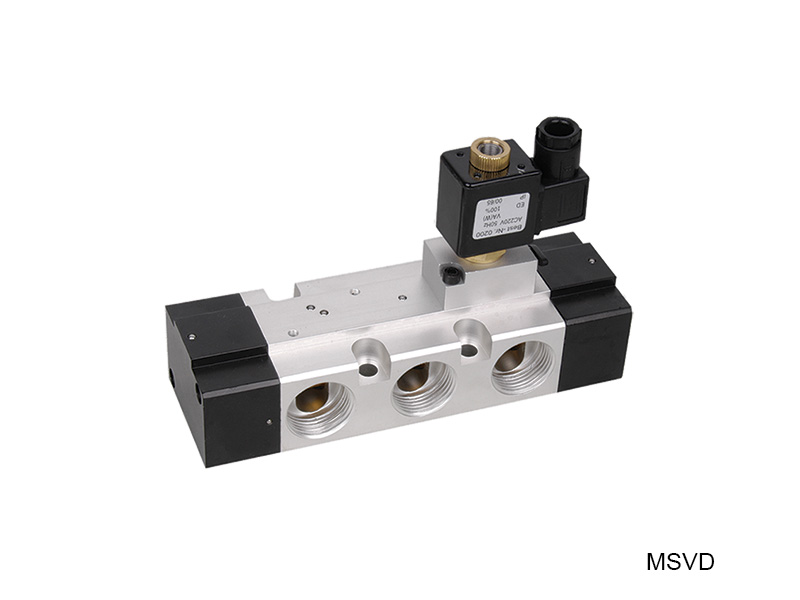

MVSD Series Solenoid Valve

MVSD Series Solenoid Valve

  • Product parameters

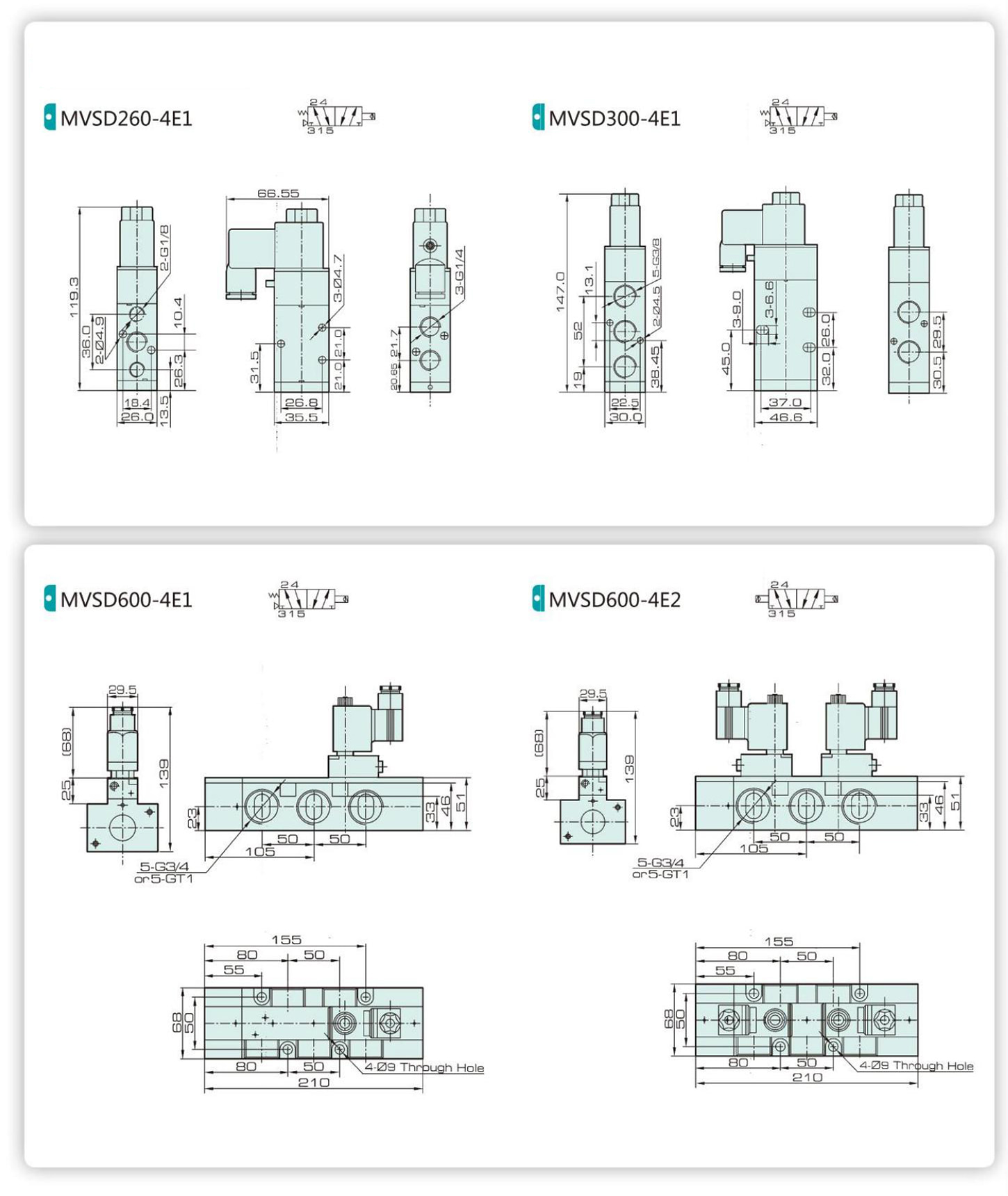

  • Product size

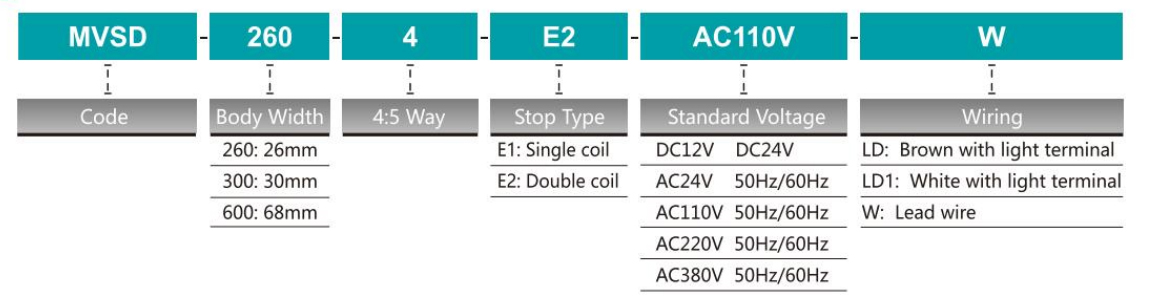

Ordering Code

Specification

Item MVSD-260-4E1 MVSD-260-4E2 MVSD-260-4E2(C.P.E) MVSD-300-4E1 MVSD-300-4E2 MVSD-300-4E2(C.PE) MVSD-600-4E1 MVSD-600-4E2
No.of Position 2  2  3  2  2  3  2
No.of Port 5  5  5  5
Port Size G1/4" G3/8" G3/4" G1"
Working Medium Air
Working Pressure 0.2~0.7MPa 0.3~0.7MPa 0.2～0.7MPa 0.3~0.7MPa 0.2~0.7MPa
Max.Test Pressure 10kgf/cm²
Effective Cross
Section Area		 18mm² 16mm² 35mm² 25mm² 20:115mm²
25:135mm²
Ambient
Temperature		 -20~70℃(No Freezing)
Power
Consumption		 AC:5.5VA     DC:4.8W AC:13VA     DC:10W
Operating Voltage
Tolerance		 ±10%
Insulation Class IP 65, F Class
