VF Series Solenoid Valve

VF Series Solenoid Valve

  • Product parameters

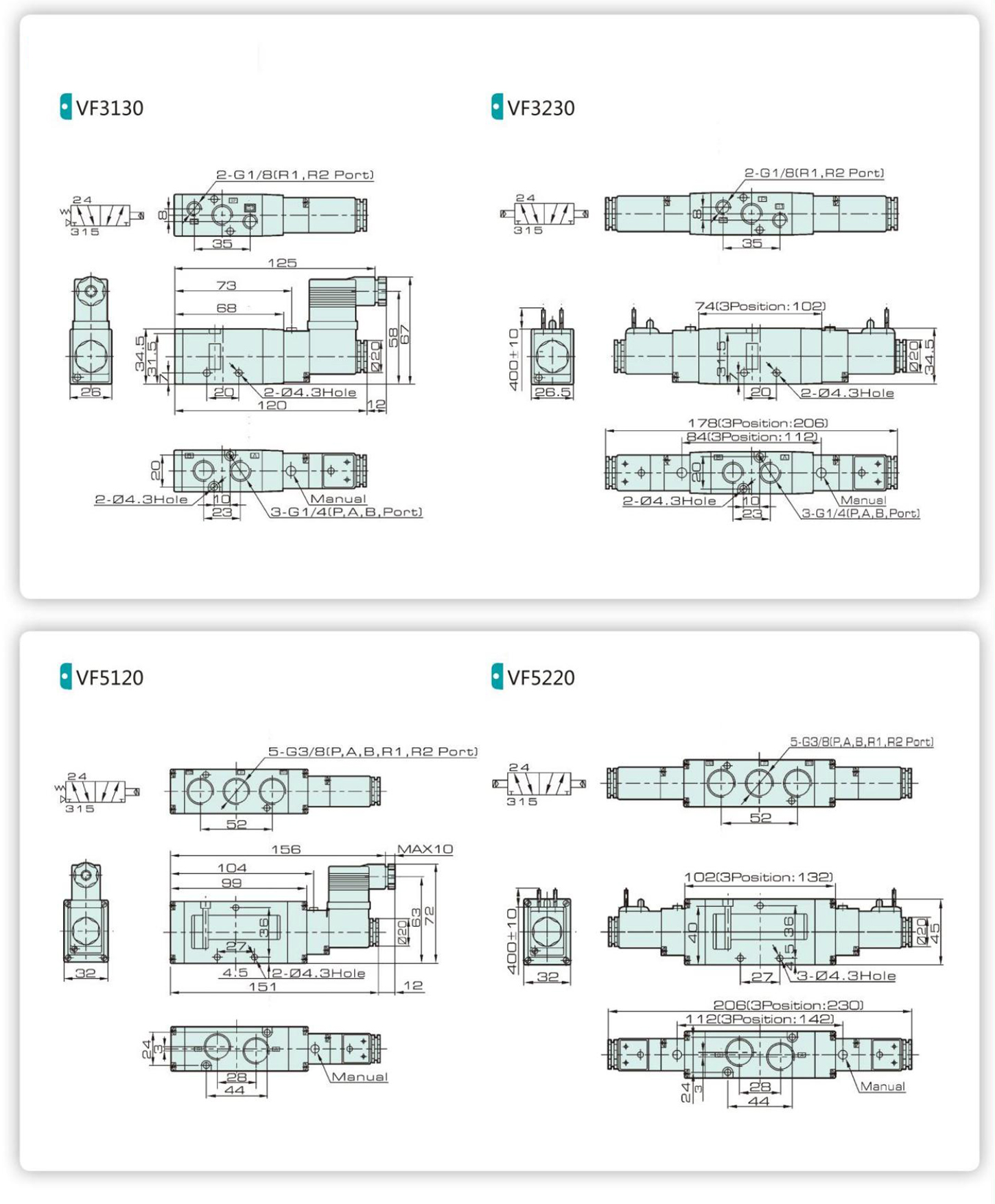

  • Product size

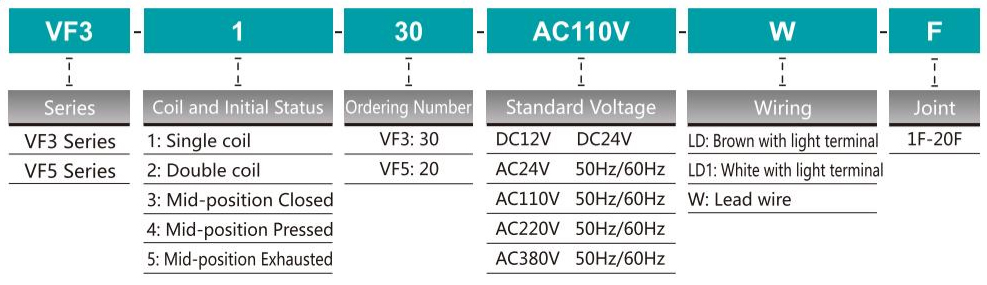

Ordering Code

Specification

Model

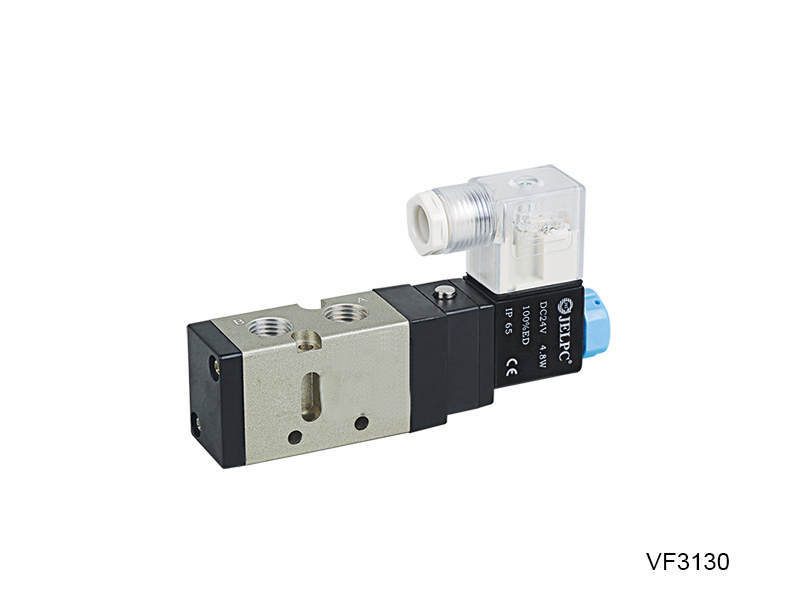

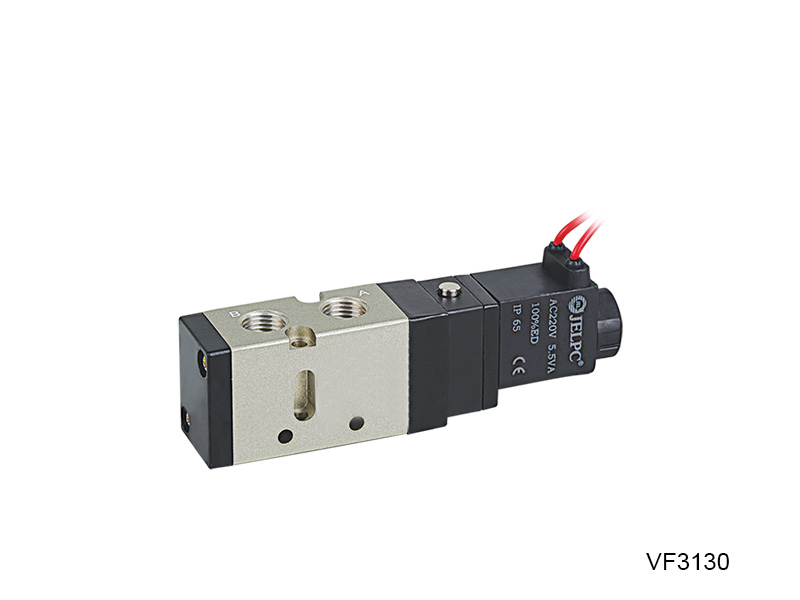

VF3130

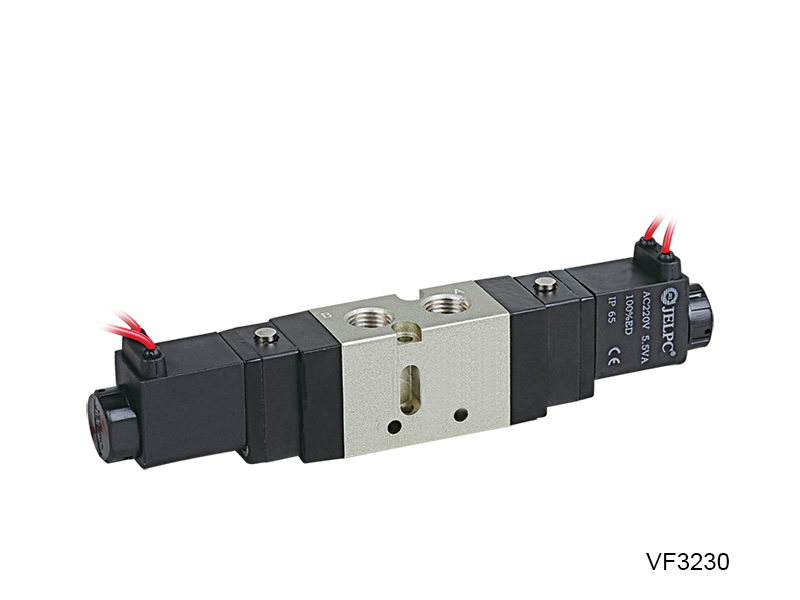

VF3230

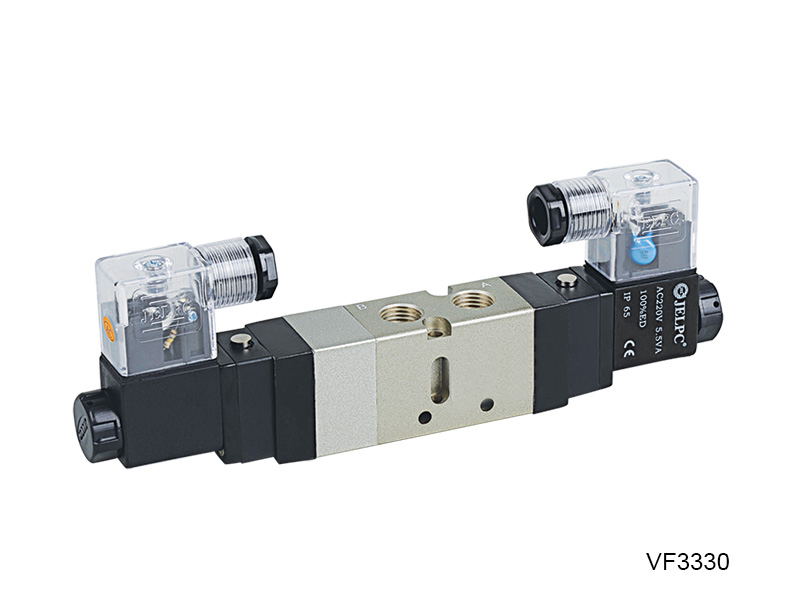

VF33(4/5)30

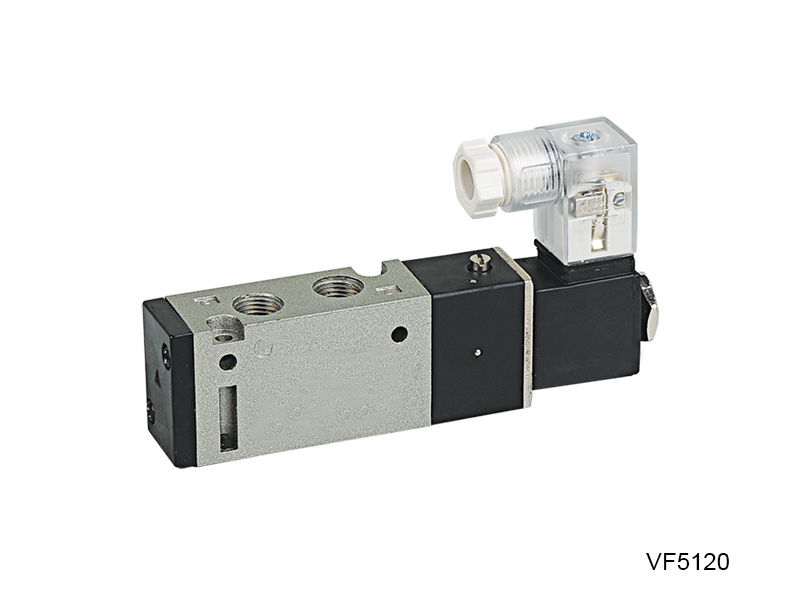

VF5120

VF5220

VF53(4/5)50

Valve Type

5/2 way

5/3 way

5/2 way

5/3 way

Effective Cross Section Area

16mm2(CV=0.89)

12mm2(CV=0.67)

25mm2(CV=1.40)

18mm2(CV=1.00)

Working Medium

40 Micron Filtered Air

Operation

Internal Piloted

Working Pressure

0.15 〜0.8MPa

Max. Test Pressure

1.2MPa

Ambient Temperature

-20~70°C

Operating Voltage Tolerance

±10%

Power Consumption

AC: 5.5VA DC: 4.8W

Protect Class

F Class, IP 65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Switching Frequency

5 Cycles / Sec.

Response Time

0.05 Sec.

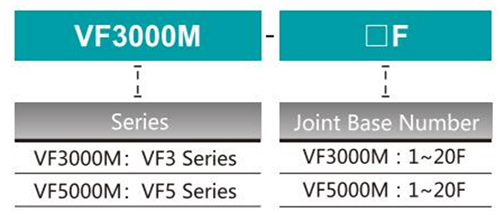

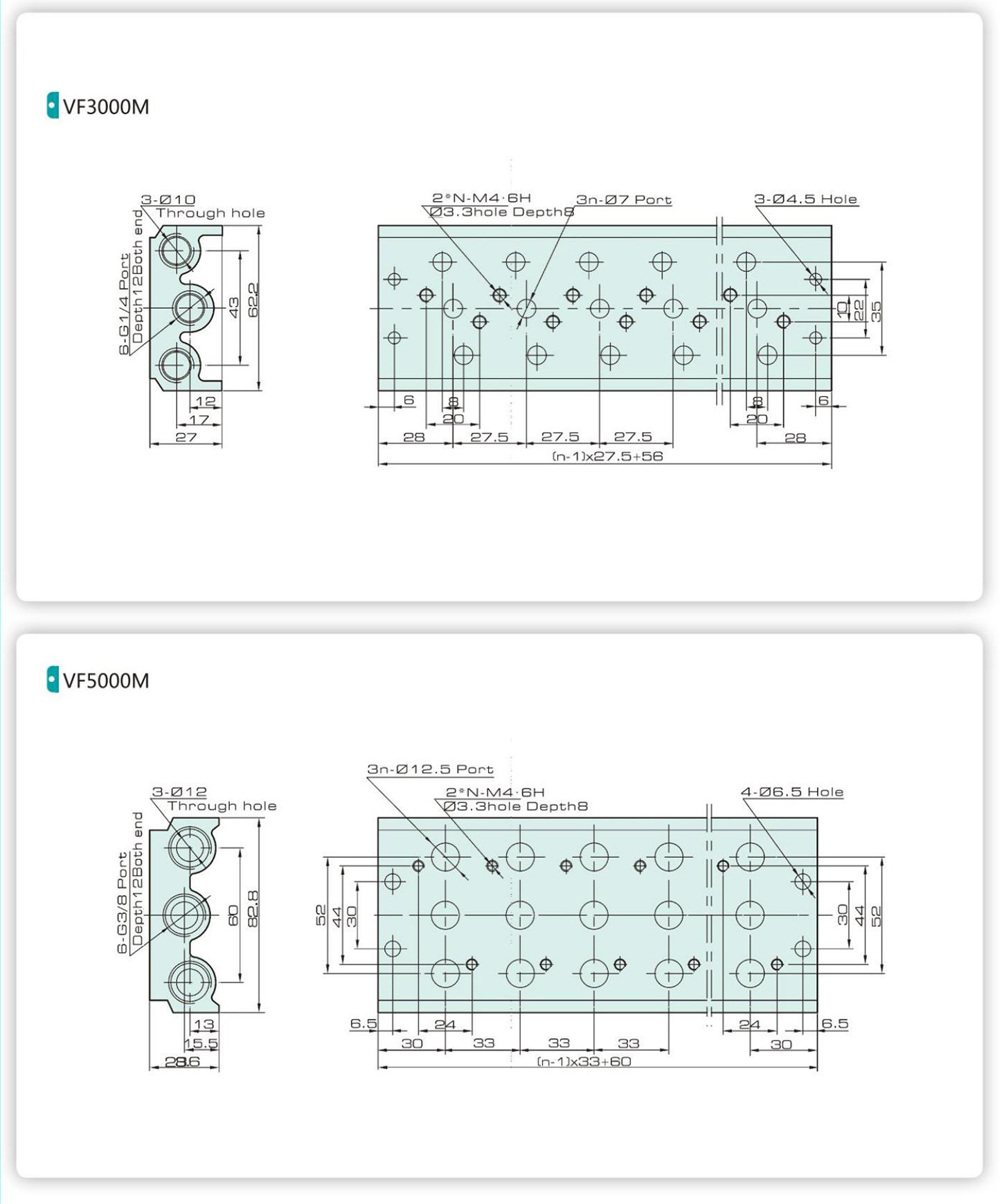

Base Ordering Code
