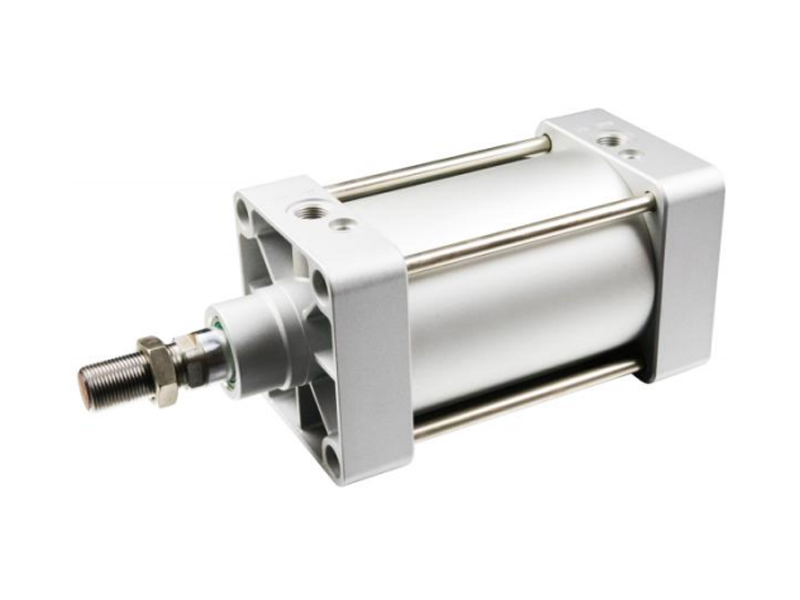

Large Size SQ Series Standard Cylinder (IS015552 Standard)

Large Size SQ Series Standard Cylinder (IS015552 Standard)

Feature:

1. The cylinder is in accordance with the ISO15552.
2. The piston seal adopts two Y type one-way seals with compensation function, long service life and low starting pressure.
3. The cylinder cushion adjustment is smooth and the cushioning distance is long.
4. The cylinder bearings and wear rings have long distances and better lateral load performance.
5. The front and rear cover and piston adopt high pressure casting technology, with beautiful appearance and stronger strength,

  • Product parameters

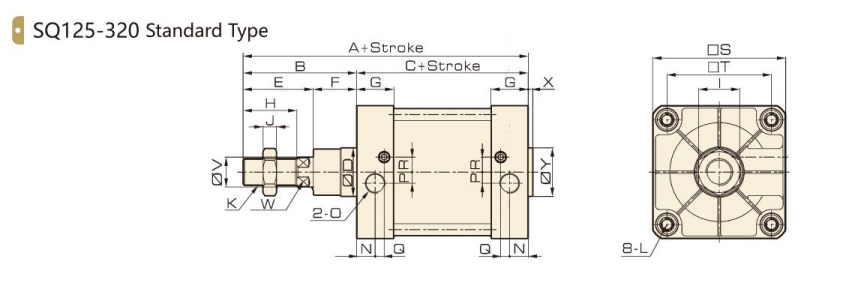

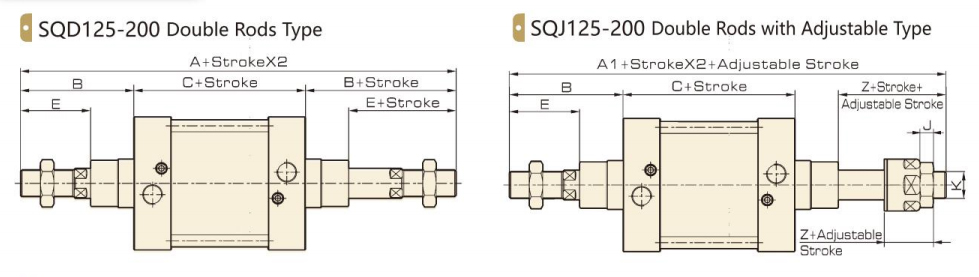

  • Product size

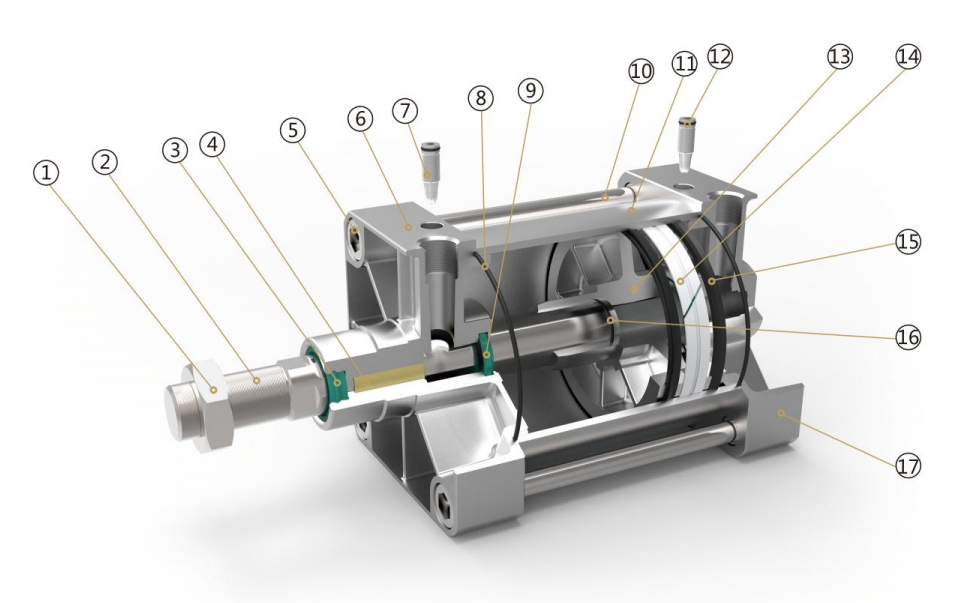

Internal Structure

Parts

Number Name Number Name
1  Hexagon nut 10  Tie Rod
2  Piston rod 11  Barrel
3  Shaft seal 12  O ring
4  DU Bearing 13  Piston
5  Cover screw 14  Anti-friction ring
6  Front cover 15  Piston seal
7  Cushion adjust screw 16  O ring
8  O ring 17  Back cover
9  Cushion seal

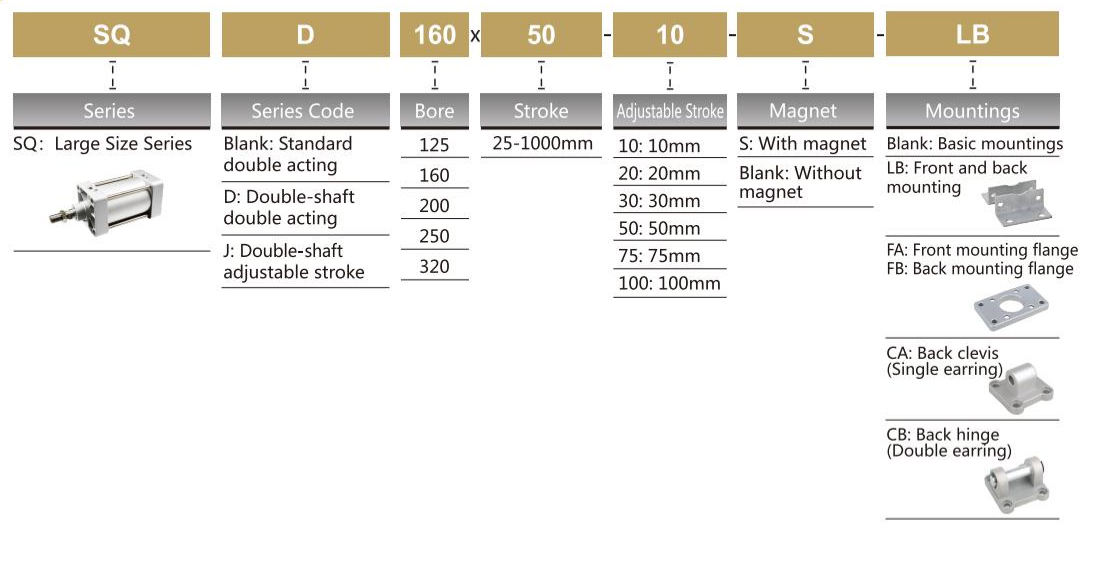

Ordering Code

*Sensor model JEL-11, please refer to P173 for the specific ordering code.


Specification

Bore (mm) 125  160  200  250  320
Operation Double Acting
Working Medium Air
Mounting Basic FA FB CA CB LB
Operating Pressure Range 0.1~1MPa
Proof Pressure 1.5MPa
Operating Temperature Range -20~70℃
Operating Speed Range 30-500mm/s
Cushion Adjustable Cushion
Adjustable Cushion Stroke 40mm 50mm
Port Size G1/2" G3/4” G1"
