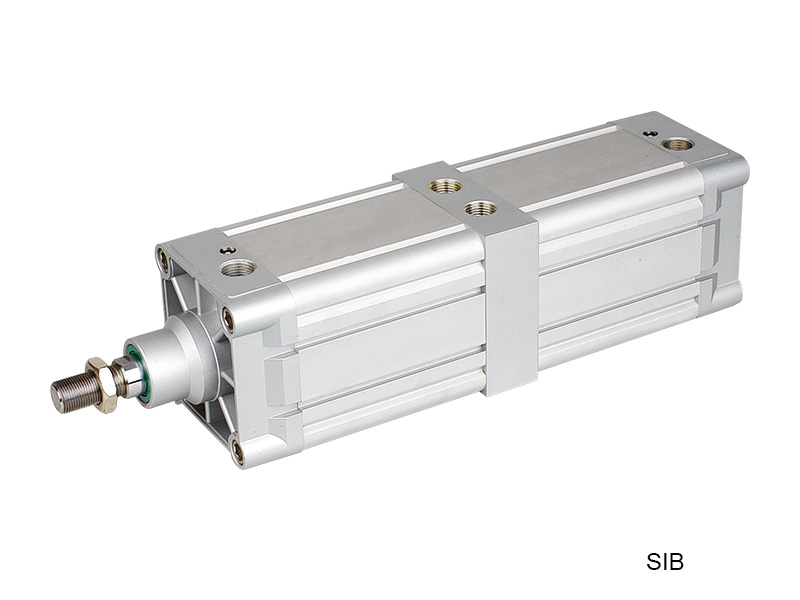

Feature:
SIB series booster cylinder is the combination of two IS015552 standard cylinders which share the same bore size and stroke. lts push and restoring force is two times of the standard cylinder. Two cylinders are linked by the connect base whose material is the same as the cylinder.
It is compact in structure and easy for installation.

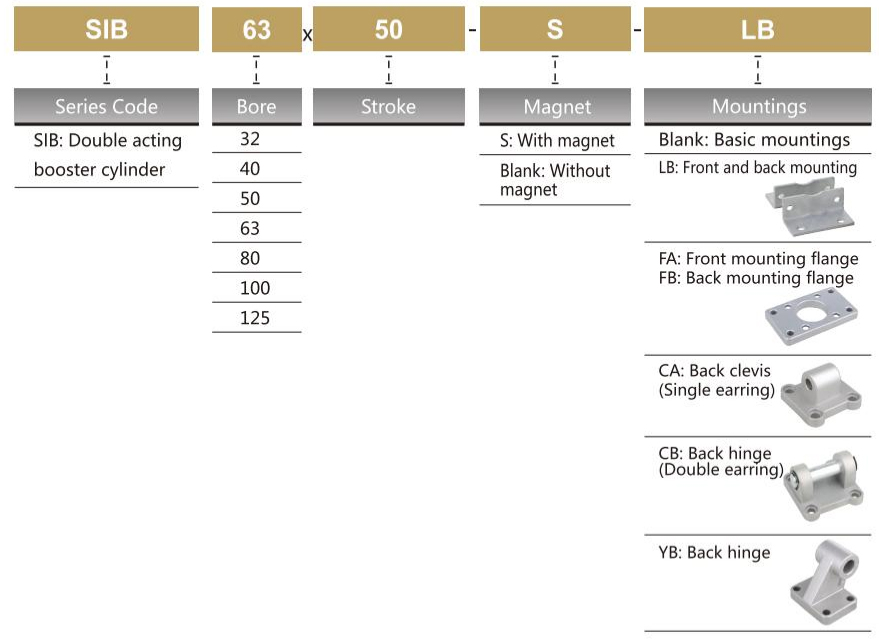

Ordering Code
*Sensor model JEL-30,please refer to P173 for the specific ordering code.
Specification
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Operation | Double Acting | ||||||
| Working Medium | Air | ||||||
| Mounting | Basic FA FB CA CB LB YB | ||||||
| Operating Pressure Range | 1~9.0kgf/cm² | ||||||
| Proof Pressure | 13.5kgf/cm² | ||||||
| Operating Temperature Range | -20~80℃ | ||||||
| Operating Speed Range | 50～500 mm/s | ||||||
| Cushion | Air Cushion | ||||||
| Adjustable Cushion Stroke | 20mm | 26mm | |||||
| Port Size | G1/8" | G1/4" | G3/8" | G1/2" | |||

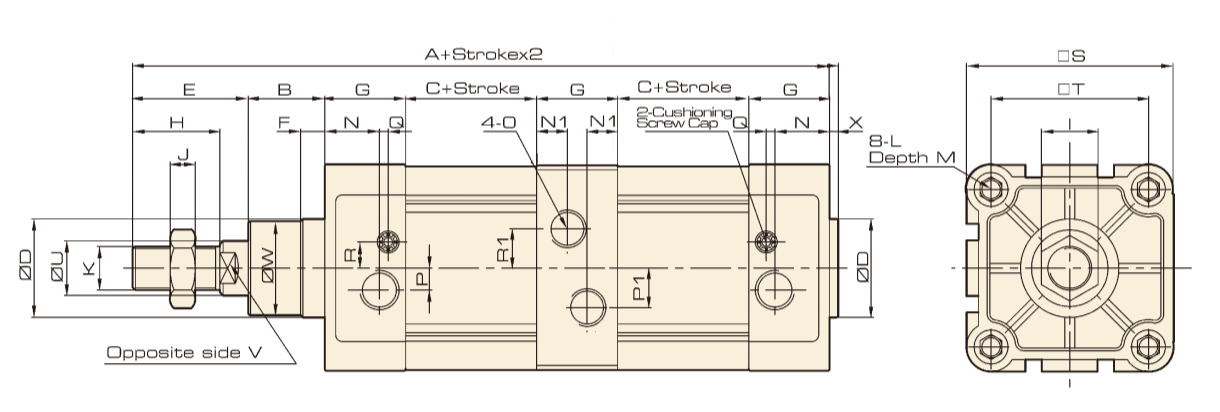

Overall Dimension
Dimension
|
Model/Symbol |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
|
32 |
214 |
16 |
43 |
30 |
33 |
10 |
25 |
22 |
17 |
6 |
M10X1.25 |
M6 |
9.5 |
|
40 |
236.5 |
20 |
45 |
35 |
34 |
10 |
29.5 |
24 |
17 |
7 |
M12X1.25 |
M6 |
9.5 |
|
50 |
252 |
27 |
41 |
40 |
42.5 |
10 |
32 |
32 |
23 |
8 |
M16X1.5 |
M6 |
9.5 |
|
63 |
278 |
26 |
49 |
45 |
42 |
10 |
36 |
32 |
23 |
8 |
M16X1.5 |
M8 |
9.5 |
|
80 |
308 |
35 |
52 |
45 |
53 |
10 |
37 |
40 |
26 |
10 |
M20X1.5 |
M10 |
11.5 |
|
100 |
339 |
40 |
59 |
55 |
52 |
10 |
39 |
40 |
26 |
10 |
M20X1.5 |
M10 |
11.5 |
|
125 |
399 |
46.5 |
72 |
60 |
71 |
10 |
43.5 |
54 |
40 |
10 |
M27X2 |
M12 |
15.5 |
|
Model/Symbol |
N |
N1 |
O |
P |
PI |
Q |
R |
R1 |
S |
T |
U |
V |
W |
X |
|
32 |
15 |
7.5 |
G1/8 |
5 |
6 |
3 |
6.5 |
6 |
45 |
32.5 |
12 |
10 |
28 |
4 |
|
40 |
17.5 |
9.5 |
G1/4 |
7 |
7.5 |
3 |
7 |
7.5 |
52 |
38 |
16 |
13 |
33 |
4 |
|
50 |
20 |
16 |
G1/4 |
7 |
10.5 |
3 |
9 |
10.5 |
65 |
46.5 |
20 |
17 |
38 |
4 |
|
63 |
22 |
13 |
G3/8 |
8 |
13 |
5 |
9 |
13 |
76 |
56.5 |
20 |
17 |
38 |
4 |
|
80 |
23 |
14 |
G3/8 |
10 |
18 |
5 |
12 |
18 |
94 |
72 |
25 |
22 |
43.5 |
4 |
|
100 |
26 |
19.5 |
G1/2 |
10 |
20 |
5 |
14 |
20 |
112 |
89 |
25 |
22 |
47 |
4 |
|
125 |
29 |
21.75 |
G1/2 |
10 |
30 |
5 |
14 |
30 |
134 |
110 |
32 |
27 |
53 |
6 |
