Super Economical Type SQ Series Standard Cylinder (IS015552 Standard)

Super Economical Type SQ Series Standard Cylinder (IS015552 Standard)

Feature:

SQ Series cylinder is a new super economical cylinder patent product. Body and covers are latest innovated, with new structure, smart, cost reduced, material saved. The installation
dimension is the same as Sl, conforms to lSO 15552 standard.

  • Product parameters

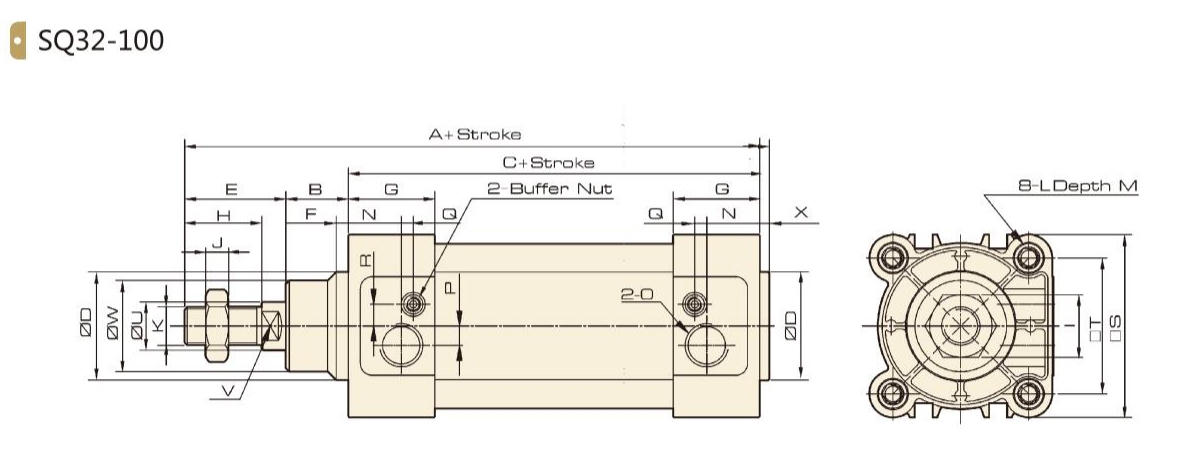

  • Product size

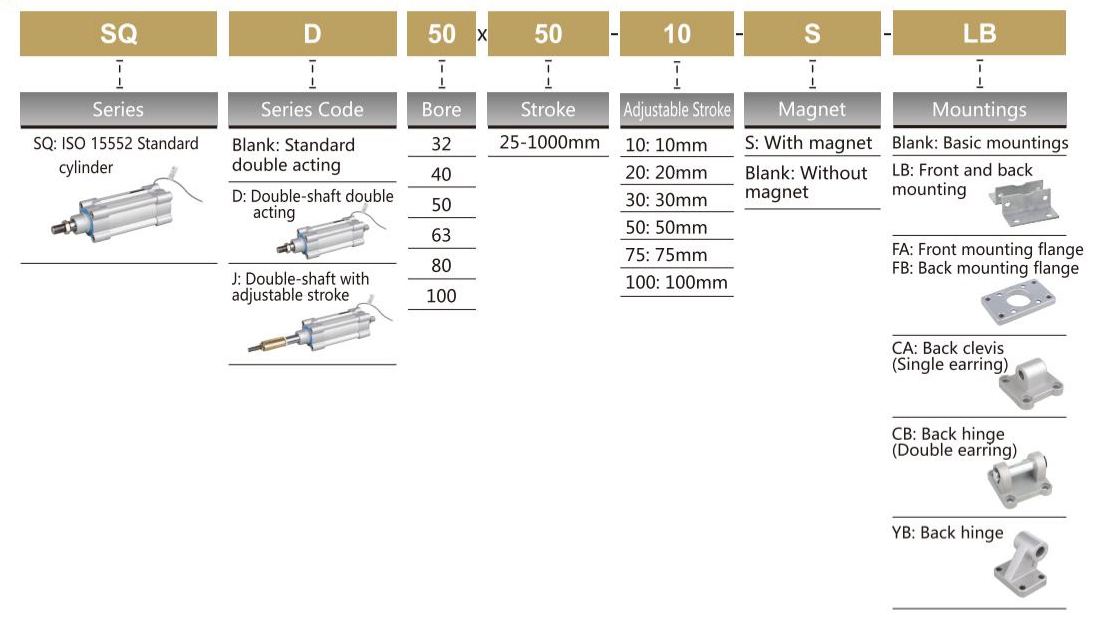

Ordering Code

*Sensor model JEL-30, please refer to P173 for the specific ordering code.


Specification

Bore (mm)

32

40

50

63

80

100

Operation

Double Acting

Working Medium

Air

Mounting

Basic FA FB CA CB LB VB

Operating Pressure Range

0.1-1 MPa

Proof Pressure

1.5MPa

Operating Temperature Range

-20~70°C

Operating Speed Range

50〜800mm/s

Cushion

Adjustable Cushion

Adjustable Cushion Stroke

20mm

26mm

Port Size

G1/8"

G1/4"

G3/8"

G1/2"
