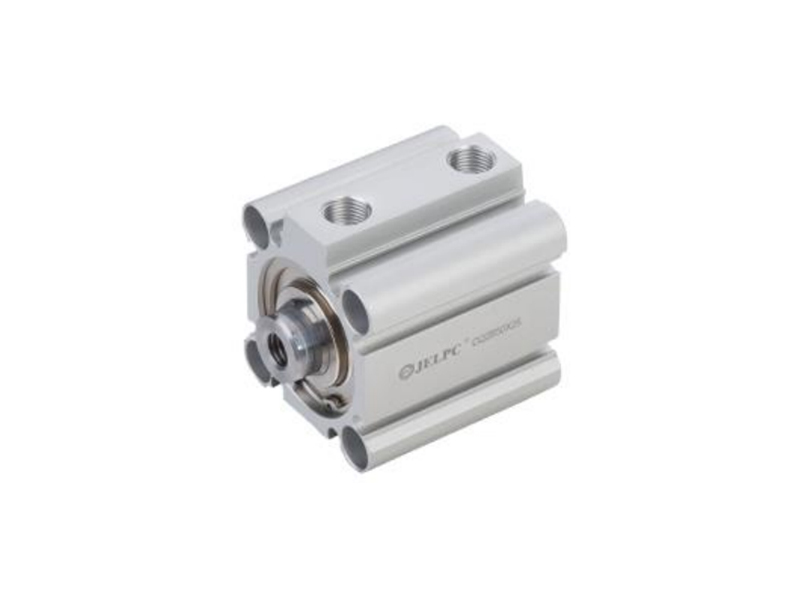

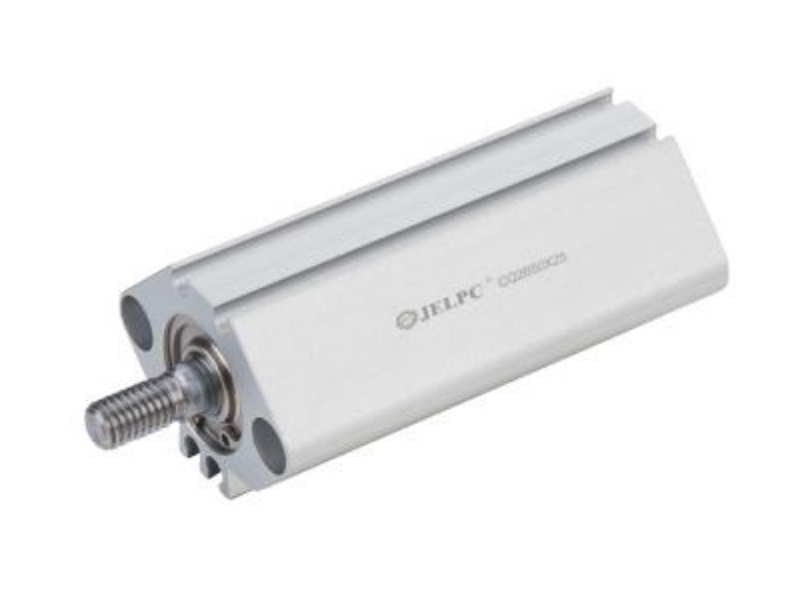

CQ2 Series Compact Cylinder

Features:

1. The adaptability of the product to various applications and environments has been improved, and adopts precision polished piston rod to improve the service life of the front
dust ring.

2. Adjust the structure to the best state and ensure smooth operation of the product.

3. New piston rod and body riveting process to improve product texture.

4. Cooperate with enterprise color planning, endow it with new enterprise color system and appearance details.

Product parameters
Product size

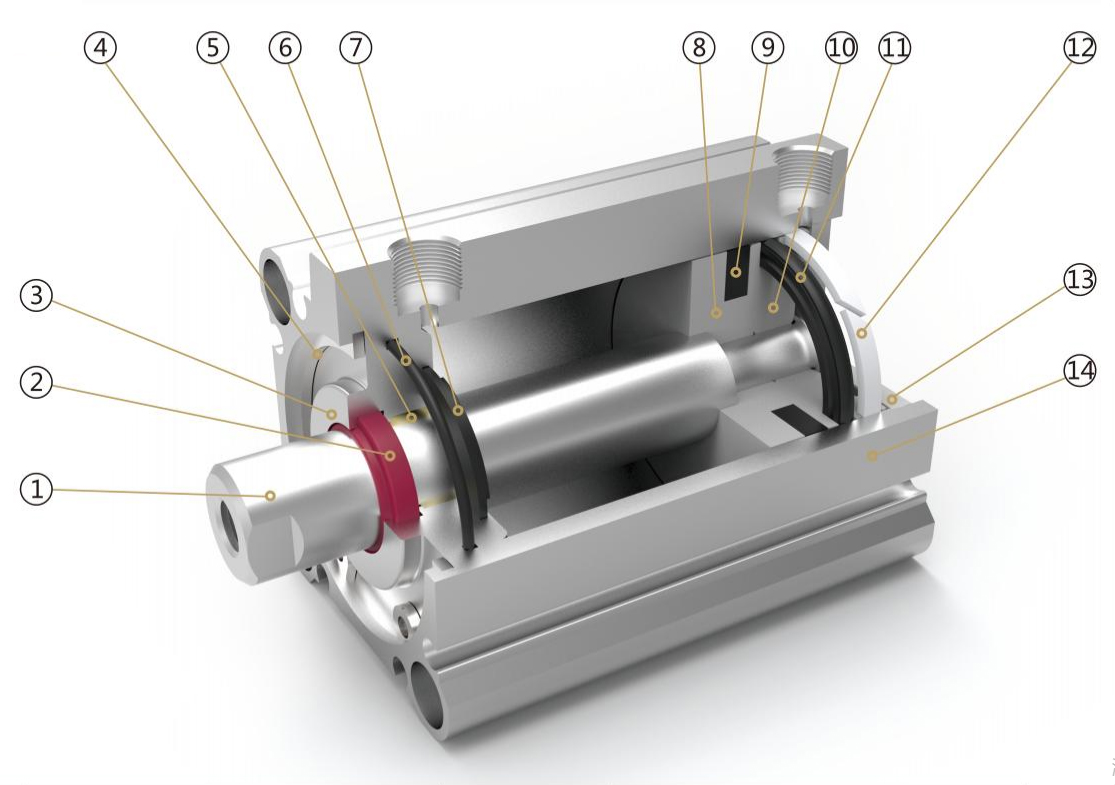

Internal Structure

Parts

Number	Name	Number	Name
1	Piston rod	8	Piston
2	Shaft seal	9	Magnet
3	Front cover	10	Magnet base
4	C clip	11	Piston seal
5	DU bearing	12	Anti-friction seal
6	O ring	13	Back cover
7	Anti-collision gasket	14	Body

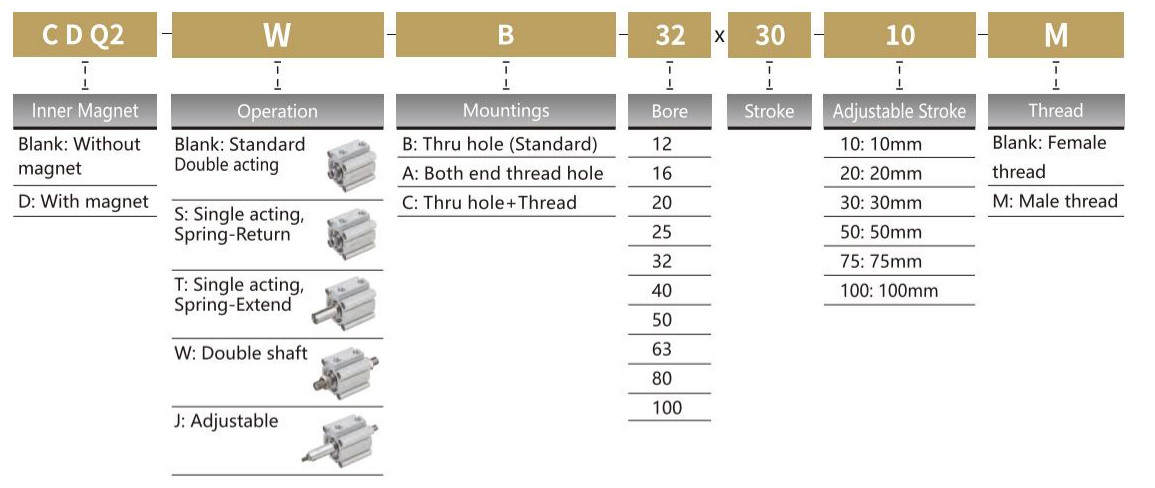

Ordering Code

*Sensor model JEL-07,please refer to P173 for the specific ordering code.

Specification

Bore (mm)		12	16	20	25	32	40	50	63	80	100
Operation		Double Acting
		Single Acting Spring-out/Single Acting Spring-in								-
Working Medium
Operating Pressure Range	Double Acting	0.1~1.0MPa
	Single Acting	0.2~0.9MPa								-
Proof Pressure		1.5MPa
Operating Temperature Range		-20~80℃
Operating Speed Range	Double Acting	30~500mm/s					30~350mm/s		30~250mm/s
	Single Acting	50~500mm/s								-
Port Size		M5x0.8				G1/8		G1/4		G3/8

Stroke

Bore			Standard Stroke	Max. Stroke
CQ2	12/16	Magnetic	5 10 15 20 25 30	30
CQ2	20/25		5 10 15 20 25 30 35 40 45 50	50
CQ2/TCQ2	32/40/50/63/80/100		5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100	100
CQ2S/CQ2T	12/16	Single acting	5 10 15 20	20
CQ2S/CQ2T	20/25/32/40/50/63	Single acting	5 10 15 20 25 30	30
CQ2A	32/40/50/63/80/100	Long stroke	125 150 175 200 225 250 275 300	300

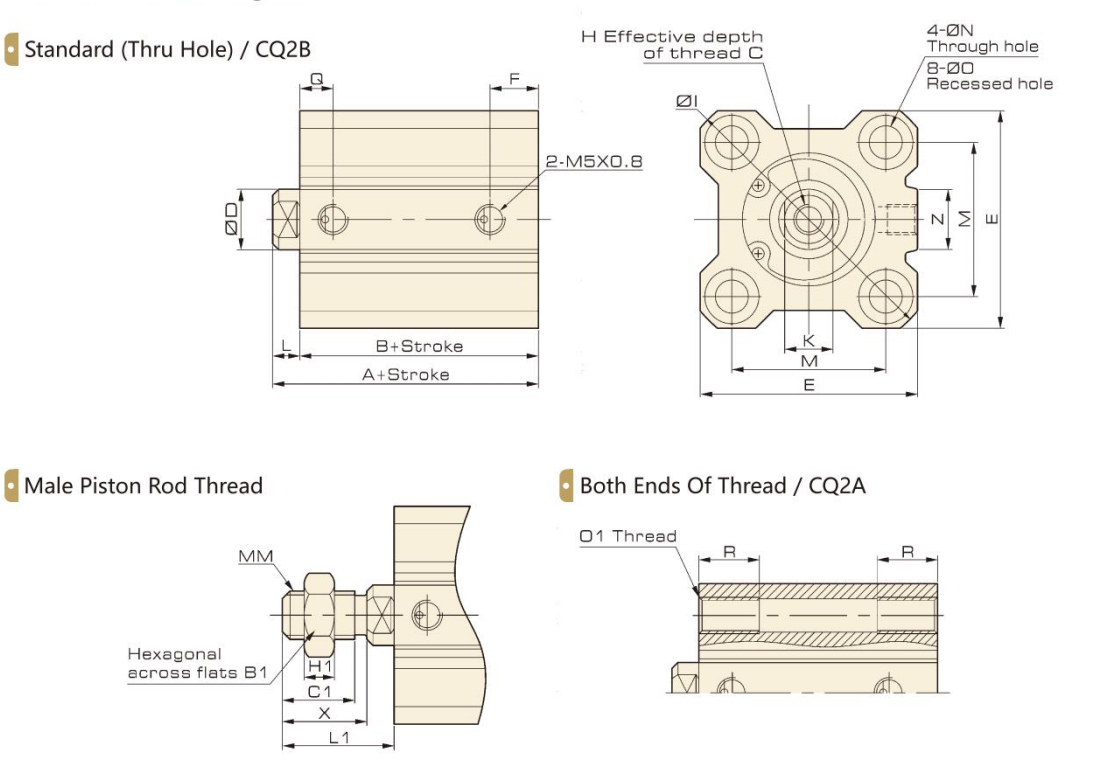

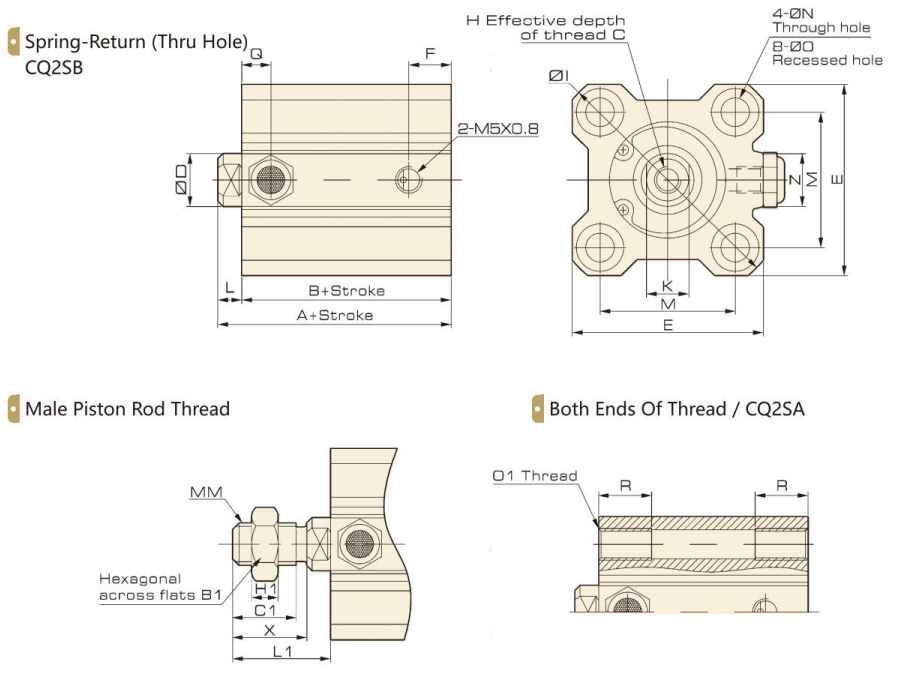

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	F	H	I	K	L	M
12	5~30	20.5	17	6	6	25	5	M3×0.5	32	5	3.5	15.5
16	5~30	22	18.5	8	8	29	5.5	M4×0.7	38	6	3.5	20
20	5~50	24	19.5	7	10	36	5.5	M5×0.8	47	8	4.5	25.5
25	5~50	27.5	22.5	12	12	40	5.5	M6×1	52	10	5	28

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	7.5		8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	F	H	I	K	L	M
12	5/10	30.5	27	6	6	25	5	M3x0.5	32	5	3.5	15.5
	15/20	40.5	37
16	5/10	32	28.5	8	8	29	5.5	M4x0.7	38	6	3.5	20
	15/20	42	38.5
20	5/10	34	29.5	7	10	36	5.5	M5x0.8	47	8	4.5	25.5
	15/20/25/30	44	39.5
25	5/10	37.5	32.5	12	12	40	5.5	M6x1	52	10	5	28
	15/20/25/30	47.5	42.5

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	7.5	-	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×l	10

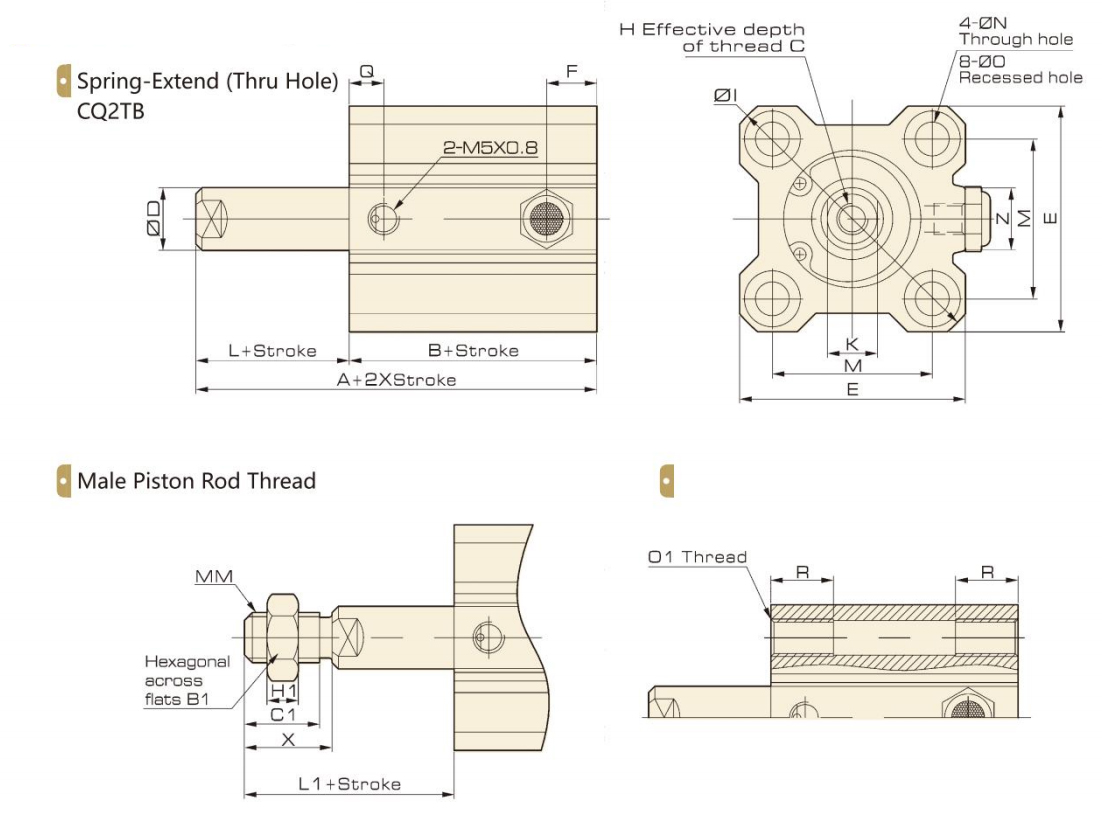

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	F	H	I	K	L	M
12	5/10	30.5	27	6	6	25	5	M3x0.5	32	5	3.5	15.5
	15/20	40.5	37
16	5/10	32	28.5	8	8	29	5.5	M4x0.7	38	6	3.5	20
	15/20	42	38.5
20	5/10	34	29.5	7	10	36	5.5	M5x0.8	47	8	4.5	25.5
	15/20/25/30	44	39.5
25	5/10	37.5	32.5	12	12	40	5.5	M6x1	52	10	5	28
	15/20/25/30	47.5	42.5

Bore/Symbol	N	O	Q	Z	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	7.5	-	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	8	10	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	10	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	10	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	H	I	K	L	M	N
12	5~30	32.2	25.2	6	6	25	M3×0.5	32	5	3.5	15.5	3.5
16	5~30	33	26	8	8	29	M4×0.7	38	6	3.5	20	3.5
20	5~50	35	26	7	10	36	M5×0.8	47	8	4.5	25.5	5.5
25	5~50	39	29	12	12	40	M6×1	52	10	5	28	5.5

Bore/Symbol	O	Q	Z	A1	B1	C1	H1	L1	MM	X	O1	R
12	6.5 deep 3.5	9	-	43.2	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	10	57	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	10	63	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	10	74	17	15	6	22.5	M10×1.25	17.5	M6×1	10

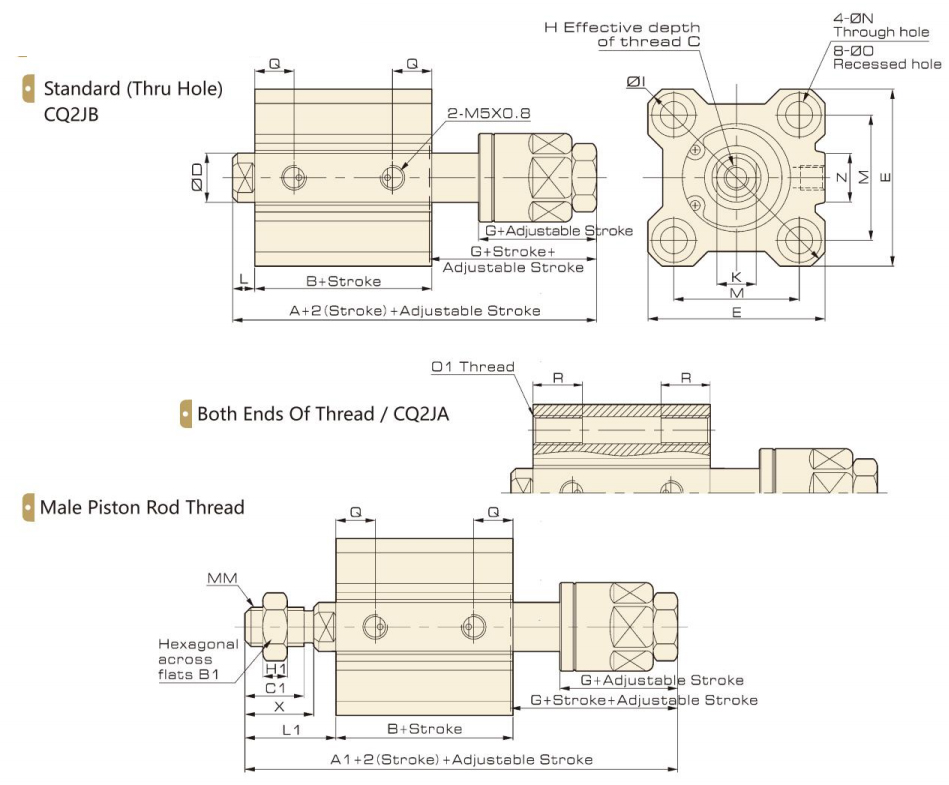

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	G	H	I	K	L	M	N
12	5-30	45.2	25.2	6	6	25	17	M3x0.5	32	5	3.5	15.5	3.5
16	5-30	50	26	8	8	29	21	M4x0.7	38	6	3.5	20	3.5
20	5-50	54	26	7	10	36	24	M5x0.8	47	8	4.5	25.5	5.5
25	5-50	60.5	29	12	12	40	27	M6xl	52	10	5	28	5.5

Bore/Symbol	O	Q	Z	A1	B1	C1	H1	L1	MM	X	O1	R
12	6.5 deep 3.5	9	-	55.7	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	10	62	10	10	5	15.5	M6×1	-	M4×0.7	7
20	9 deep 7	8	10	68	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	10	78	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Overall Dimension

∅12~∅25 Without Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	EA	EB	F	H	K	L	M	N
12	5~30	31.5	28	6	6	33	-	-	7	M3×0.5	5	3.5	22	3.5
16	5~30	34	30.5	8	8	37	13.2	6.6	5.5	M4×0.7	6	3.5	28	3.5
20	5~50	36	31.5	7	10	47	13.6	6.8	5.5	M5×0.8	8	4.5	36	5.5
25	5~50	37.5	32.5	12	12	52	13.6	6.8	5.5	M6×1	10	5	40	5.5

Bore/Symbol	O	Q	S	U	V	B1	C1	H1	L1	MM	X	O1	R
12	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

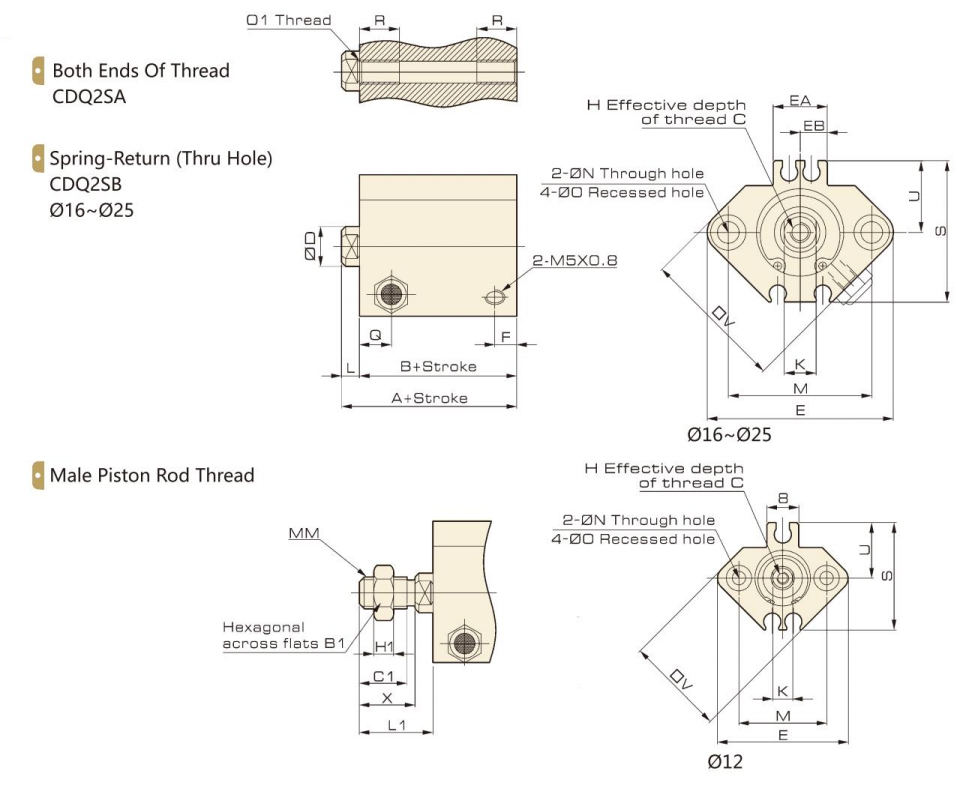

Overall Dimension

∅12~∅25 With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	F	H	K	L	M
12	5/10	41.5	38	6	6	33	-	-	7	M3x0.5	5	3.5	22
	15/20	51.5	48
16	5/10	44	40.5	8	8	37	13.2	6.6	5.5	M4x0.7	6	3.5	28
	15/20	54	50.5
20	5/10	46	41.5	7	10	47	13.6	6.8	5.5	M5x0.8	8	4.5	36
	15/20/25/30	56	51.5
25	5/10	47.5	42.5	12	12	52	13.6	6.8	5.5	M6x1	10	5	40
	15/20/25/30	57.5	52.5

Bore/Symbol	N	O	Q	S	U	V	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

Overall Dimension

∅12~∅25 With Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	EA	EB	F	H	K	L	M
12	5/10	41.5	38	6	6	33	-	-	7	M3x0.5	5	3.5	22
	15/20	51.5	48
16	5/10	44	40.5	8	8	37	13.2	6.6	5.5	M4x0.7	6	3.5	28
	15/20	54	50.5
20	5/10	46	41.5	7	10	47	13.6	6.8	5.5	M5x0.8	8	4.5	36
	15/20/25/30	56	51.5
25	5/10	47.5	42.5	12	12	52	13.6	6.8	5.5	M6x1	10	5	40
	15/20/25/30	57.5	52.5

Bore/Symbol	N	O	Q	S	U	V	B1	C1	H1	L1	MM	X	O1	R
12	3.5	6.5 deep 3.5	9	27.5	14	25	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	3.5	6.5 deep 3.5	9.5	29.5	15	29	10	10	5	15.5	M6×1	12	M4×0.7	7
20	5.5	9 deep 7	8	35.5	18	36	13	12	5	18.5	M8×1.25	14	M6×1	10
25	5.5	9 deep 7	9	40.5	21	40	17	15	6	22.5	M10×1.25	17.5	M6×1	10

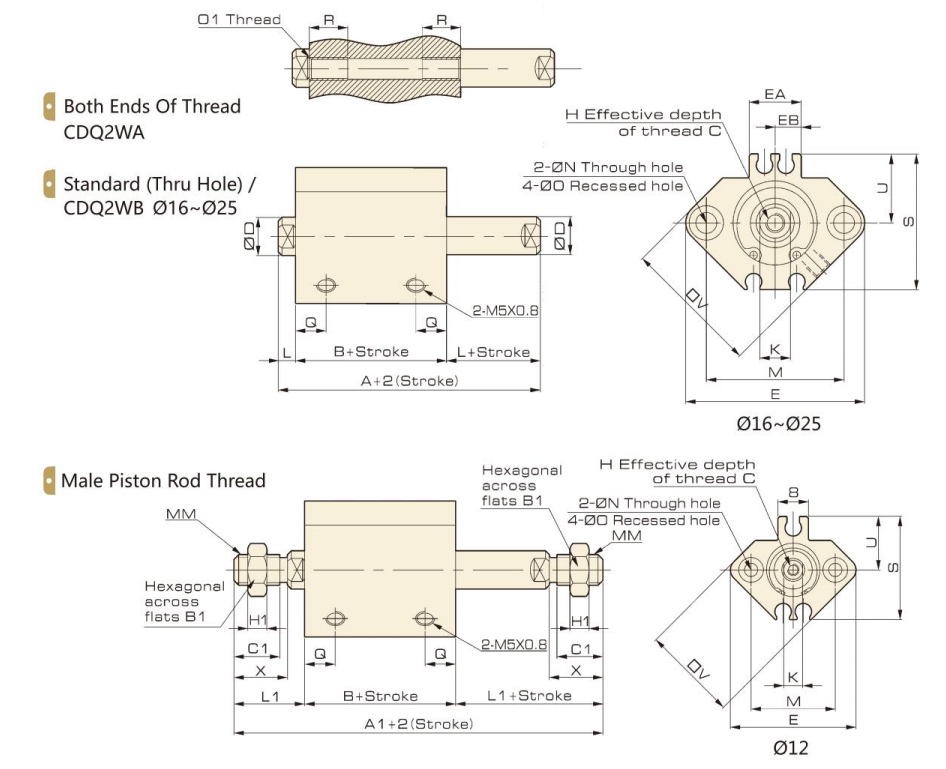

Overall Dimension

∅12~∅25 With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	EA	EB	H	K	L	M	N	O
12	5-30	39.4	32.4	6	6	33	-	-	M3x0.5	5	3.5	22	3.5	6.5 deep 3.5
16	5-30	43	36	8	8	37	13.2	6.6	M4x0.7	6	3.5	28	3.5	6.5 deep 3.5
20	5-50	47	38	7	10	47	13.6	6.8	M5x0.8	8	4.5	36	5.5	9 deep 7
25	5-50	49	39	12	12	52	13.6	6.8	M6xl	10	5	40	5.5	9 deep 7

Bore/Symbol	Q	S	U	V	A1	B1	C1	H1	L1	MM	X	O1	R
12	9	27.5	14	25	60.4	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	9.5	29.5	15	29	67	10	10	5	15.5	M6×1	12	M4×0.7	7
20	8	35.5	18	36	75	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9	40.5	21	40	84	17	15	6	22.5	M10×1.25	17.5	M6×1	10

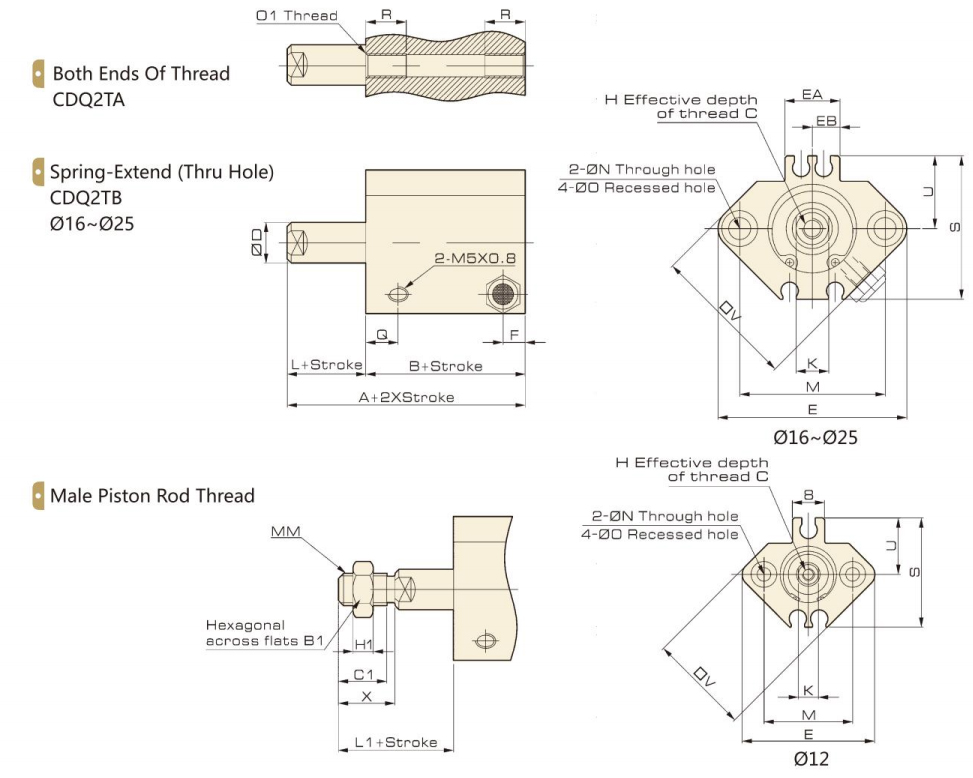

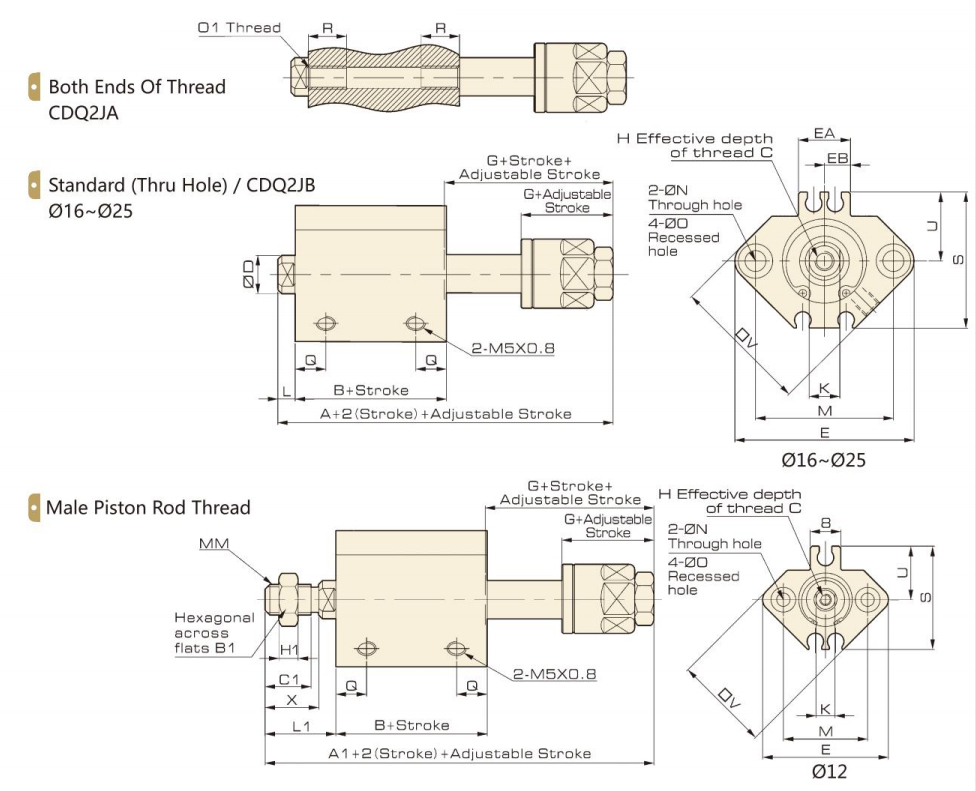

Overall Dimension

∅12~∅25 With Magnet

Dimension

Bore/Symbol	Stroke Range(mm)	A	B	C	D	E	EA	EB	G	H	K	L	M	N
12	5~30	52.4	32.4	6	6	33	-	-	17	M3×0.5	5	3.5	22	3.5
16	5~30	60	36	8	8	37	13.2	6.6	21	M4×0.7	6	3.5	28	3.5
20	5~50	66	38	7	10	47	13.6	6.8	24	M5×0.8	8	4.5	36	5.5
25	5~50	70.5	39	12	12	52	13.6	6.8	27	M6×1	10	5	40	5.5

Bore/Symbol	O	Q	S	U	V	A1	B1	C1	H1	L1	MM	X	O1	R
12	6.5 deep 3.5	9	27.5	14	25	62.9	8	9	4	14	M5×0.8	10.5	M4×0.7	7
16	6.5 deep 3.5	9.5	29.5	15	29	72	10	10	5	15.5	M6×1	12	M4×0.7	7
20	9 deep 7	8	35.5	18	36	80	13	12	5	18.5	M8×1.25	14	M6×1	10
25	9 deep 7	6	40.5	21	40	88	17	15	6	22.5	M10×1.25	17.5	M6×1	10

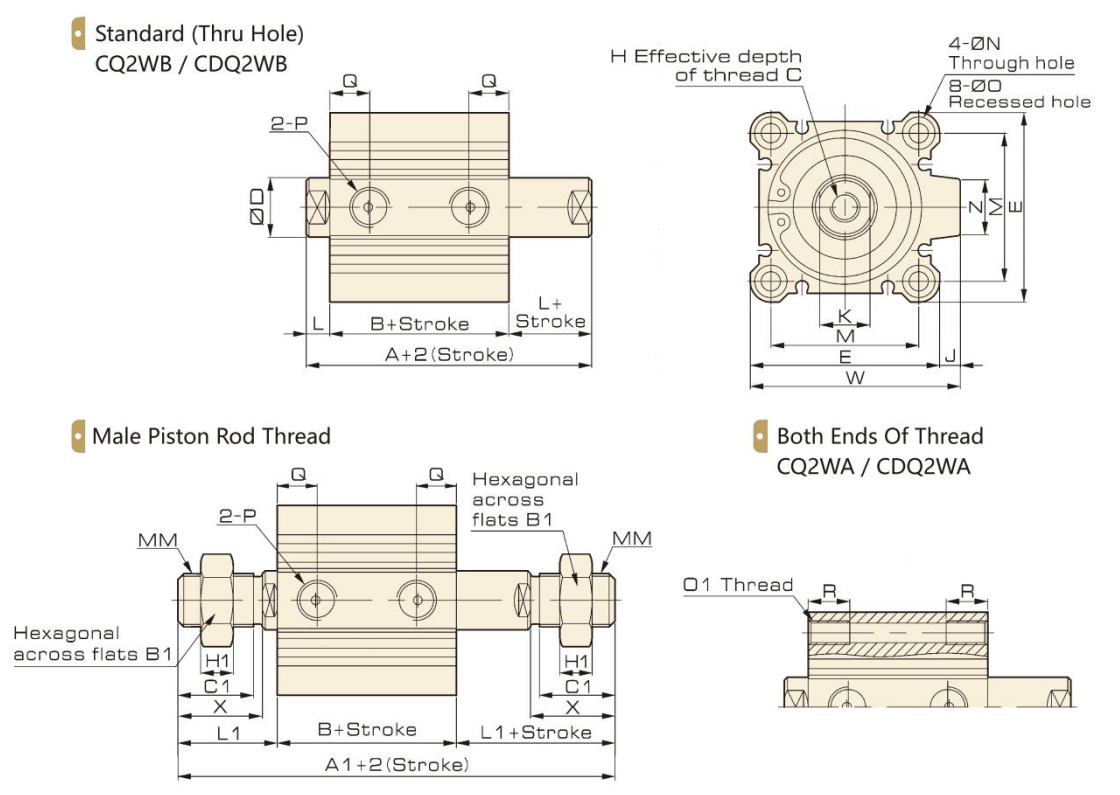

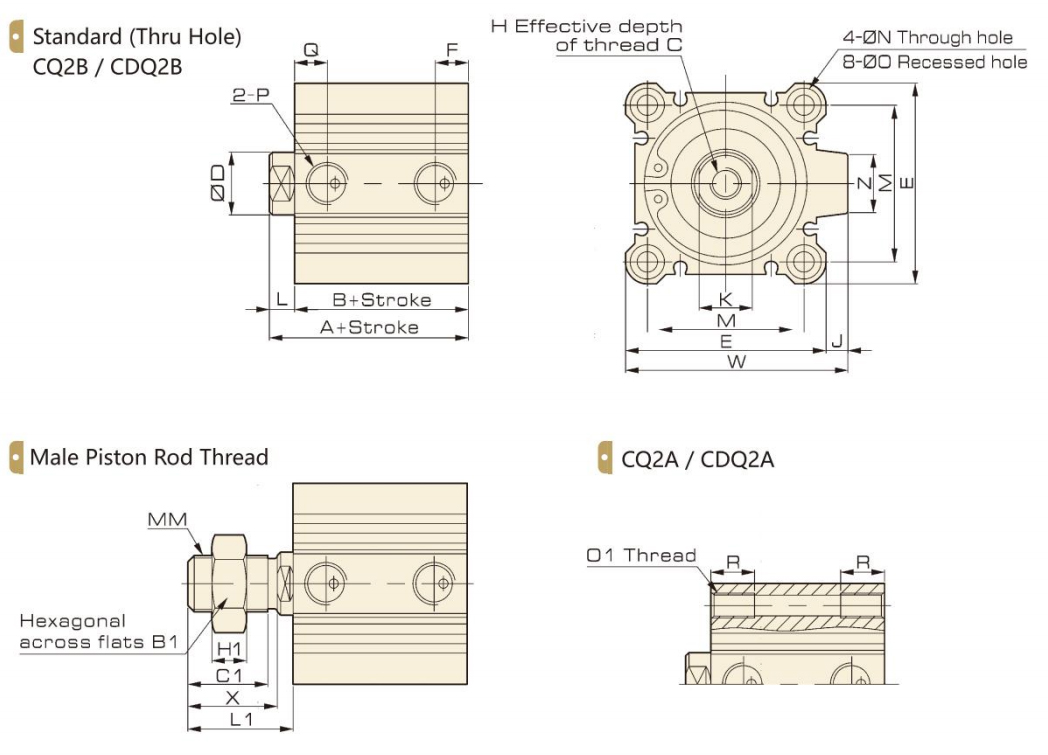

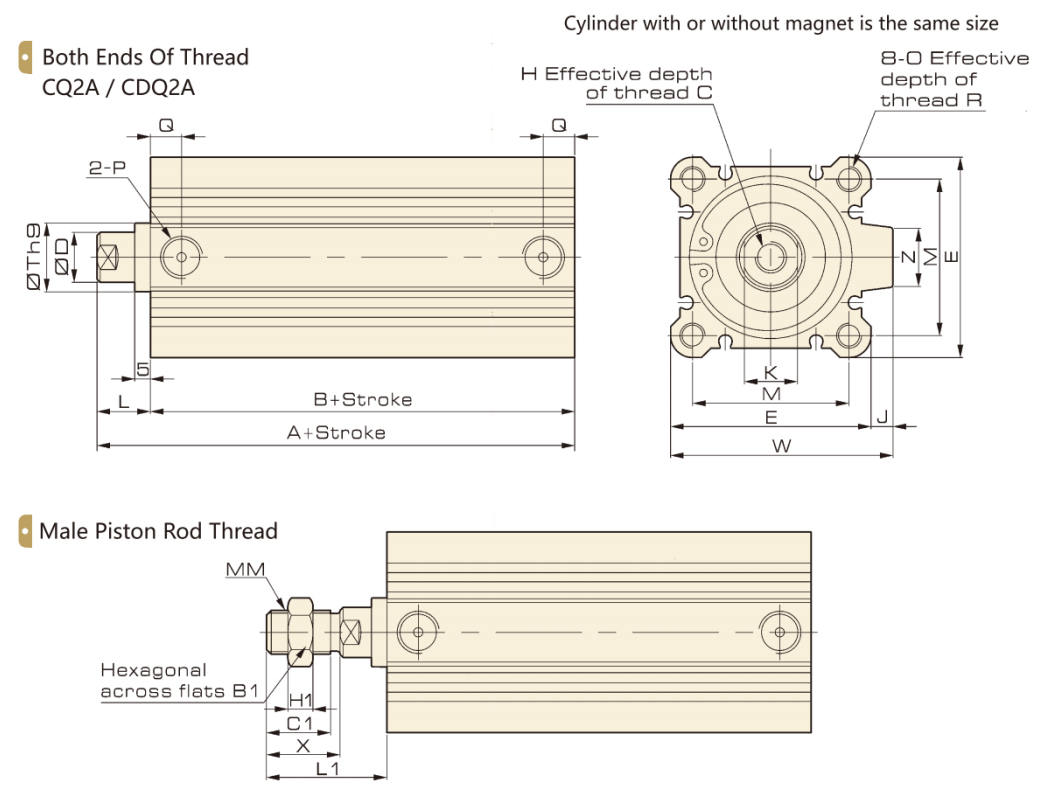

Overall Dimension

∅32~∅100 Without Magnet /With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	Without Magnet				With Magnet				C	D	E	H	J	K
		A	B	F	Q	A	B	F	Q
32	5	30	23	6.5	7.5	40	33	7.5	10	13	16	45	M8x1.25	4.5	14
	10~50			7.5	10
	50-100	40	33
40	5	36.5	29.5	8	11	46.5	39.5	7.5	12.5	13	16	52	M8x1.25	5	14
	10-50			7.5	12.5
	50-100	46.5	39.5
50	5	38.5	30.5	9	9	48.5	40.5	10.5	10.5	15	20	64	M10x1.5	7	17
	10-50			10.5	10.5
	50-100	48.5	40.5
63	5	44	36	9.5	14	54	46	10.5	15	15	20	77	M10x1.5	7	17
	10~50			10.5	15
	50-100	54	46
80	5-50	53.5	43.5	12.5	16	63.5	53.5	12.5	16	21	25	98	M16x2	6	22
	50-100	63.5	53.5
100	5-50	65	53	13	23	75	63	13	23	27	32	117	M20x2.5	6.5	27
	50-100	75	63

Bore/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	O1	R
32	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
40	7	40	5.5	9 deep 7	1/8	57	15	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
50	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18x1.5	28.5	M8x1.25	14
63	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18x1.5	28.5	M10x1.5	18
80	10	77	11	17.5 deep 13.5	3/8	104	25	32	32.5	13	43.5	M22x1.5	35.5	M12x1.75	22
100	12	94	11	17.5 deep 13.5	3/8	123.5	25	41	32.5	13	43.5	M26x1.5	35.5	M12x1.75	22

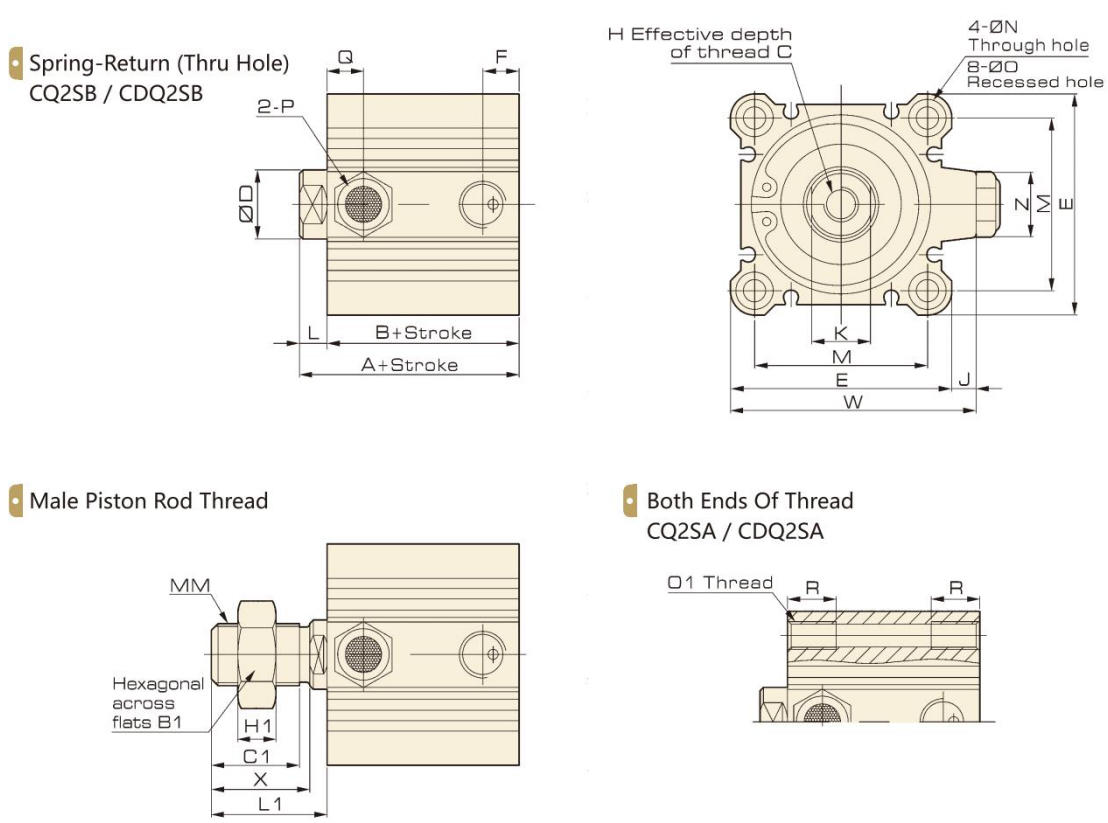

Overall Dimension

∅32~∅100 Without Magnet/With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	Without Magnet				With Magnet				C	D	E	H	J	K
		A	B	F	Q	A	B	F	Q
32	5/10	40	33	7.5	10	50	43	7.5	10	13	16	45	M8x1.25	4.5	14
	15/20/25/30	50	43			60	53
40	5/10	46.5	39.5	7.5	12.5	56.5	49.5	7.5	12.5	13	16	52	M8x1.25	5	14
	15/20/25/30	56.5	49.5			66.5	59.5
50	5/10	48.5	40.5	10.5	10.5	58.5	50.5	10.5	10.5	15	20	64	M10x1.5	7	17
	15/20/25/30	58.5	50.5			68.5	60.5
63	5/10	54	46	10.5	15	64	56	10.5	15	15	20	77	M10x1.5	7	17
	15/20/25/30	64	56			74	66

Bore/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	O1	R
32	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
40	7	40	5.5	9 deep 7	1/8	57	15	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
50	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
63	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18

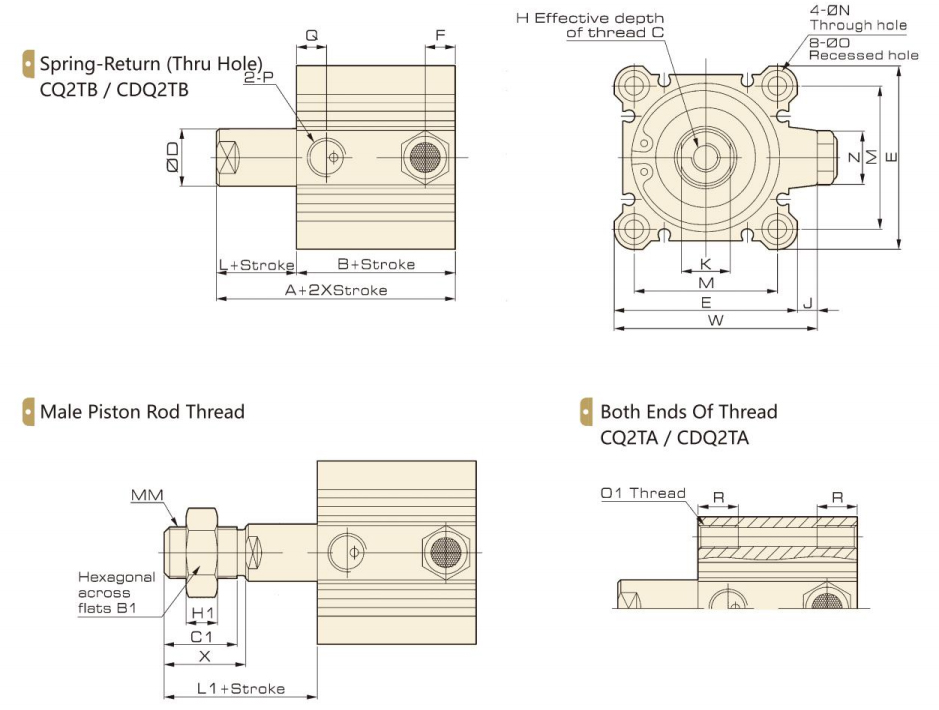

Overall Dimension

∅32~∅100 Without Magnet/With Magnet

Dimension

Bore/Symbol	Stroke Range	Without Magnet				With Magnet				C	D	E	H	J	K
	(mm)	A	B	F	Q	A	B	F	Q
32	5/10	40	33	7.5	10	50	43	7.5	10	13	16	45	M8x1.25	4.5	14
	15/20/25/30	50	43			60	53
40	5/10	46.5	39.5	7.5	12.5	56.5	49.5	7.5	12.5	13	16	52	M8x1.25	5	14
	15/20/25/30	56.5	49.5			66.5	59.5
50	5/10	48.5	40.5	10.5	10.5	58.5	50.5	10.5	10.5	15	20	64	M10x1.5	7	17
	15/20/25/30	58.5	50.5			68.5	60.5
63	5/10	54	46	10.5	15	64	56	10.5	15	15	20	77	M10x1.5	7	17
	15/20/25/30	64	56			74	66

Bore/Symbol	L	M	N	O	P	W	Z	B1	C1	H1	L1	MM	X	O1	R
32	7	34	5.5	9 deep 7	1/8	49.5	14	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
40	7	40	5.5	9 deep 7	1/8	57	15	22	20.5	8	28.5	M14×1.5	23.5	M6×1	10
50	8	50	6.6	11 deep 8	1/4	71	19	27	26	11	33.5	M18×1.5	28.5	M8×1.25	14
63	8	60	9	14 deep 10.5	1/4	84	19	27	26	11	33.5	M18×1.5	28.5	M10×1.5	18

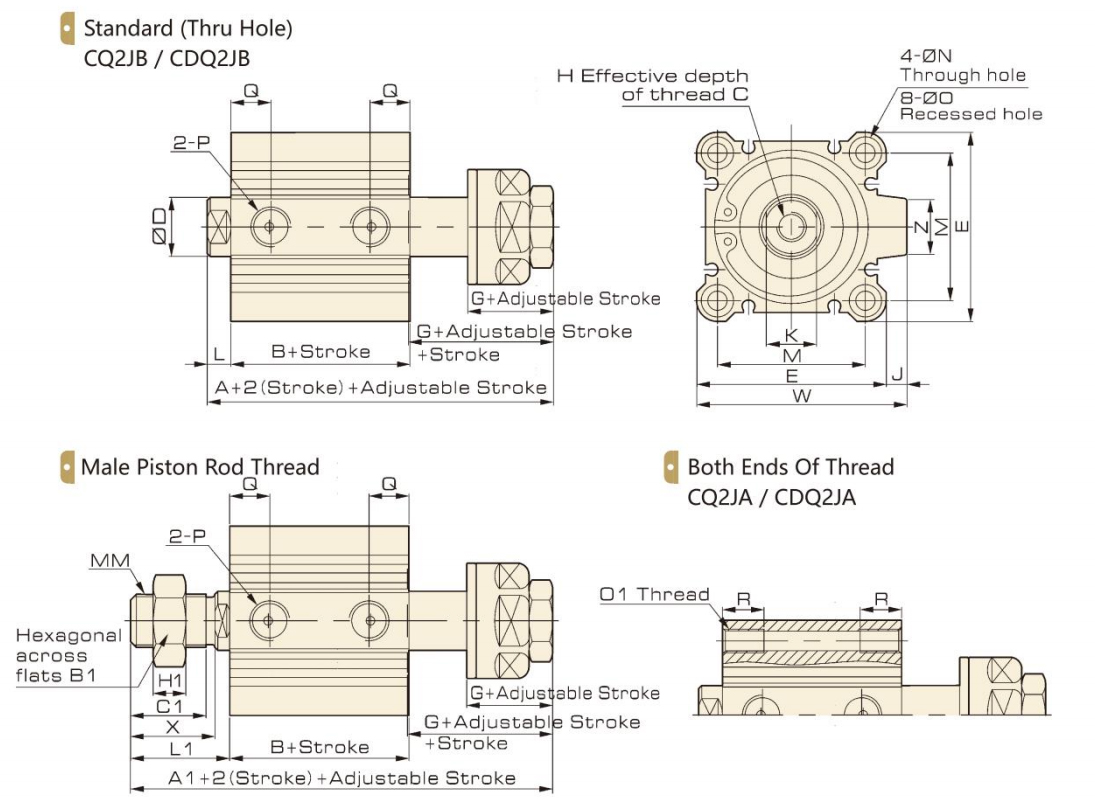

Overall Dimension

∅32~∅100 Without Magnet/With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	Without Magnet			With Magnet			C	D	E	H	J	K	L	M	N	O
		A	A1	B	A	A1	B
32	5-50	44.5	87.5	30.5	54.5	97.5	40.5	13	16	45	M8x1.25	4.5	14	7	34	5.5	9 deep 7
	50-100	54.5	97.5	40.5
40	5-50	54	97	40	64	107	50	13	16	52	M8x1.25	5	14	7	40	5.5	9 deep 7
	50-100	64	107	50
50	5-50	56.5	107.5	40.5	66.5	117.5	50.5	15	20	64	M10x1.5	7	17	8	50	6.6	11 deep 8
	50-100	66.5	117.5	50.5
63	5	58	109	42	68	119	52	15	20	77	M10x1.5	7	17	8	60	9	14 deep 10.5
	10-50
	50-100	68	119	52
80	5-50	71	138	51	81	148	61	21	25	98	M16x2	6	22	10	77	11	17 deep 13.5
	50-100	81	148	61
100	5-50	84.5	147.5	60.5	94.5	157.5	70.5	27	32	117	M20x2.5	6.5	27	12	94	11	17 deep 13.5
	50-100	94.5	157.5	70.5

Bore/Symbol	P	Q	W	Z	B1	C1	H1	L1	MM	X	O1	R
32	1/8	10	49.5	14	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
40	1/8	13	57	15	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
50	1/4	13	71	19	27	26	11	33.5	M18x1.5	28.5	M8x1.25	14
63	1/4	Stroke 5mm: 14.5	84	19	27	26	11	33.5	M18x1.5	28.5	M10x1.5	18
63	1/4	Stroke10~50mm and 50〜100mm: 16	84	19	27	26	11	33.5	M18x1.5	28.5	M10x1.5	18
80	3/8	16	104	25	32	32.5	13	43.5	M22x1.5	35.5	M12x1.75	22
100	3/8	20	123.5	25	41	32.5	16	43.5	M26x1.5	35.5	M12x1.75	22

Overall Dimension

∅32~∅100 Without Magnet/ With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	Without Magnet			With Magnet			C	D	E	G	H	J	K	L	M	N
		A	A1	B	A	A1	B
32	5~50	65	86.5	30.5	75	96.5	40.5	13	16	45	28	M8x1.25	4.5	14	7	34	5.5
	50-100	75	96.5	40.5
40	5-50	74.5	96	40	84.5	106	50	13	16	52	28	M8x1.25	5	14	7	40	5.5
	50-100	84.5	106	50
50	5-50	77	102.5	40.5	87	112.5	50.5	15	20	64	29	M10x1.5	7	17	8	50	6.6
	50-100	87	112.5	50.5
63	5-50	78.5	104	42	88.5	114	52	15	20	77	29	M10x1.5	7	17	8	60	9
	50-100	88.5	114	52
80	5-50	96	129.5	51	106	139.5	61	21	25	98	35.5	M16x2	6	22	10	77	11
	50-100	106	139.5	61
100	5-50	114.5	146	60.5	124.5	156	70.5	27	32	117	42.5	M20x2.5	6.5	27	12	94	11
	50-100	124.5	156	70.5

Bore/Symbol	O	P	Q	W	Z	B1	C1	H1	L1	MM	X	O1	R
32	9 deep 7	1/8	10	49.5	14	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
40	9 deep 7	1/8	13	57	15	22	20.5	8	28.5	M14x1.5	23.5	M6x1	10
50	11 deep 8	1/4	13	71	19	27	26	11	33.5	M18x1.5	28.5	M8x1.25	14
63	14 deep 10.5	1/4	Stroke 5~50mm: 14.5	84	19	27	26	11	33.5	M18x1.5	28.5	M10x1.5	18
63	14 deep 10.5	1/4	Stroke 50〜100mm: 16	84	19	27	26	11	33.5	M18x1.5	28.5	M10x1.5	18
80	17 deep 13.5	3/8	16	104	25	32	32.5	13	43.5	M22x1.5	35.5	M12x1.75	22
100	17 deep 13.5	3/8	20	123.5	25	41	32.5	16	43.5	M26x1.5	35.5	M12x1.75	22

Overall Dimension

∅32~∅100 Without Magnet/ With Magnet

Dimension

Bore/Symbol	Stroke Range (mm)	A	B	C	D	E	H	J	K	L	M	P	Q
32	100 〜300	62.5	45.5	13	16	45	M8x1.25	4.5	14	17	34	1/8	12.5
40		72	55	13	16	52	M8x1.25	5	14	17	40	1/8	14
50		73.5	55.5	15	20	64	M10x1.5	7	17	18	50	1/4	14
63		75	57	15	20	77	M10x1.5	7	17	18	60	1/4	16.5
80		86	66	21	25	98	M16x2	6	22	20	77	3/8	19
100		97.5	75.5	27	32	117	M20x2.5	6.5	27	22	94	3/8	23

Bore/Symbol	W	Z	B1	C1	H1	L1	MM	X	O	R	Th9
32	49.5	14	22	20.5	8	38.5	M14x1.5	23.5	M6x1	10	22⁰_-0.052
40	57	15	22	20.5	8	38.5	M14x1.5	23.5	M6x1	10	28⁰_-0.052
50	71	19	27	26	11	43.5	M18x1.5	28.5	M8x1.25	14	35⁰_-0.052
63	84	19	27	26	11	43.5	M18x1.5	28.5	M10x1.5	18	35⁰_-0.052
80	104	25	32	32.5	13	53.5	M22x1.5	35.5	M12x1.75	22	43⁰_-0.052
100	123.5	25	41	32.5	16	53.5	M26x1.5	35.5	M12x1.75	22	59⁰_-0.052

Control Component

Valve Terminal

Execution Component

Air Source Unit

Pneumatic Accessory

Download

2D/3D CAD

Rail transit

Automobile

Textile machinery

Medical instrument

Industrial Automation

Innovation

Quality

Achievement

Company Profile

History

News

Career Opportunities

Web Menu

Product Search

Language

Exit Menu

Thin Cylinder

Products

CQ2 Series Compact Cylinder

CONTACT jelpc

Domestic Sales Department:

International Trade Department:

General Office:

Web Menu

Product Search

Language

Share

Exit Menu

Thin Cylinder

Products

CQ2 Series Compact Cylinder

CONTACT jelpc

Domestic Sales Department:

International Trade Department:

General Office:
