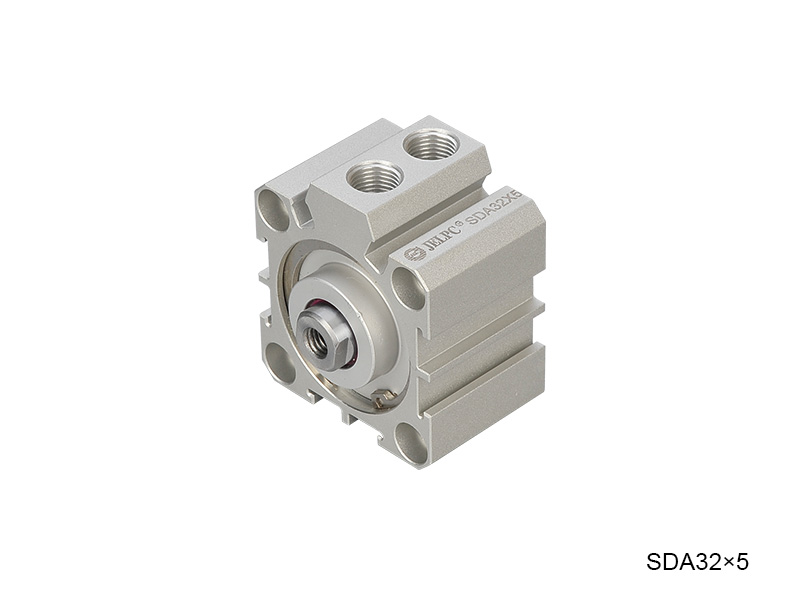

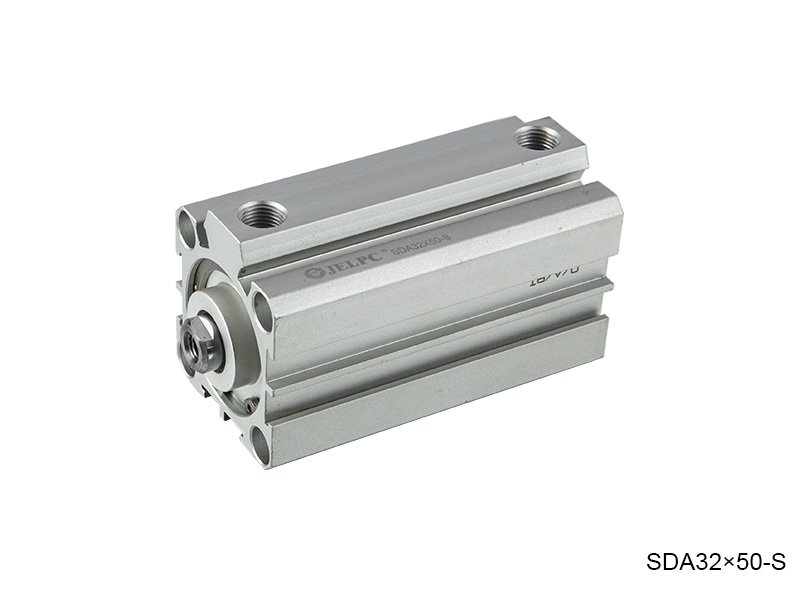

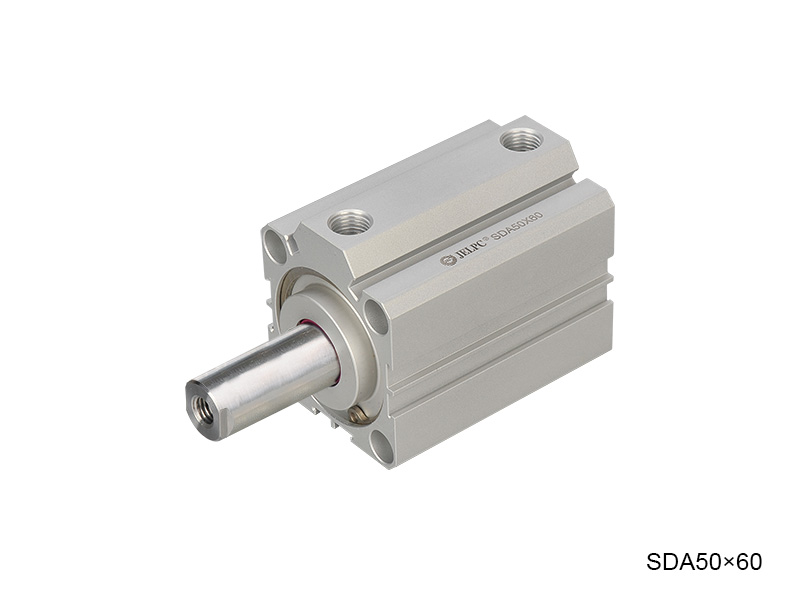

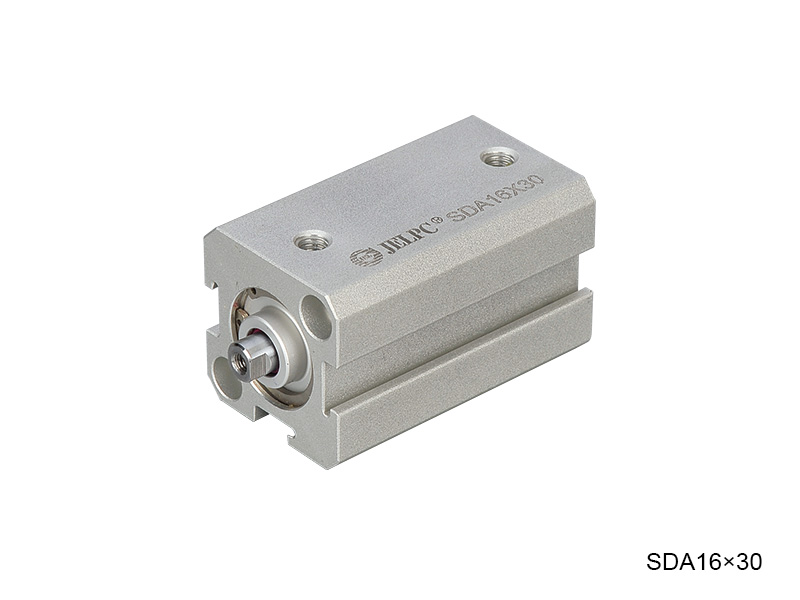

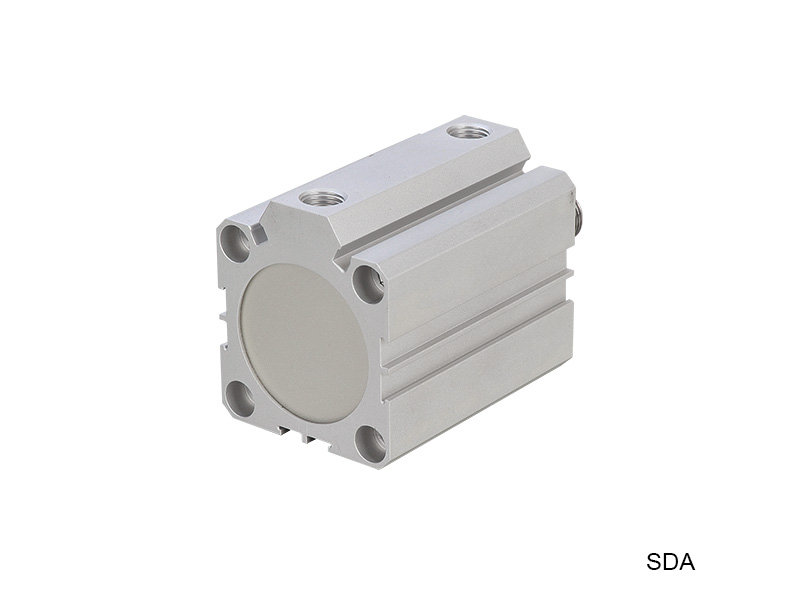

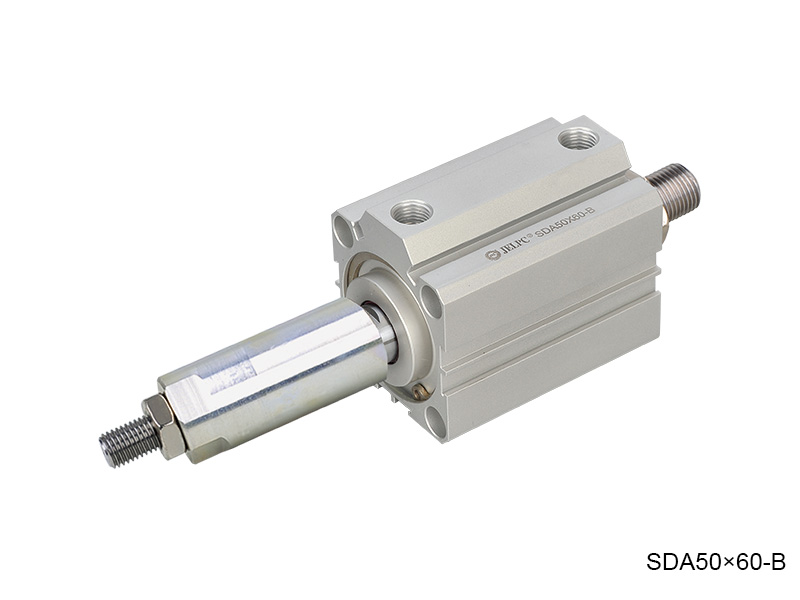

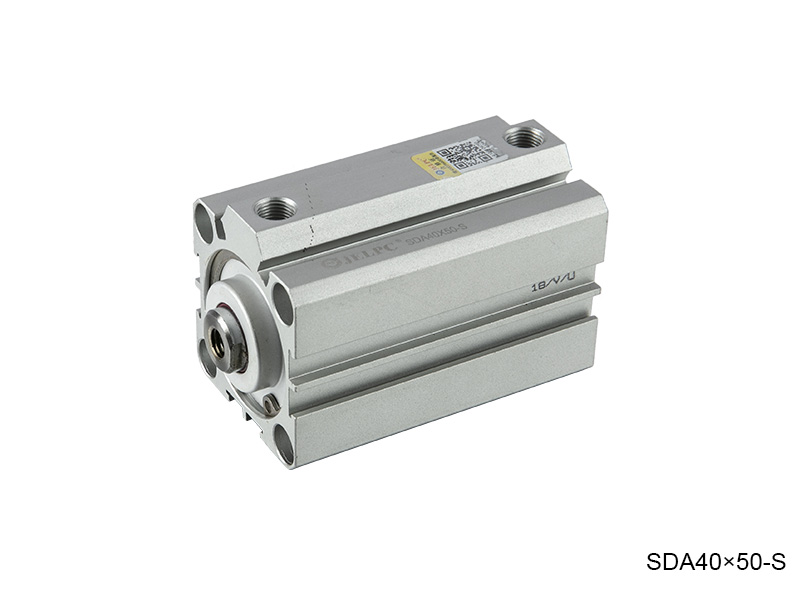

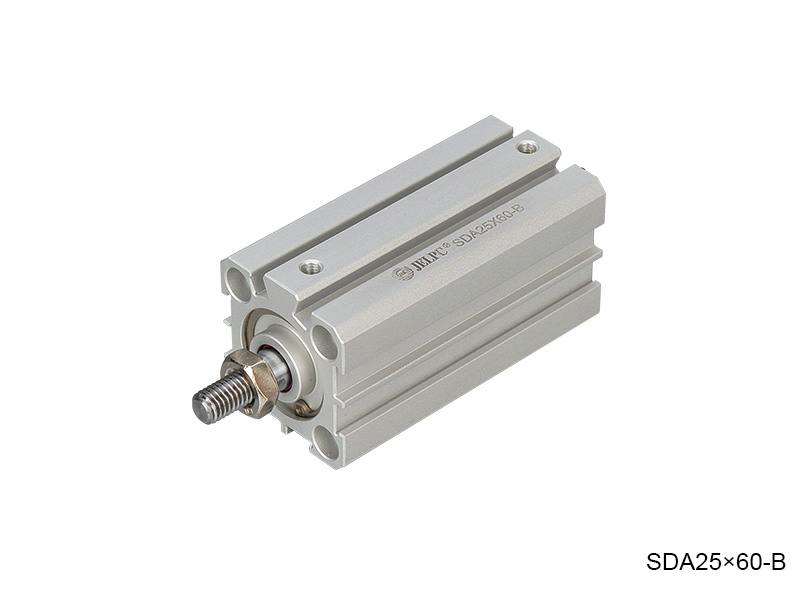

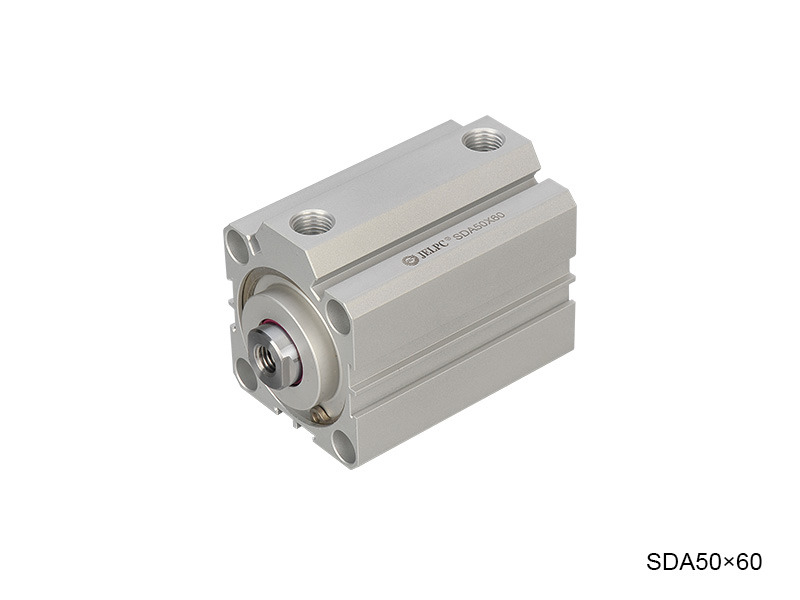

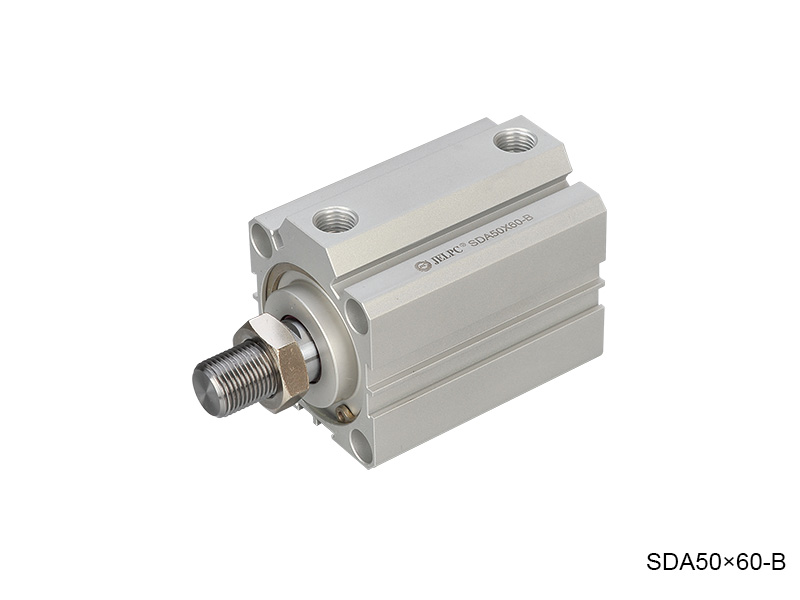

SDA Series Compact Cylinder

Features:
1. Improving for adapting wide range applications, using precise polishing of piston rod, more sense of products quality and longer life of front seal.
2. Adjust the structure to the optimal state and ensure the smooth operation of the product.
3. The piston rod and the back cover cramping technology, improving product quality.
4. Combined with enterprise color planning, it is redesigned by new color system and precise treatment of particulars.

Product parameters
Product size

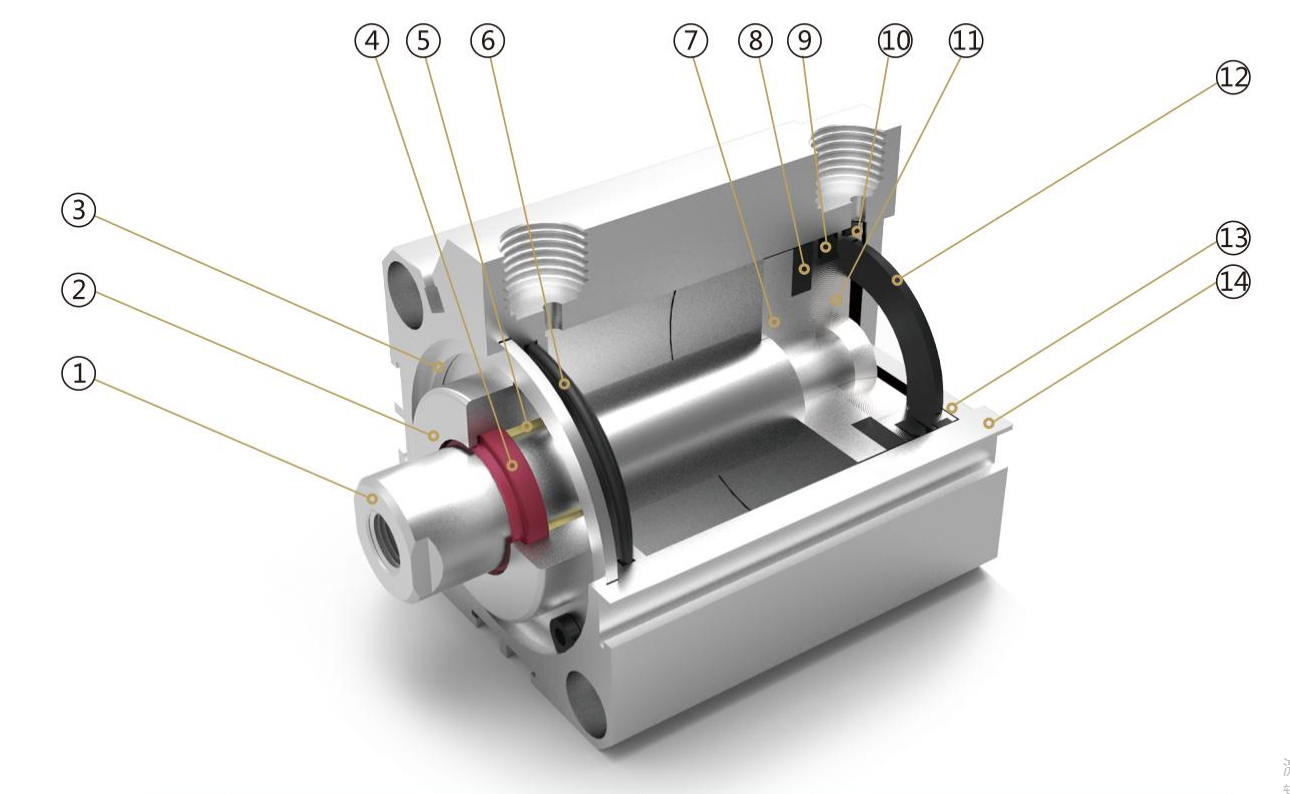

Internal Structure

Parts

Number	Name	Number	Name
1	Piston rod	8	Magnet
2	Front cover	9	Piston seal
3	C clip	10	Anti-friction seal
4	Shaft seal	11	Magnet base
5	DU bearing	12	Anti-collision gasket
6	O ring	13	Back cover
7	Piston	14	Body

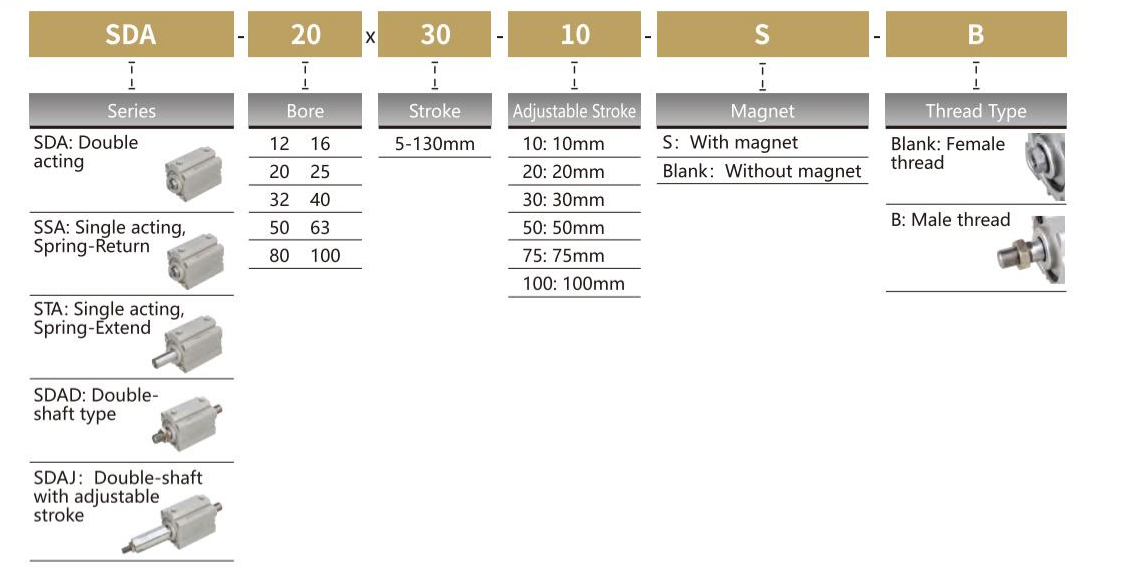

Ordering Code

*Sensor model JEL-01/JEL-11, please refer to P173 for the specific ordering code.

Specification

Bore (mm)		12	16	20	25	32	40	50	63	80	100
Operation		Double Acting
		Single Acting Spring-out/Single Acting Spring-in								-
Working Medium		Air
Operating Pressure Range	Double Acting	0.1~1.0MPa
	Single Acting	0.2~0.9MPa								-
Proof Pressure		1.5 MPa
Operating Temperature Range		-20~80℃
Operating Speed Range	Double Acting	30～500 mm/s					30～350 mm/s		30~250 mm/s
	Single Acting	50~500 mm/s								-
Port Size		M5×0.8				G1/8"		G1/4"		G3/8"

Stroke

Bore		Standard Stroke		Max.Stroke
SDA	12/16	Magnetic	5 10 15 20 25 30 35 40 45 50	50
	12/16	Non-magnetic	5 10 15 20 25 30 35 40 45 50	60
	20	Magnetic	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90	90
	20	Non-magnetic	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100	100
	25/32/40/50/63/80/100	Magnetic	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120	120
	25/32/40/50/63/80/100	Non-magnetic	5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 130	130
SSA/STA	12/16/20/25/32/40/50/63	Single acting	5 10 15 20 25 30	50

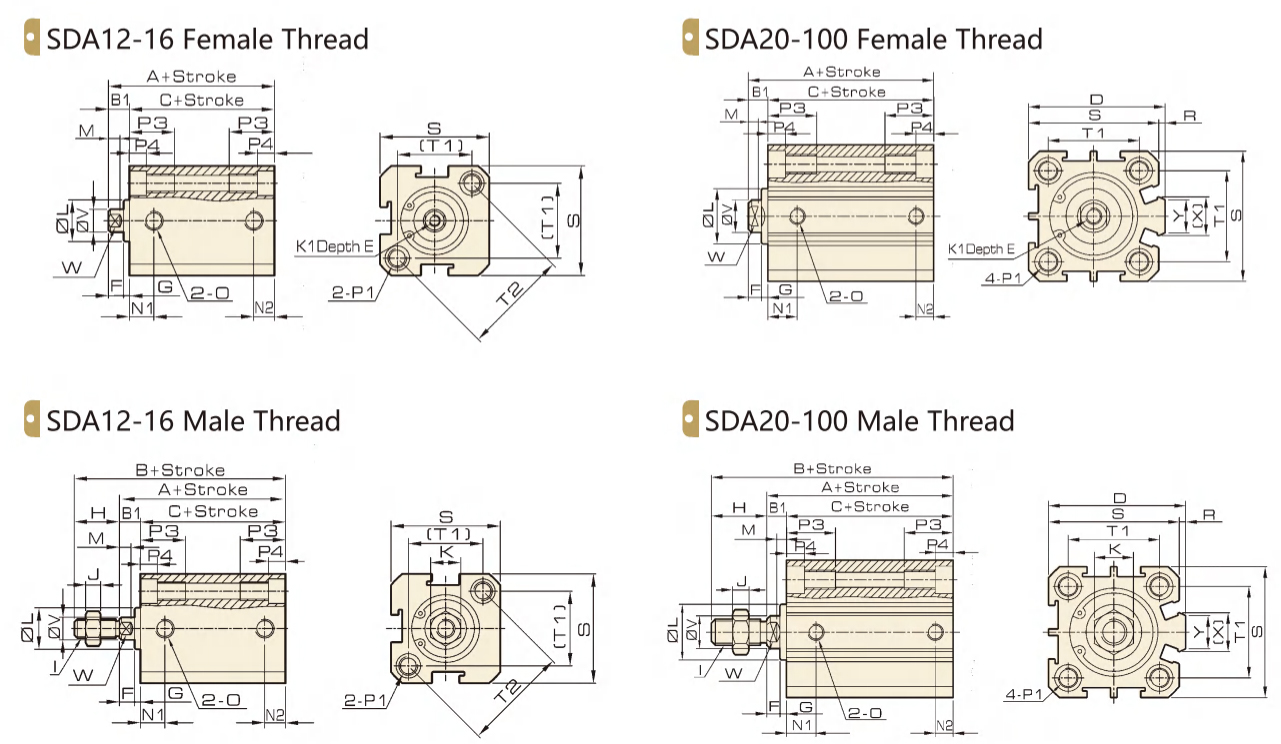

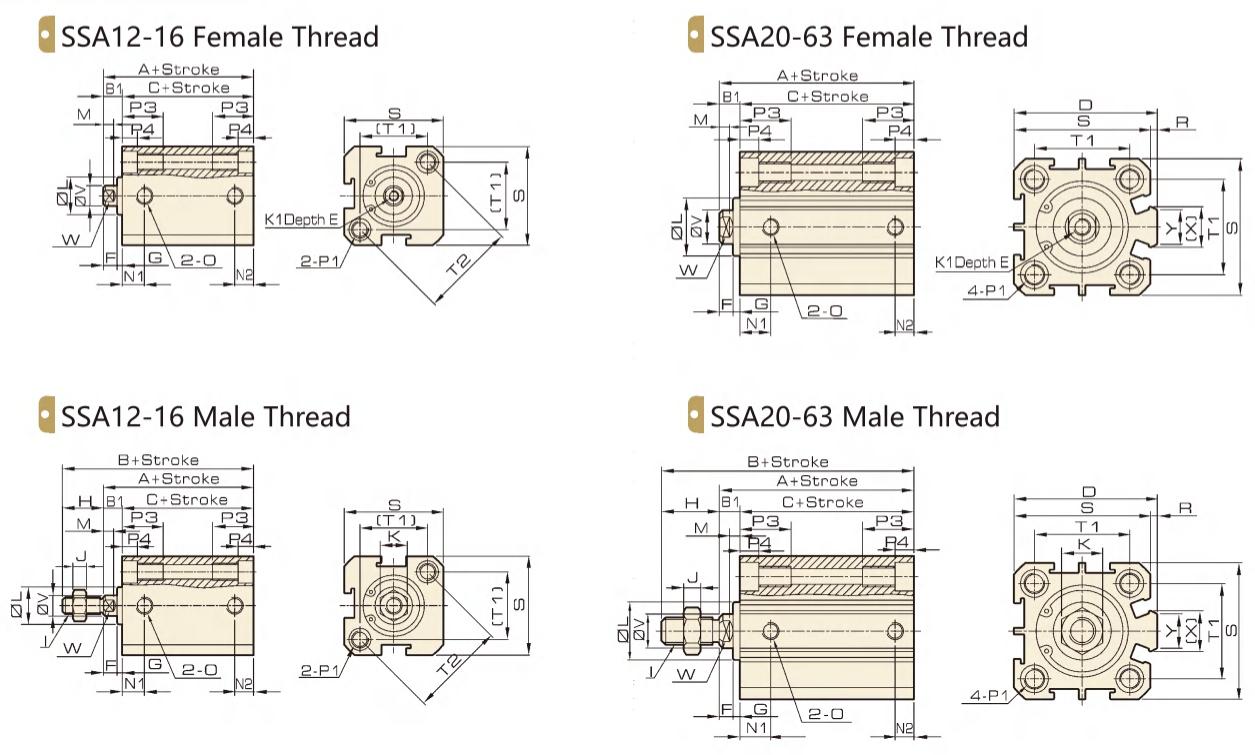

Overall Dimension

Dimension

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M
Type	Standard	With Magnet	Standard	With Magnet	Standard	With Magnet	B1	D	E	F	G	H	I	J	K	K1	L	M
12	22	32	34	44	17	27	5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	10	3
16	24	34	36	46	18.5	28.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	11	3
20	25	35	40	50	19.5	29.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7	13	3
25	27	37	44	54	21	31	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8	17	3
32	31.5	41.5	49.5	59.5	24.5	34.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0	22	3
40	33	43	61	71	26	36	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25	28	3
50	37	47	65	75	28	38	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5	38	3
63	41	51	69	79	32	42	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5	40	3
80	52	62	85	95	41	51	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5	45	4
100	63	73	101	111	51	61	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5	55	4

Bore/Symbol	N1		N2		D	P1	P3	P4	R	S	T1	T2	V	W	X	Y
Stroke	S=5	S>5	S=5	S>5	D	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	7.5		5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	8		5	5.5	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	8.5		5.5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	9		5.5		M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	2	40	28	-	10	8	12	10
32	9		6.5	8	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	6	44	34	-	12	10	18	14
40	9		7.5		G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	8	10.5	8	10.5	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	9.5	11	9.5	11	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	11.5	14	11.5	14	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	10	94	74	-	25	22	36	26
100	15	20	15	18	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	10	114	90	-	32	27	35.5	26

Overall Dimension

Dimension

Bore/ Symbol	A				B				C				B1	D	E	F	G	H	I	J	K	K1
Type	Standard		With Magnet		Standard		With Magnet		Standard		With Magnet
Stroke	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S<10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30
12	32	42	42	52	44	54	54	64	27	37	37	47	5	-	6	4	2	12	M5x0.8	4	8	M3x0.5
16	34	44	44	54	46	56	56	66	28.5	38.5	38.5	48.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5
20	35	45	45	55	50	60	60	70	29.5	39.5	39.5	49.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7
25	37	47	47	57	54	64	64	74	31	41	41	51	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8
32	41.5	51.5	51.5	61.5	59.5	69.5	69.5	79.5	34.5	44.5	44.5	54.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0
40	43	53	53	63	71	81	81	91	36	46	46	56	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25
50	47	57	57	67	75	85	85	95	38	48	48	58	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5
63	51	61	61	71	79	89	89	99	42	52	52	62	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5
80	62	72	72	82	95	105	105	115	51	61	61	71	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5
100	73	83	83	93	111	121	121	131	61	71	71	81	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5

Bore/Symbol	L	M	N1		N2		O	P1	P3	P4	D	B	T1	T2	V	W	X	Y
Stroke	L	M	S=5	S>5	S=5	S>5	O	P1	P3	P4	D	B	T1	T2	V	W	X	Y
12	10	3	7.5		5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5		25	16.3	23	6	5	-	-
16	11	3	8		5	5.5	MSx0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	13	3	8.5		5.5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	17	3	9		5.5		M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	2	40	28	-	10	8	12	10
32	22	3	9		6.5	8	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	6	44	34	-	12	10	18	14
40	28	3	9		7.5		G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	38	3	8	10.5	8	10.5	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	40	3	9.5	11	9.5	11	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	45	4	11.5	14	11.5	14	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	10	94	74	-	25	22	36	26
100	55	4	15	20	15	18	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	10	114	90	-	32	27	35.5	26

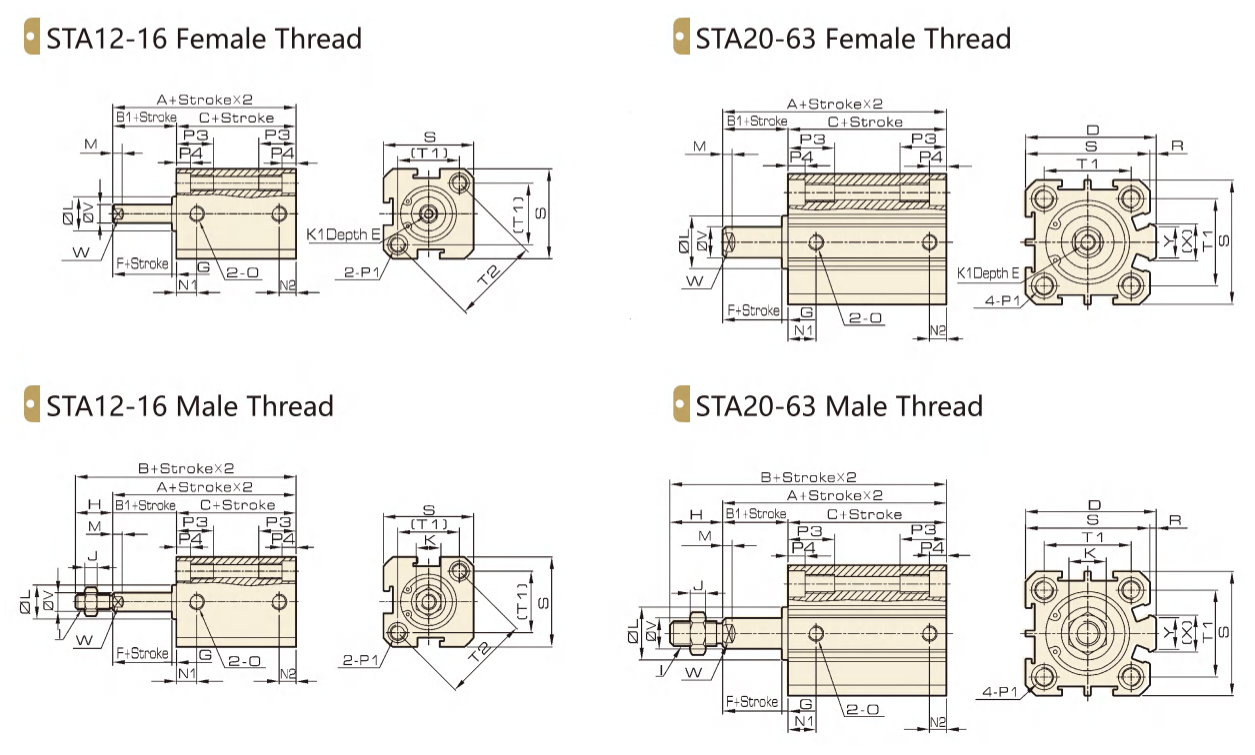

Overall Dimension

Dimension

Bore/Symbol	A				B				C				B1	D	E	F	G	H	I	J	K	K1
Type	Standard		With Magnet		Standard		With Magnet		Standard		With Magnet
Stroke	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30	0 <S≤10	10 <S≤30
12	32	42	42	52	44	54	54	64	27	37	37	47	5	_	6	4	2	12	M5x0.8	4	8	M3x0.5
16	34	44	44	54	46	56	56	66	28.5	38.5	38.5	48.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5
20	35	45	45	55	50	60	60	70	29.5	39.5	39.5	49.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7
25	37	47	47	57	54	64	64	74	31	41	41	51	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8
32	41.5	51.5	51.5	61.5	59.5	69.5	69.5	79.5	34.5	44.5	44.5	54.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0
40	43	53	53	63	71	81	81	91	36	46	46	56	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25
50	47	57	57	67	75	85	85	95	38	48	48	58	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5
63	51	61	61	71	79	89	89	99	42	52	52	62	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5
80	62	72	72	82	95	105	105	115	51	61	61	71	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5
100	73	83	83	93	111	121	121	131	61	71	71	81	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5

Bore/Symbol	L	M	N1		N2		O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
Stroke	L	M	S=5	S>5	S=5	S>5	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	10	3	7.5		5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	11	3	8		5	5.5	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	13	3	8.5		5.5		M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	17	3	9		5.5		M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	2	40	28	-	10	8	12	10
32	22	3	9		6.5	8	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	6	44	34	-	12	10	18	14
40	28	3	9		7.5		G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	38	3	8	10.5	8	10.5	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	40	3	9.5	11	9.5	11	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	45	4	11.5	14	11.5	14	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	10	94	74	-	25	22	36	26
100	55	4	15	20	15	18	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	10	114	90	-	32	27	35.5	26

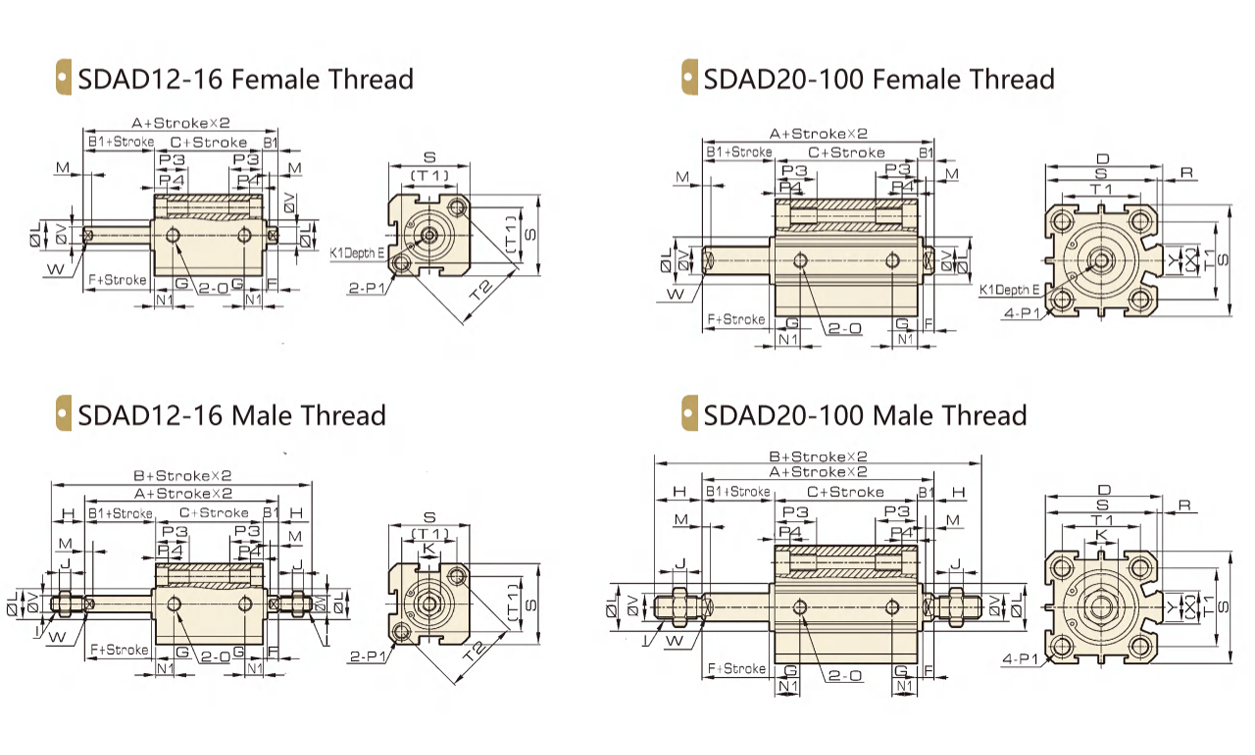

Overall Dimension

Dimension

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With Magnet	Standard	With Magnet	Standard	With Magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	27	37	51	61	17	27	5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	10	3	5.5	6.5
16	29.5	39.5	53.5	63.5	18.5	28.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	11	3	6.5	7.5
20	30.5	40.5	60.5	70.5	19.5	29.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7	13	3	7.5
25	33	43	67	77	21	31	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8	17	3	8
32	38.5	48.5	74.5	84.5	24.5	34.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0	22	3	8	9
40	40	50	96	106	26	36	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25	28	3	8	10
50	46	56	102	112	28	38	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5	38	3	8	10.5
63	50	60	106	116	32	42	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5	40	3	9.5	11
80	63	73	129	139	41	51	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5	45	4	11.5	14
100	75	85	151	161	51	61	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5	55	4	15	20

Bore/Symbol	O	P1	P3	P4	R	S	T1	T2	V	W	X	Y
12	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	25	16.3	23	6	5	-	-
16	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	-	29	19.8	28	6	5	-	-
20	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	2	34	24	-	8	6	11.2	10
25	M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	2	40	28	-	10	8	12	10
32	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	6	44	34	-	12	10	18	14
40	G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	6.5	52	40	-	16	14	21	14
50	G1/4	Double Side: ∅11, Cog: M8x1.2S, Through Hole: ∅6.7	25	8.5	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	10	114	90	-	32	27	35.5	26

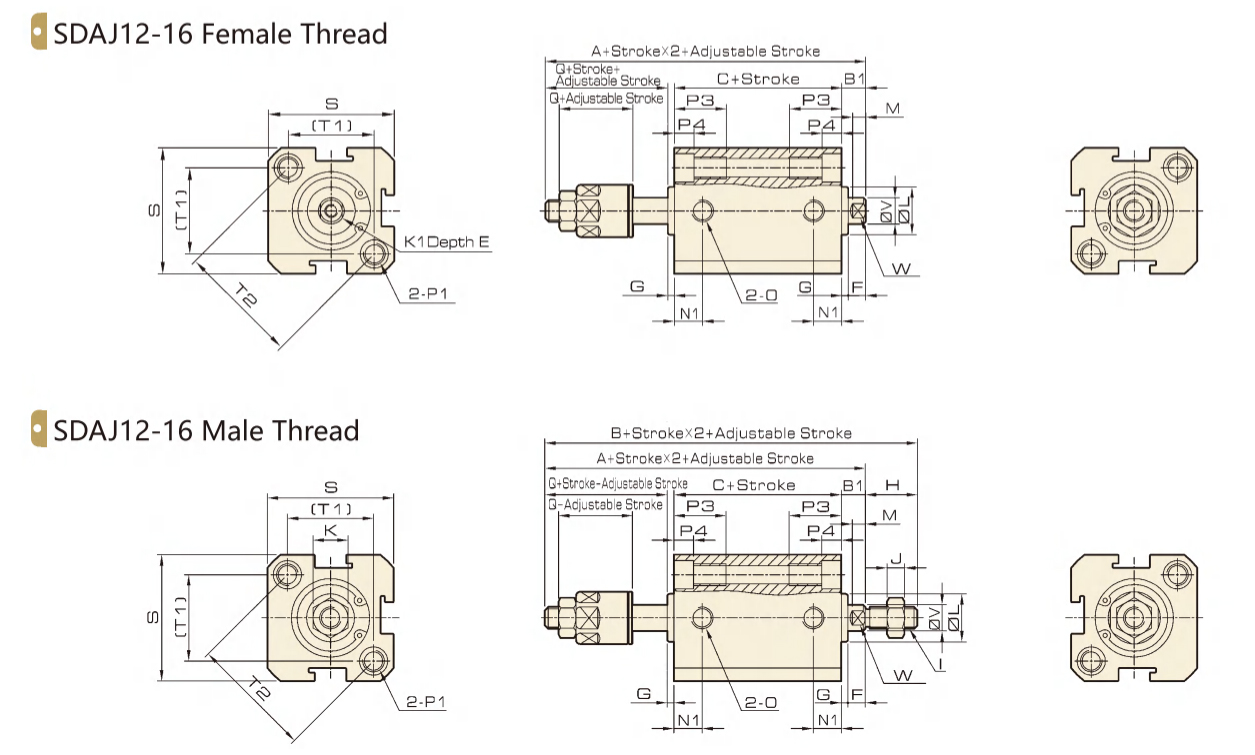

Overall Dimension

Dimension

Bore/Symbol	A		B		c		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With Magnet	Standard	With Magnet	Standard	With Magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	41	51	53	63	17	27	5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	10	3	5.5	6.5
16	43	53	55	65	18.5	28.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	11	3	6.5	7.5
20	47.5	57.5	62.5	72.5	19.5	29.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7	13	3	7.5
25	53	63	70	80	21	31	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8	17	3	8
32	61.5	71.5	79.5	89.5	24.5	34.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0	22	3	8	9
40	64	74	92	102	26	36	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25	28	3	8	10
50	70	80	98	108	28	38	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5	38	3	8	10.5
63	74	84	102	112	32	42	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5	40	3	9.5	11
80	92.5	102.5	125.5	135.5	41	51	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5	45	4	11.5	14
100	110.5	120.5	148.5	158.5	51	61	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5	55	4	15	20

Bore/Symbol	O	P1	P3	P4	Q	R	S	T1	T2	V	W	X	Y
12	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	17	-	25	16.3	23	6	5	-	-
16	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	17	-	29	19.8	28	6	5	-	-
20	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	21	2	34	24	-	8	6	11.2	10
25	M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	24	2	40	28	-	10	8	12	10
32	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	27	6	44	34	-	12	10	18	14
40	G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	28	6.5	52	40	-	16	14	21	14
50	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	29	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	29	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	35.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	42.5	10	114	90	-	32	27	35.5	26

Overall Dimension

Dimension

Bore/Symbol	A		B		C		B1	D	E	F	G	H	I	J	K	K1	L	M	N1
Type	Standard	With Magnet	Standard	With Magnet	Standard	With Magnet	B1	D	E	F	G	H	I	J	K	K1	L	M	S=5	S>5
12	41	51	53	63	17	27	5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	10	3	5.5	6.5
16	43	53	55	65	18.5	28.5	5.5	-	6	4	2	12	M5x0.8	4	8	M3x0.5	11	3	6.5	7.5
20	47.5	57.5	62.5	72.5	19.5	29.5	5.5	36	8	4	1.5	15	M6x1.0	5	10	M4x0.7	13	3	7.5
25	53	63	70	80	21	31	6	42	10	4	2	17	M8x1.25	6	14	M5x0.8	17	3	8
32	61.5	71.5	79.5	89.5	24.5	34.5	7	50	12	4	3	18	M10x1.25	6	17	M6x1.0	22	3	8	9
40	64	74	92	102	26	36	7	58.5	12	4	3	28	M14x1.5	8	22	M8x1.25	28	3	8	10
50	70	80	98	108	28	38	9	71.5	15	5	4	28	M18x1.5	9	27	M10x1.5	38	3	8	10.5
63	74	84	102	112	32	42	9	84.5	15	5	4	28	M18x1.5	9	27	M10x1.5	40	3	9.5	11
80	92.5	102.5	125.5	135.5	41	51	11	104	20	6	5	33	M22x1.5	13	32	M14x1.5	45	4	11.5	14
100	110.5	120.5	148.5	158.5	51	61	12	124	20	7	5	38	M26x1.5	12	36	M18x1.5	55	4	15	20

Bore/Symbol	O	P1	P3	P4	Q	R	S	T1	T2	V	W	X	Y
12	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	17	-	25	16.3	23	6	5		-
16	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	12	4.5	17	-	29	19.8	28	6	5		-
20	M5x0.8	Double Side: ∅6.5, Cog: M5x0.8, Through Hole: ∅4.2	14	4.5	21	2	34	24	-	8	6	11.2	10
25	M5x0.8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	15	5.5	24	2	40	28	-	10	8	12	10
32	G1/8	Double Side: ∅8.2, Cog: M6x1, Through Hole: ∅4.6	16	5.5	27	6	44	34	-	12	10	18	14
40	G1/8	Double Side: ∅10, Cog: M8x1.25, Through Hole: ∅6.7	20	7.5	28	6.5	52	40	-	16	14	21	14
50	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	29	9.5	62	48	-	20	17	29.5	19
63	G1/4	Double Side: ∅11, Cog: M8x1.25, Through Hole: ∅6.7	25	8.5	29	9.5	75	60	-	20	17	26	19
80	G3/8	Double Side: ∅15, Cog: M12x1.75, Through Hole: ∅10.3	25	10.5	35.5	10	94	74	-	25	22	36	26
100	G3/8	Double Side: ∅17.5, Cog: M14x2, Through Hole: ∅11.3	30	13	42.5	10	114	90	-	32	27	35.5	26

Control Component

Valve Terminal

Execution Component

Air Source Unit

Pneumatic Accessory

Download

2D/3D CAD

Rail transit

Automobile

Textile machinery

Medical instrument

Industrial Automation

Innovation

Quality

Achievement

Company Profile

History

News

Career Opportunities

Web Menu

Product Search

Language

Exit Menu

Thin Cylinder

Products

SDA Series Compact Cylinder

CONTACT jelpc

Domestic Sales Department:

International Trade Department:

General Office:

Web Menu

Product Search

Language

Share

Exit Menu

Thin Cylinder

Products

SDA Series Compact Cylinder

CONTACT jelpc

Domestic Sales Department:

International Trade Department:

General Office:
