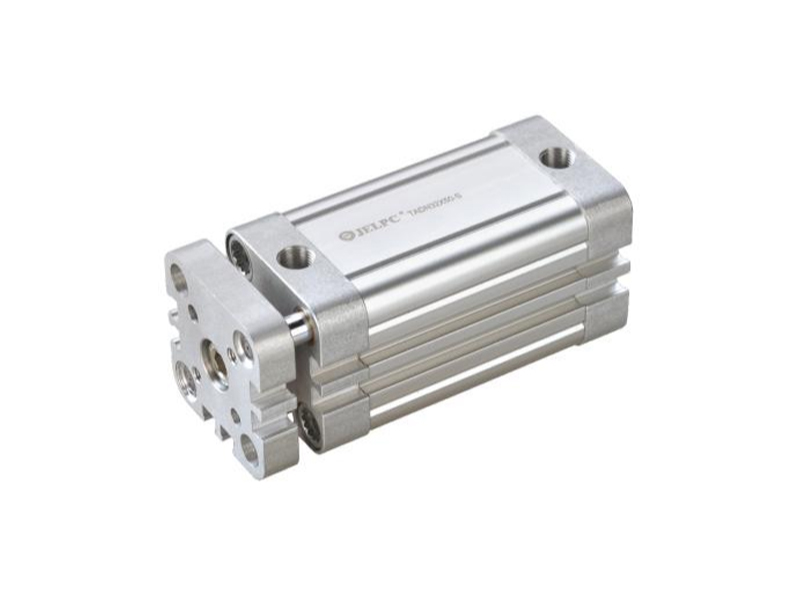

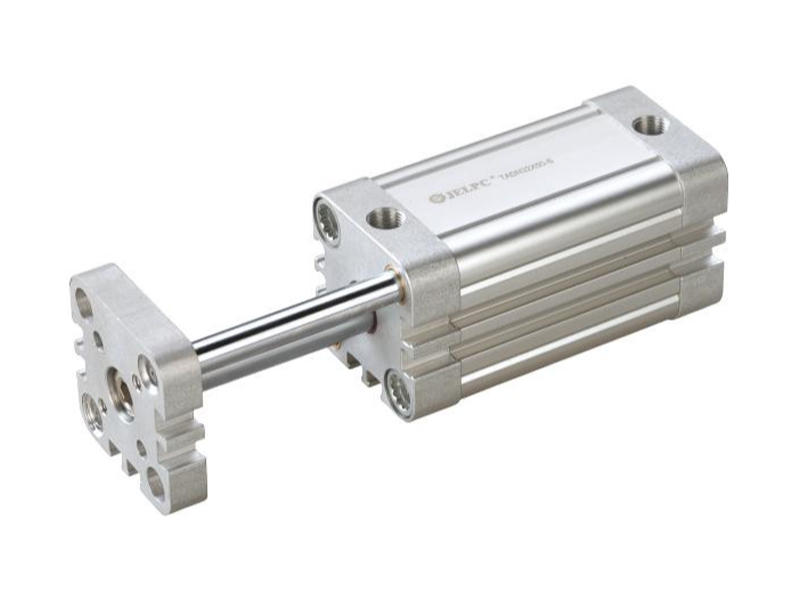

TADN Series Guide Cylinder

TADN Series Guide Cylinder

Features:

1. TADN series compact cylinder accord with ISO21287 standard.
2. TADN series cylinder with compact structure, derived lots of variety types, and wide range of applications
3. Both end use rubber gasket to absorb the remaining energy of the high speed movement and the machine cycle.
4. Every ammsebly way has large number of accessories, so it is very simple.
5. There are two reverse bar positioning on each side to enhance the load capacity for smoother operation.

  • Product parameters

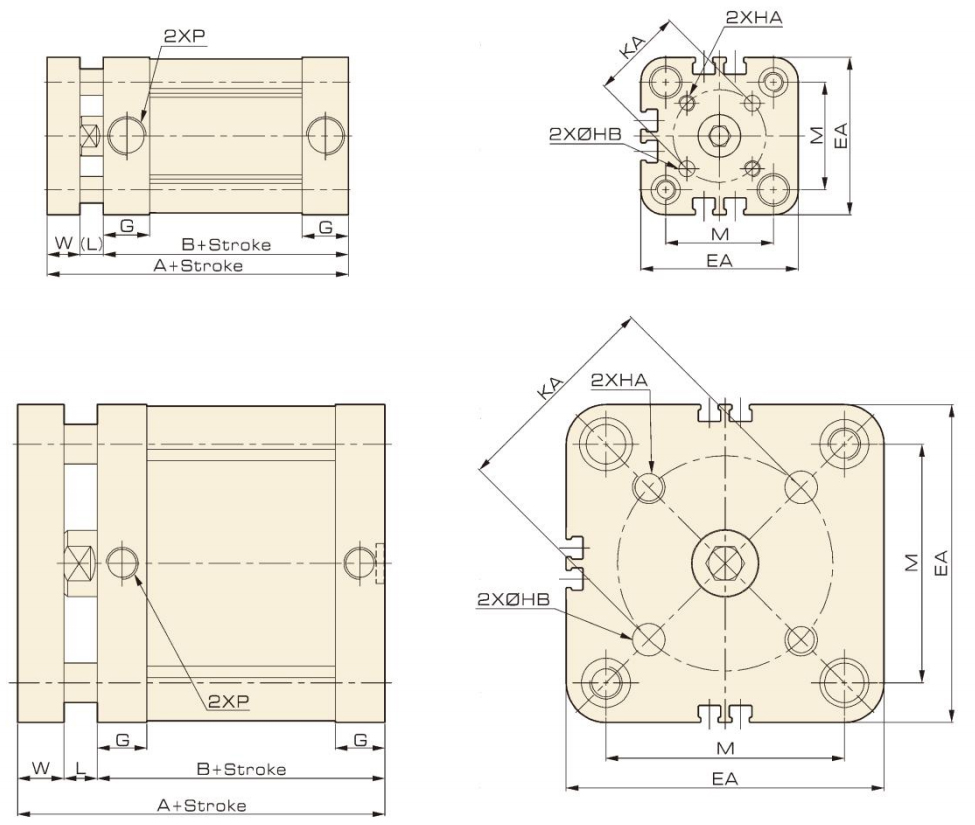

  • Product size

Internal Structure

Parts

Number Name Number Name
1  Fixed plate 11  C ring
2  Socket head screw 12  Anti-friction seal
3  Guide rod 13  O ring
4  Piston rod 14  Cover screw
5  Dust ring 15  Small gasket
6  Copper tube 16  Hexagon nut
7  Front cover 17  Piston
8  Bearing 18  Magnet
9  Anti-collision gasket 19  Back cover
10  O ring 20  Barrel

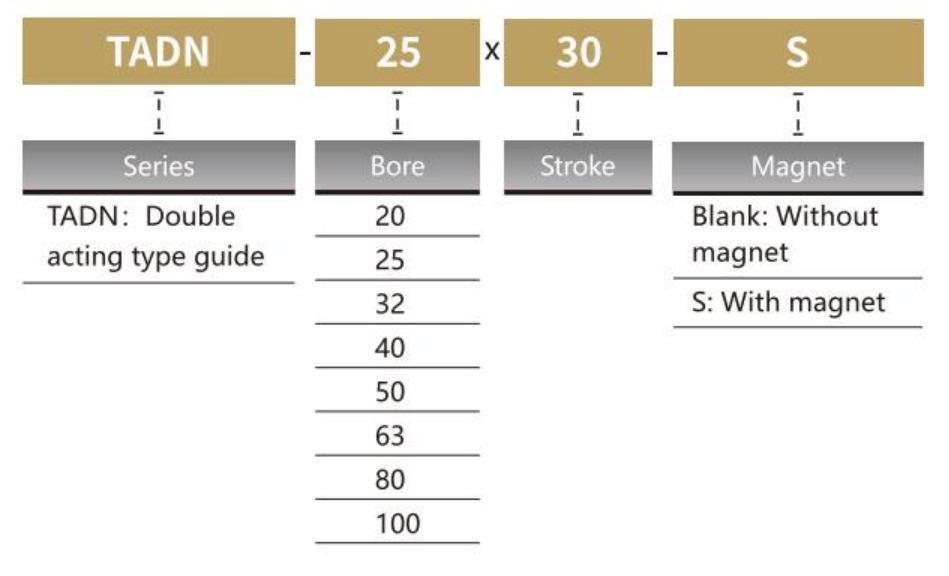

Ordering Code

*Sensor model JEL-30, please refer to P173 for the specific ordering code.


Specification

Bore (mm)

20

25

32

40

50

63

80

100

Operation

Double Acting

Working Medium

Air

Standard Stroke

5 ~ 100mm

Operating Pressure Range

0.1~1.0MPa

Proof Pressure

1.5MPa

Operating Temperature Range

-20 〜80°C

Operating Speed Range

30〜500mm/s

Port Size

M5x0.8

G1/8



Stroke

 Bore Standard Stroke Max. Stroke
ADN/ADNJ
ADND		 20  5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 100
25  5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 125 150 150
32/40 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 125 150 160 175 200 200
50/63 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 125 150 160 175 200 225 250 250
80/100 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 125 150 160 175 200 225 250 275 300 300
TADN 20/25/32/40/50/63/80 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 100
