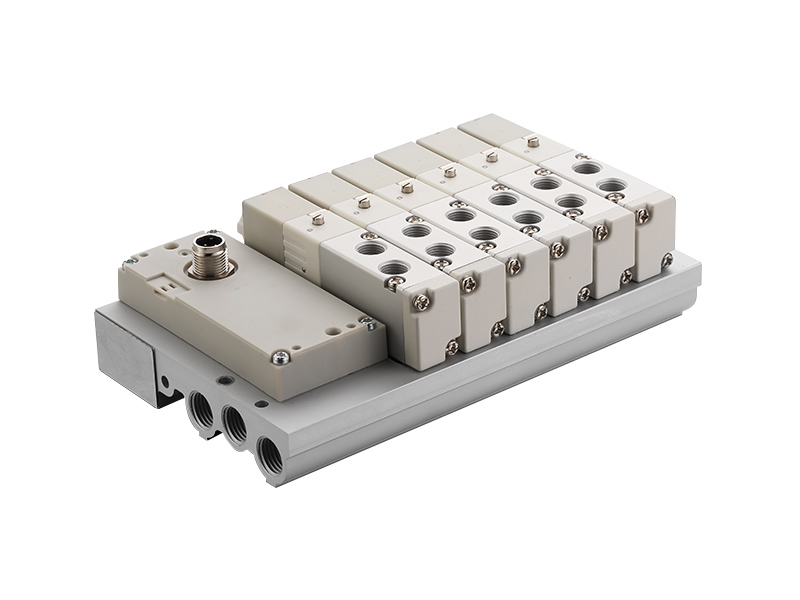

JEL-FE Series IO-Link Control Valve Terminal

JEL-FE Series IO-Link Control Valve Terminal

Key Features:

● Inlet and exhaust ports are centrally arranged, compact interface

● D-SUB25 and l0-Link interface to save wiring time and labor cost

● Each valve is equipped with working indicator light, convenient for debugging

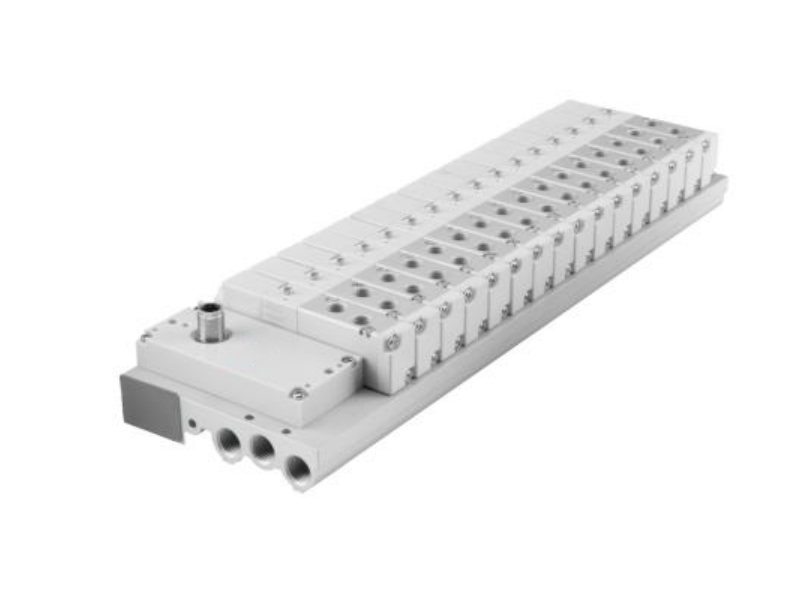

● Up to 24 single coil valves can be integrated

● Double coil solutions available

  • Product parameters

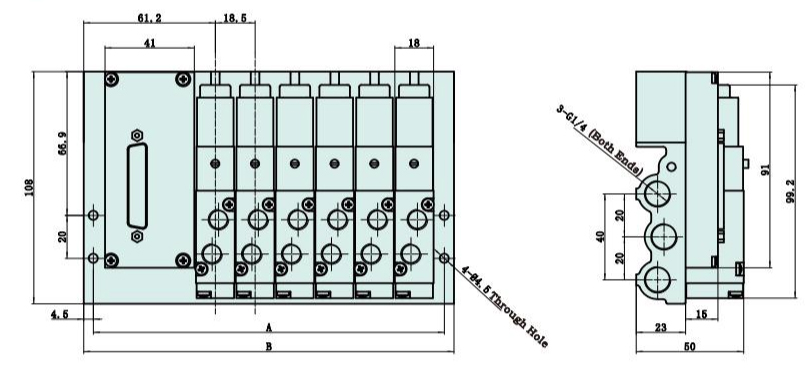

  • Product size

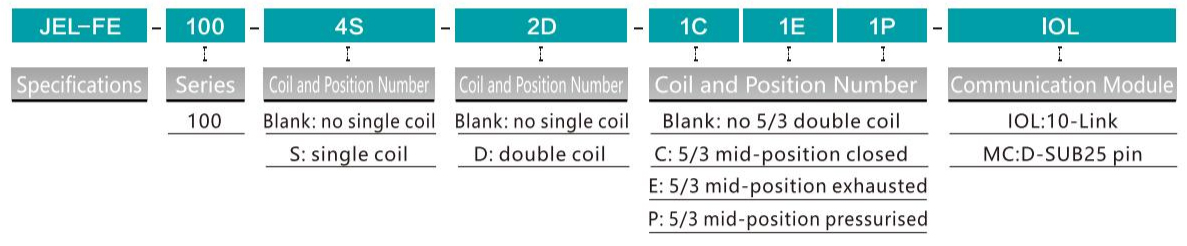

Order Code

Spedifications

Model No.

JEL-FE

Function

5/2 single coil

5/2 double coil

5/3 double coil

Net Section Area

12mm²(CV=0.67)

9mm²(CV=0.5)

Interface Size

Inlet and exhaust = G1/4 Working = G1/8

Working Media

40 Micron filtered Air

Action Mode

Internal pilot

Applicable Pressure

0.15~0.8Mpa

Max Pressure

1.2Mpa

Working Temperature

-10°〜60°C

Voltage Range

24VDC±10%

Power Consumption

Single valve 2.5W

Protection Grades

LevelF

Max Frequency

5/s

Minimum Excitation Time

0.05s



Accessories

JEL-FE Series Cable Order Code
Communication(DB25female-scatter)2.5M S1WA25-K-2.5
Communication(DB25female-scatter)5M S1WA25-K-5
