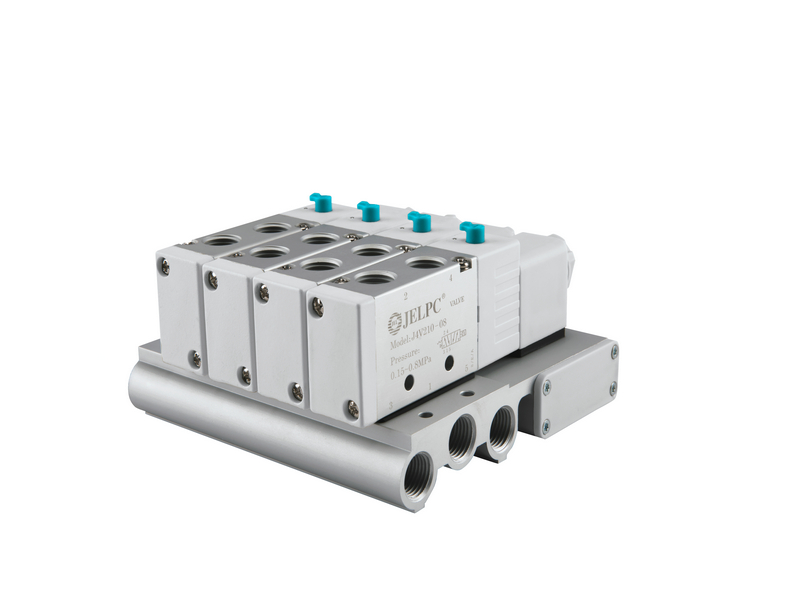

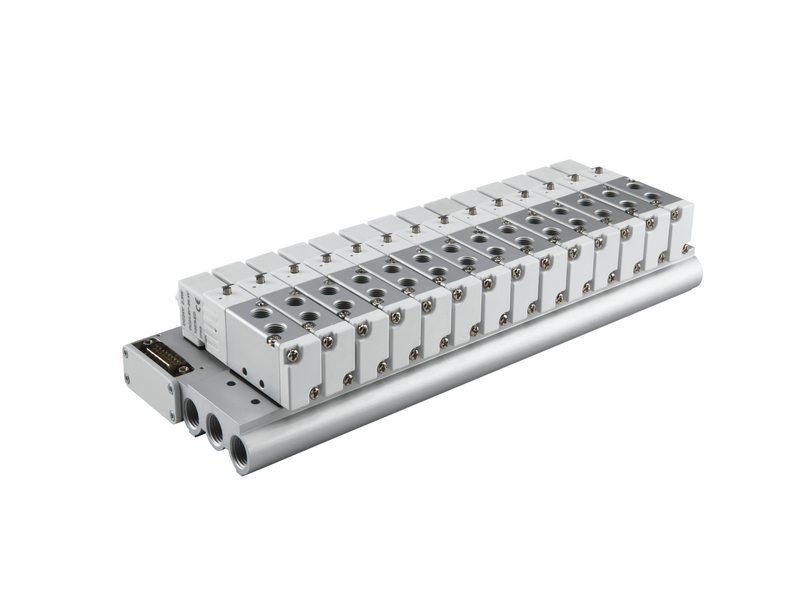

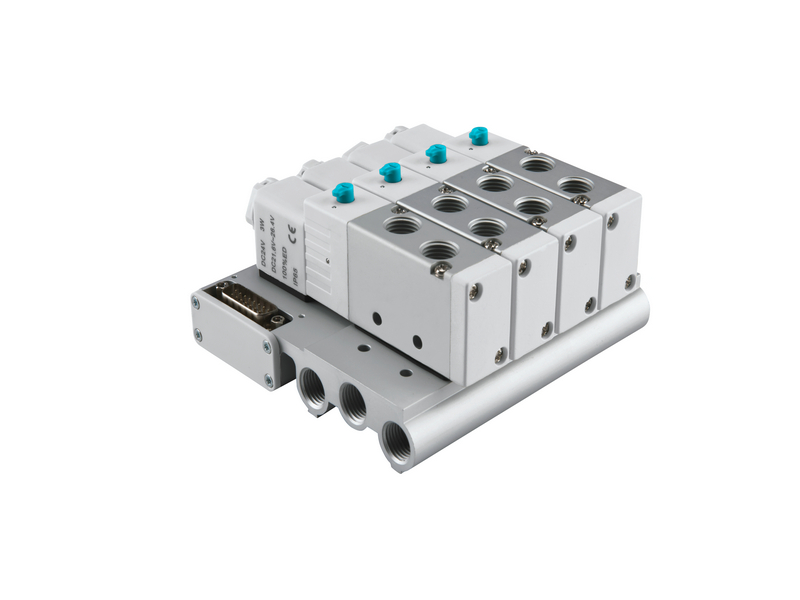

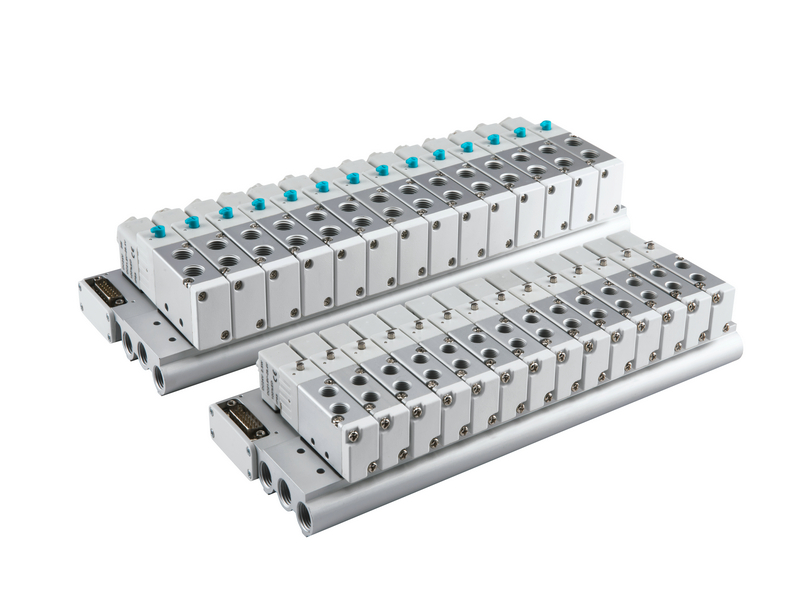

MCS2 Series Multi-pin Control Valve Terminal

MCS2 Series Multi-pin Control Valve Terminal

Key Features:

● Inlet and exhaust ports are centrally arranged, compact interface

● D-SUB15 interface to save wiring time and labor cost

● Each valve is equipped with working indicator light, convenient for debugging

● Up to 14 single coil valves can be integrated

● Double coil solutions available

  • Product parameters
  • Product size

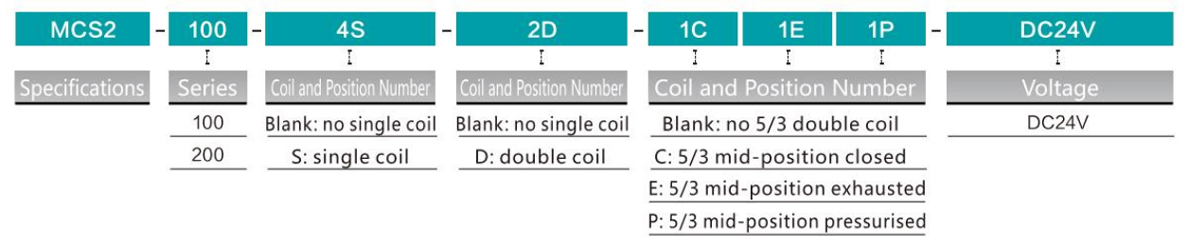

Order Code

Specifications

Model No.

100 Series

200 Series

Function

5/2 single coil

5/2 double coil

5/3 double coil

5/2 single coil

5/2 double coil

5/3 double coil

Net Section Area

12mm2(CV=0.67)

9mm2(CV=0.5)

16mm2(CV=0.89)

12mm2(CV=0.5)

Interface Size

Inlet and exhaust=G1/4 Working = G1/8

Inlet and exhaust = G 1/4 Working = G1/4

Working Media

40 Micron filtered Air

Action Mode

Internal pilot

Applicable Pressure

0.15 ~0.8Mpa

Max Pressure

1.2Mpa

Working Temperature

-10°~60°C

Voltage Range

24VDC±10%

Power Consumption

Single valve 2.5W

Single valve 3W

Protection Grades

Level F

Max Frequency

5/s

Minimum Excitation Time

0.05s



Accessories

MCS2 Series Cable Order Code
MCS2 Series 3M DB15-S-14-300
MCS2 Series 5M DB15-S-14-500
