2L Series Brass

2L Series Brass

2/2 Way Solenoid Valve

0
Views: 2,528
  • Product parameters

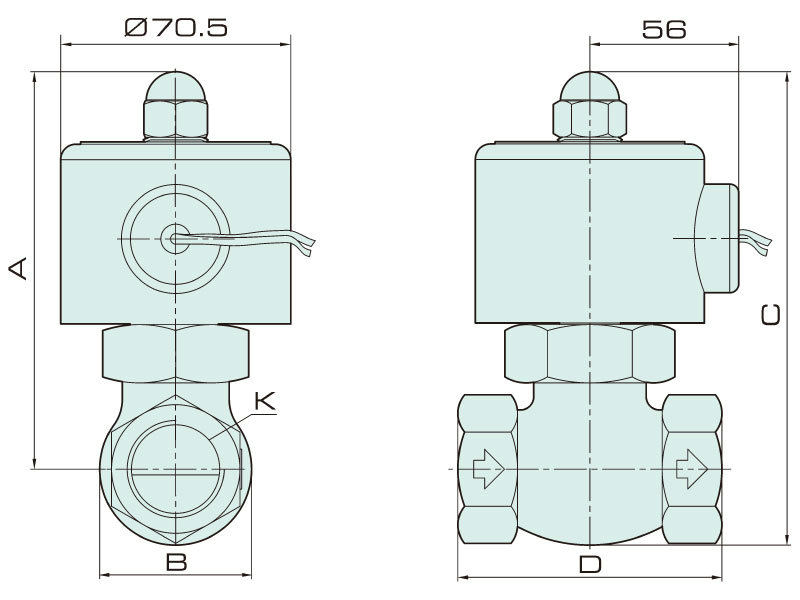

  • Product size

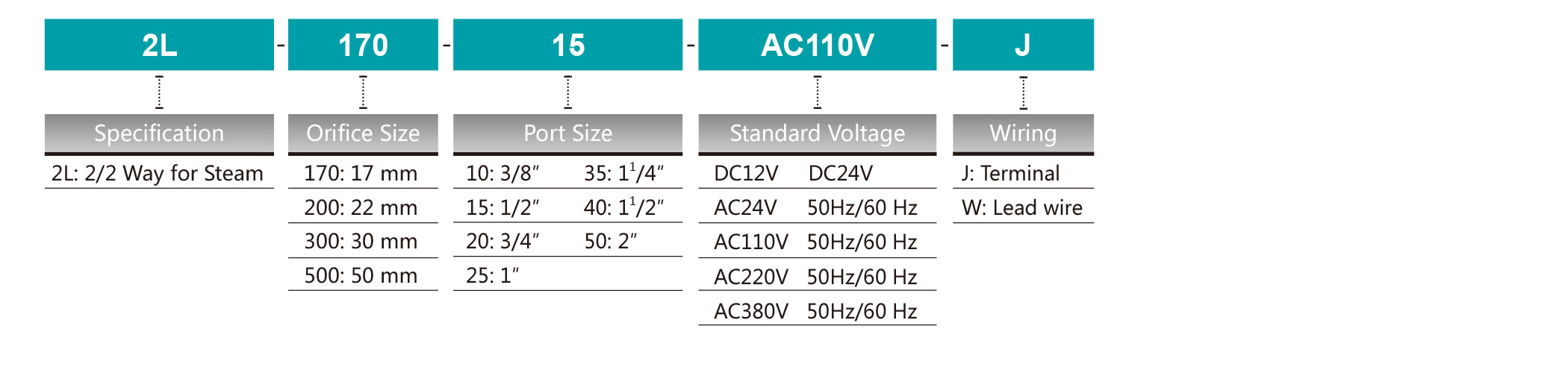

Ordering Code







Symbol







Specification



Model

2L170-10

 2L170-15 2L170-20

2L200-25

2L300-35

 2L300-40

2L500-50

Working Medium

Air, Water, Steam

Operation

Direct

Type

Normal Close

Orifice

17 mm

22 mm

30 mm

50 mm

CV Value

4.8

12

20

48

Port Size

3/8"

 1/2" 3/4"

1"

1¼"

 1½"

2"

Operation Fluid Viscosity

Below 20 CST

Working-pressure

0.1～1.5 MPa

Max. Test Pressure

2.25 MPa

Max. Ambient Temperature

-10～180 ℃

Operating Voltage Tolerance

± 10%

Material of Body

Brass

Material of Oil Seal

PTFE
