2/2 Way Solenoid Valve -Direct Operated

0
Views: 2,075
  • Product parameters

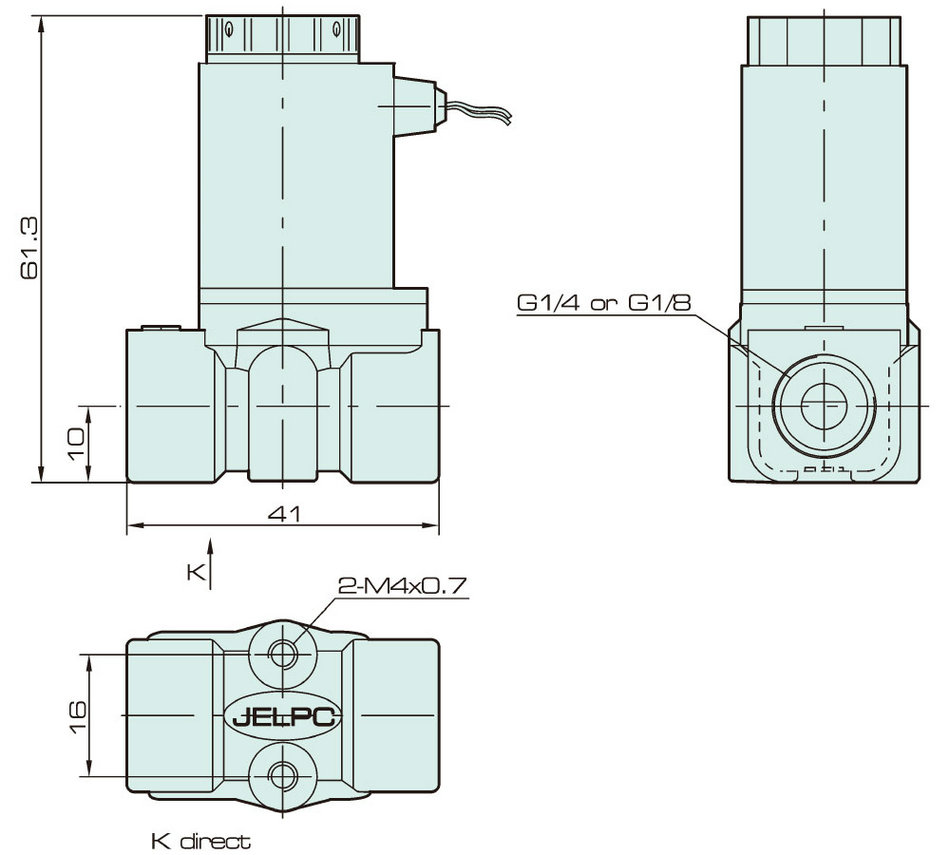

  • Product size

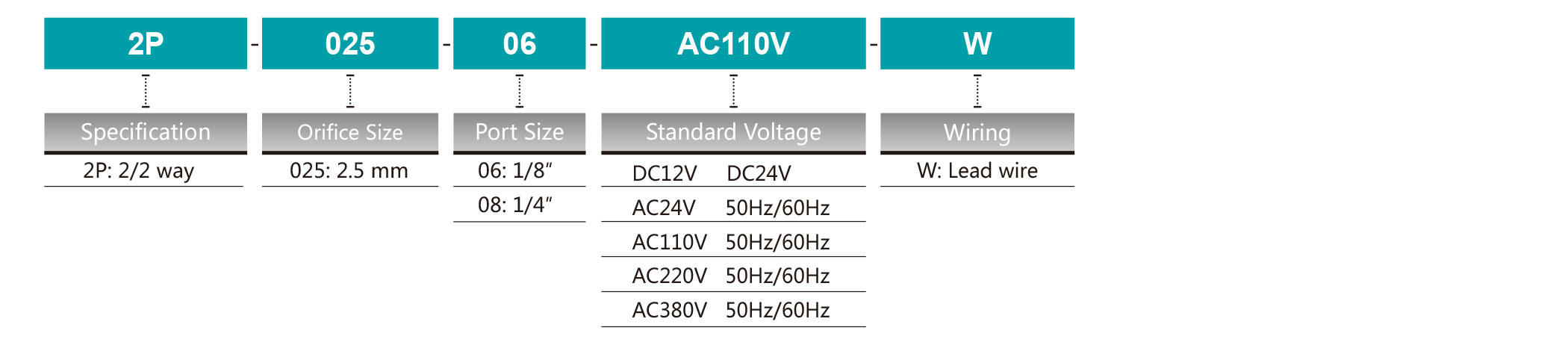

Ordering Code







Symbol







Specification



Model

2P025-06

2P025-08

Working Medium

Air, Water, Oil, Gas

Operation

Direct

Type

Normal Close

Orifice

2.5 mm

CV Value

0.23

Port Size

1/8"

1/4"

Operation Fluid Viscosity

Below 20 CST

Working-pressure

0~0.7 MPa

Max. Test Pressure

1.0 MPa

Max. Ambient Temperature

-10~80℃

Operating Voltage Tolerance

± 10%

Material of Body

Engineering Plastic

Material of Oil Seal

NBRor VITON
