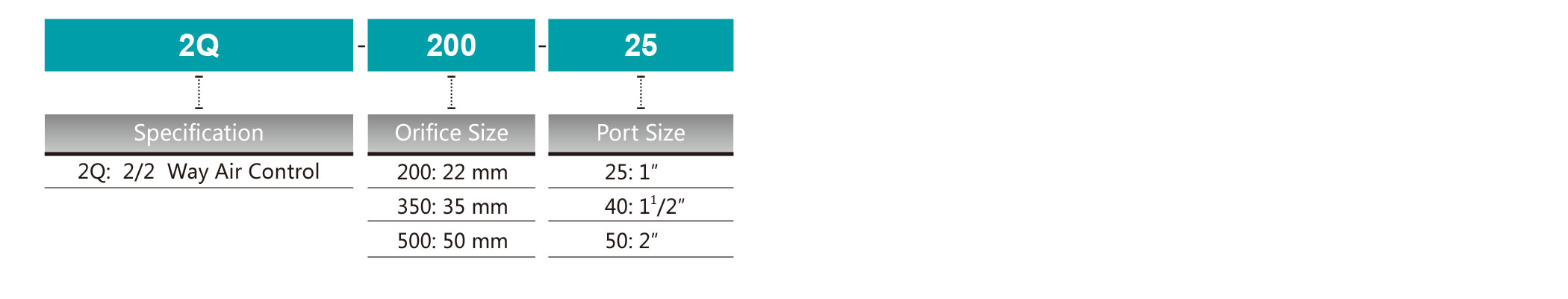

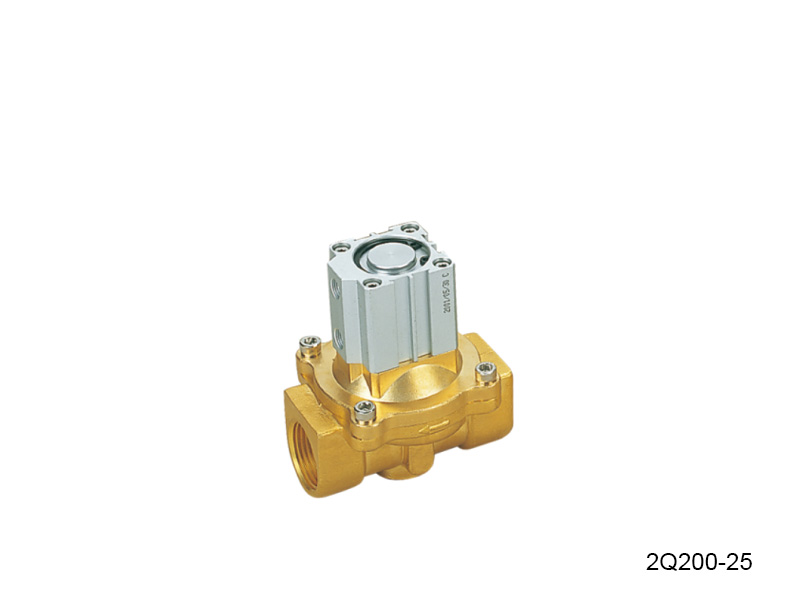

Ordering Code

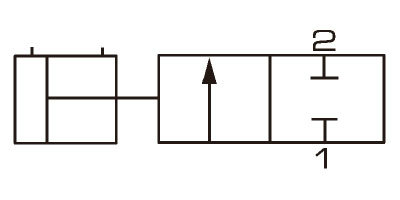

Symbol
Specification
Model | 2Q200-20 | 2Q200-25 | 2Q3 50-40 | 2Q500-50 |
Working Medium | Air, Water, Oil, Gas | |||
Operation | Direct | |||
Orifice | 22mm | 22mm | 35mm | 50mm |
CV Value | 12 | 12 | 24 | 48 |
Port Size | 3/4" | 1" | 1½ | 2" |
Operation Fluid Viscosity | Below 50 CST | |||
Applied pressure Range | 0 ~ 0.7 MPa | |||
Max. Test Pressure | 1.05 MPa | |||
Control pressure Range | 0.3 ~ 0.6 MPa | |||
Ambient Temperature Range | -10 ~ 100 ℃ | |||
Material of Body | Brass | |||
Material of Oil Seal | PTFE | |||
Control Port Size | 2 - G1/8" | 2 - G1/8" | 2 - G1/4" | 2 - G1/4" |

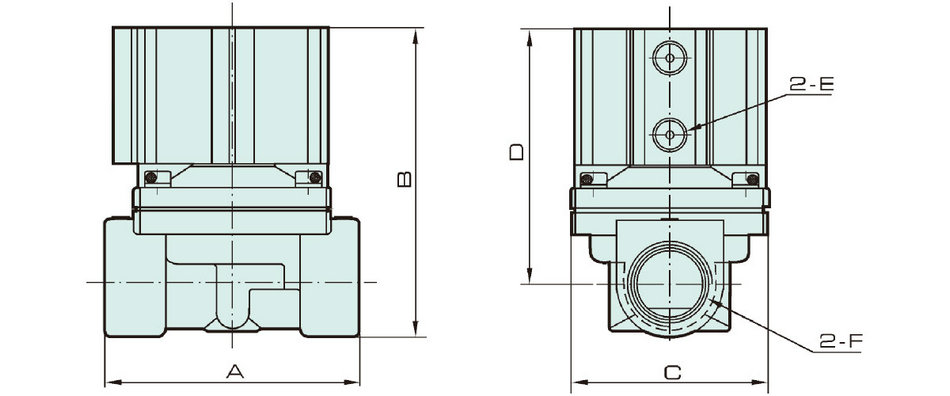

Overall Dimension
Dimension
Model | A | B | C | D | E | F |
2Q200-20 | 99 | 116 | 57 | 95 | G1/8" | PT3/4" |
2Q200-25 | 99 | 116 | 57 | 95 | G1/8" | PT1" |
2Q350-40 | 123 | 146 | 95 | 116 | G1/4" | PT1½" |
2Q500-50 | 170 | 155 | 118 | 114 | G1/4" | PT2" |
