Pneumatic Foot Valve

Pneumatic Foot Valve

Foot Valve

0
Views: 2,366
  • Product parameters

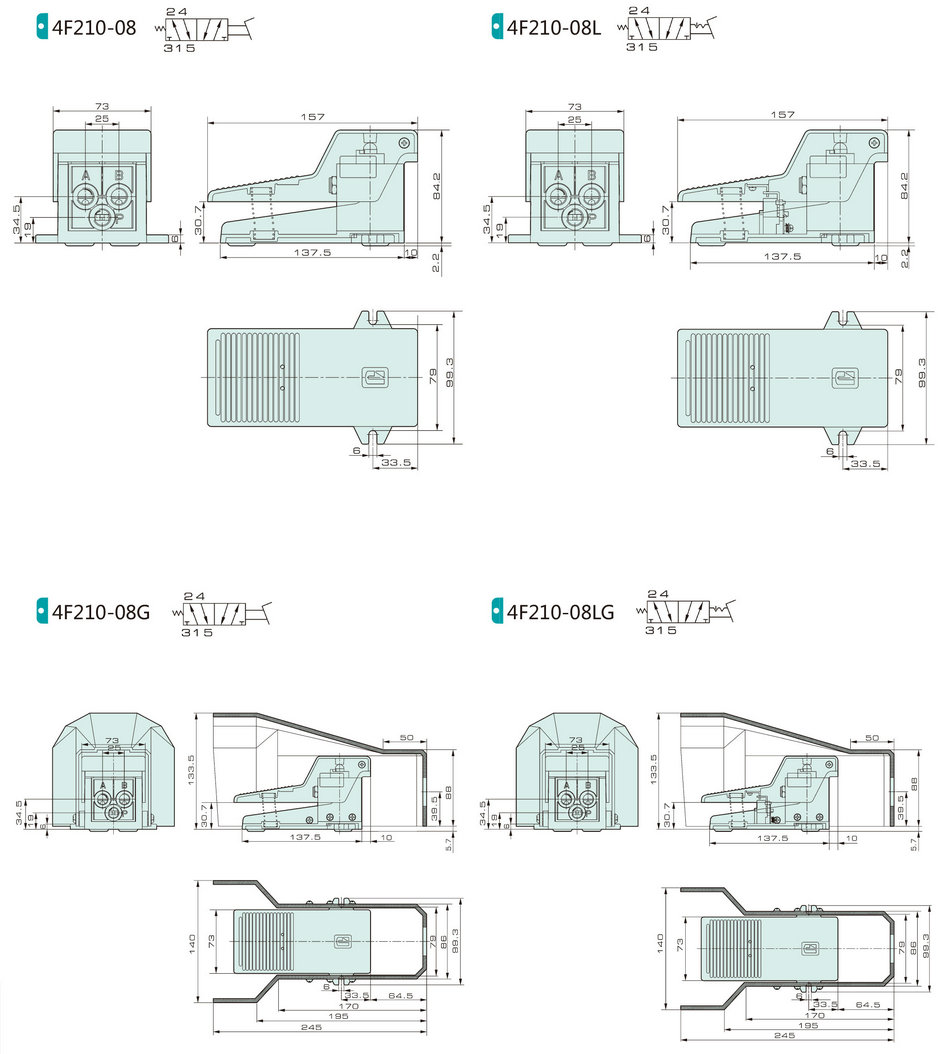

  • Product size

Features

1. Renew apprearance to improve sense quality

2. Renew the lock structure to improve products reliability.

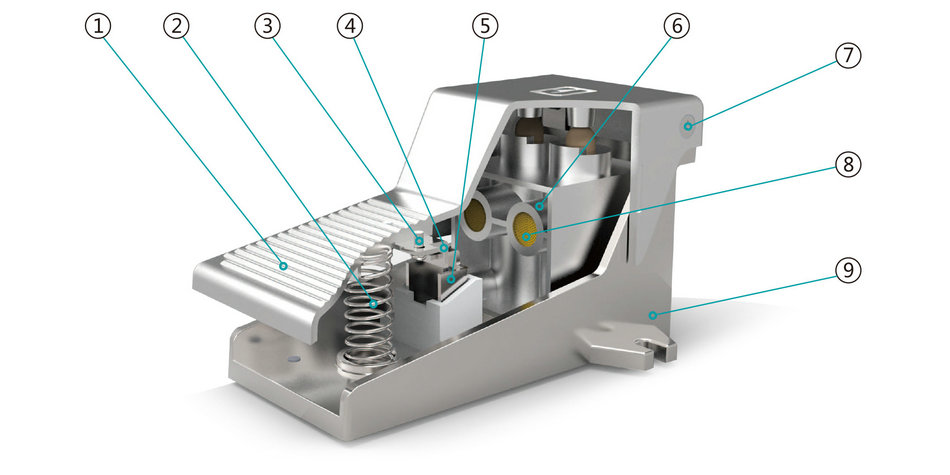

Internal Structure





Parts



Number

Name

Number

Name

Number

Name

l

Pedal

4

Hook

7

Screw

2

Spring

5

Lock

8

Sliencer

3

Screw

6

Valve body

9

Valve base

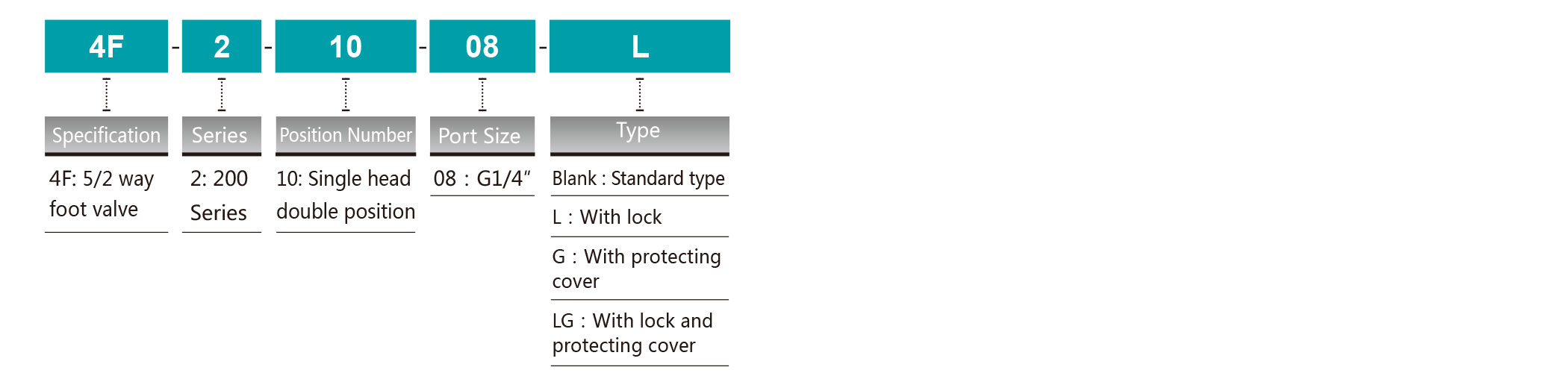

Ordering Code







Specification



Model

4F210-08

 4F210-08L 4F210-08G 4F210-08LG

Working Medium

40 Micron Filtered Air

Position Number

5/2 way

Port Size

Inlet, Outlet, Exhaust Port ＝ G1/4"

Operation

Direct

Working Pressure

0～0.8MPa

Working Temp.

-20～70℃
