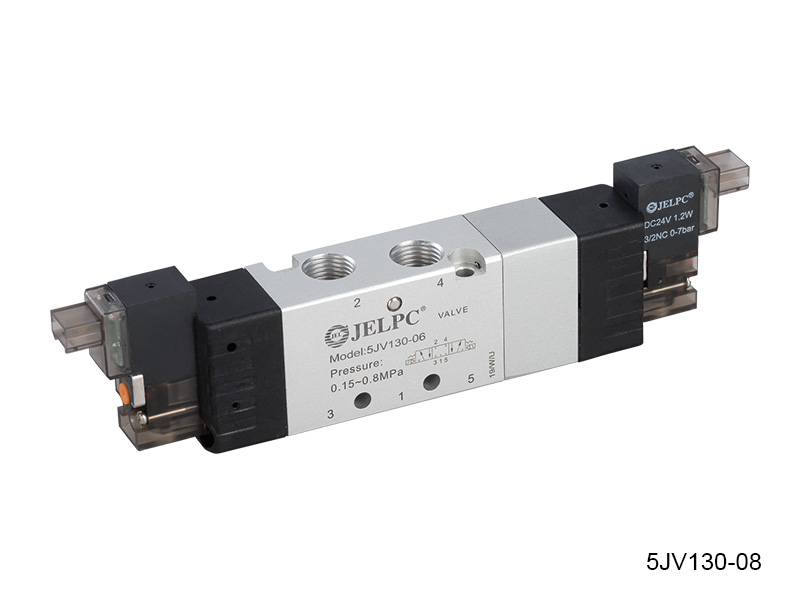

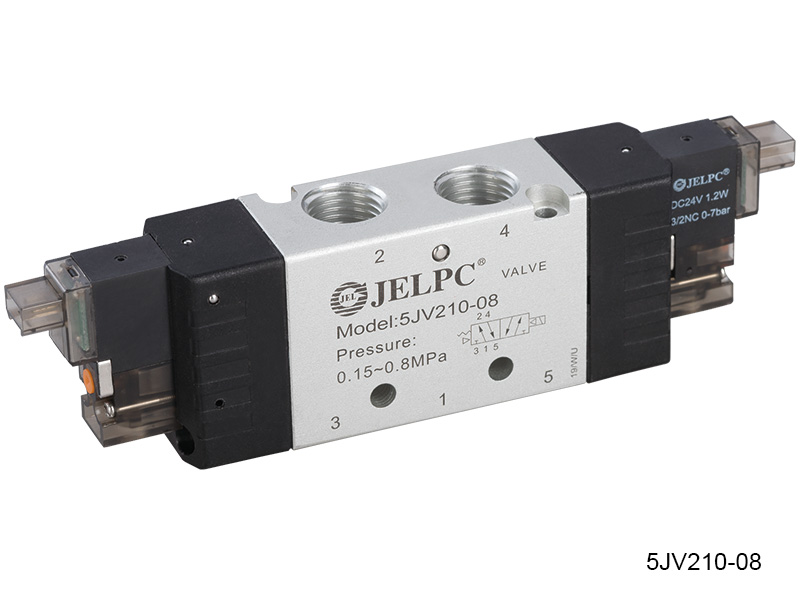

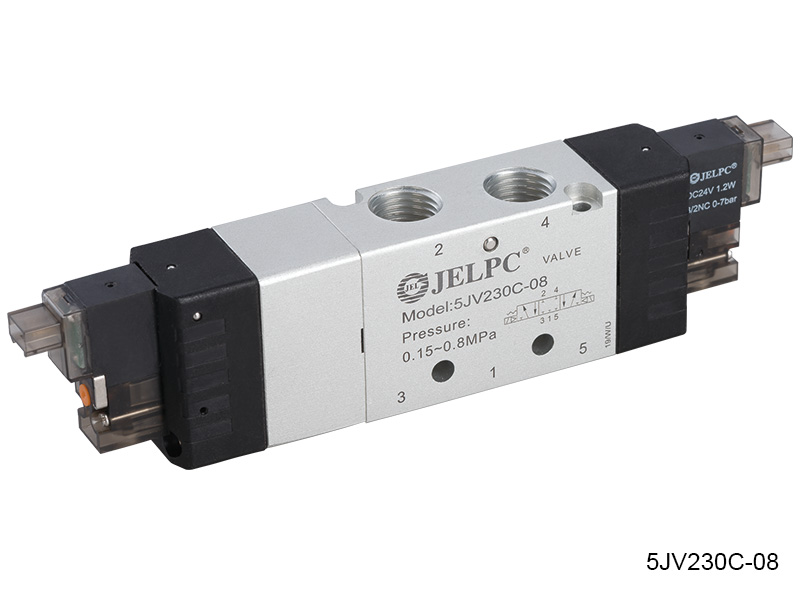

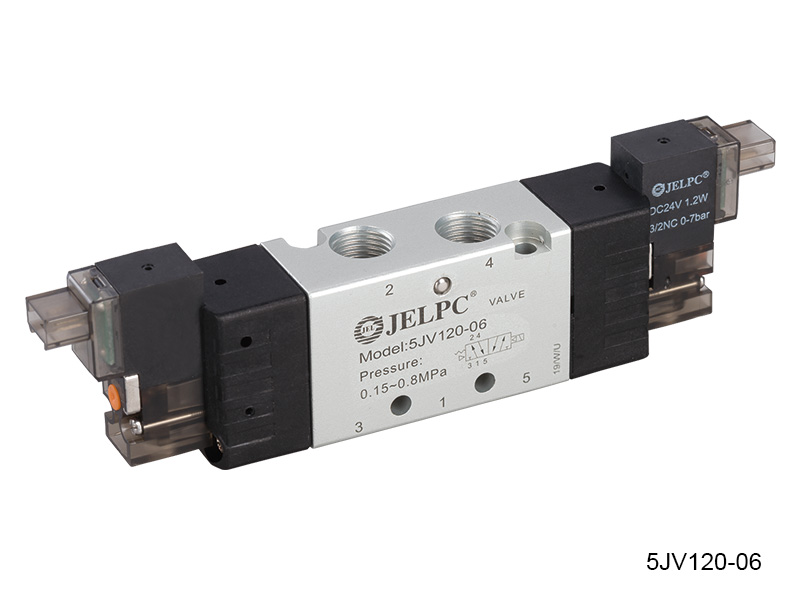

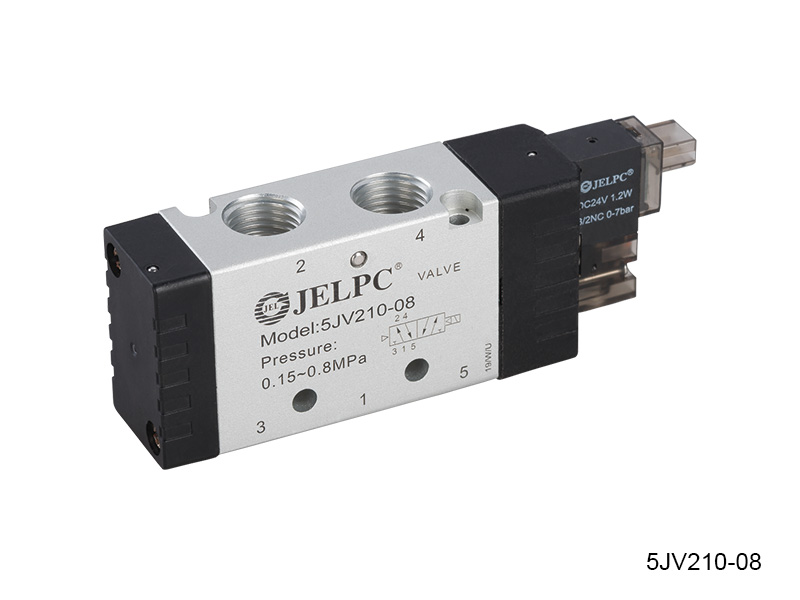

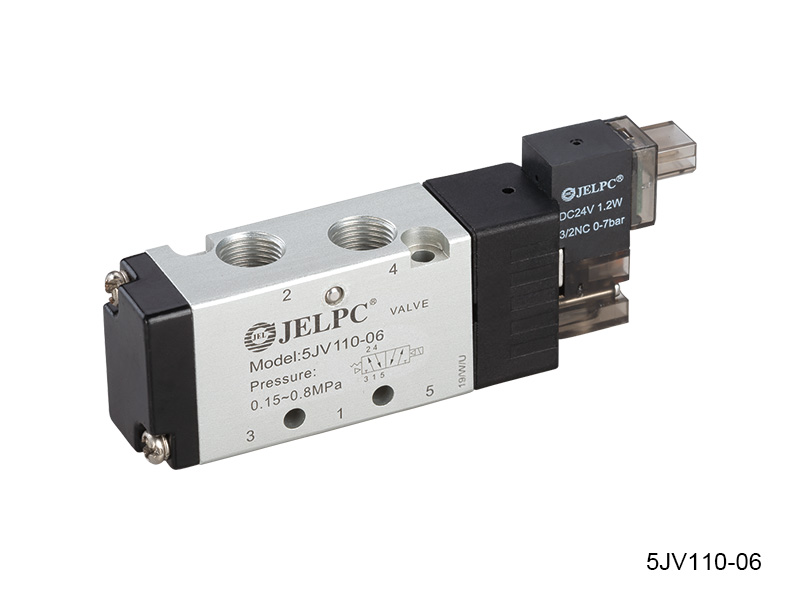

Long Life 5JV

Long Life 5JV

0
Views: 2,644
  • Product parameters

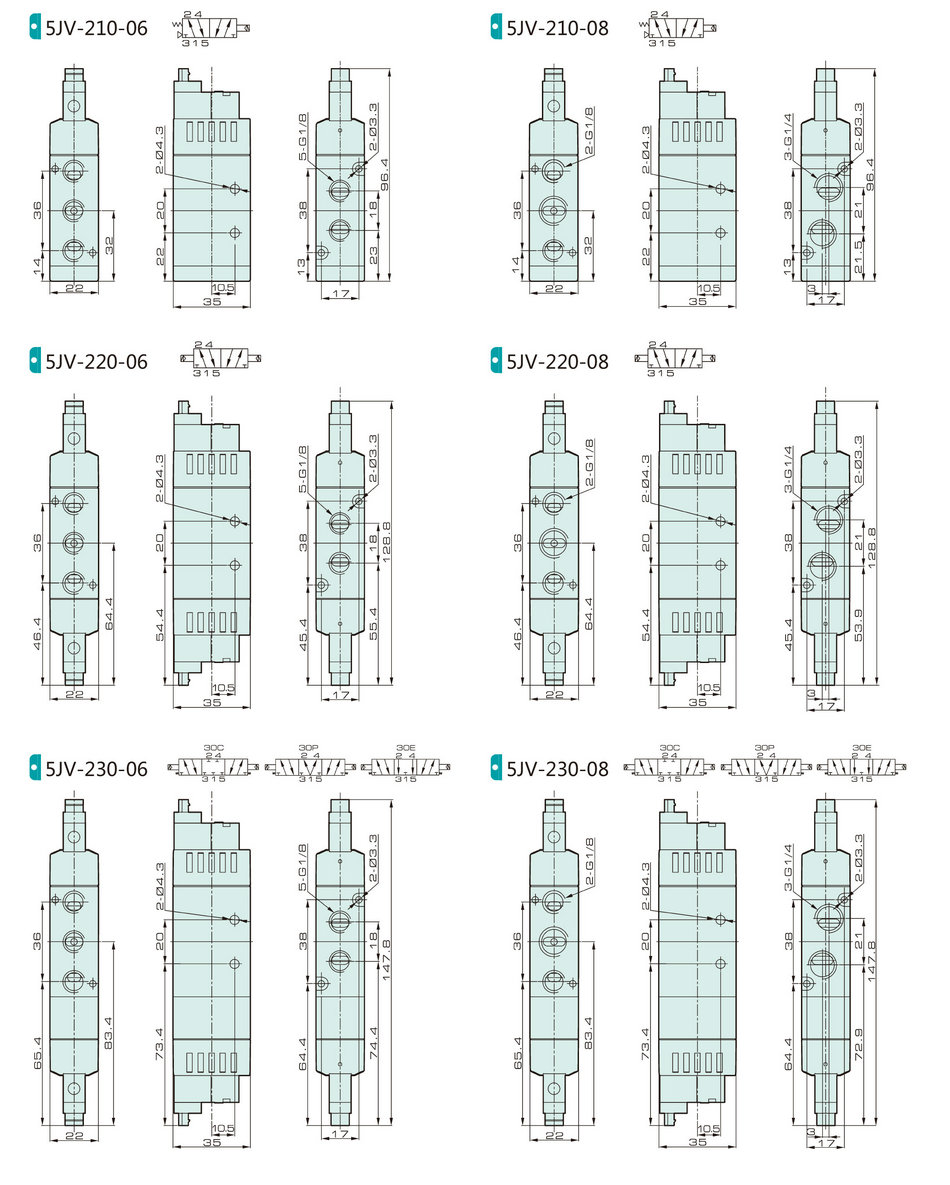

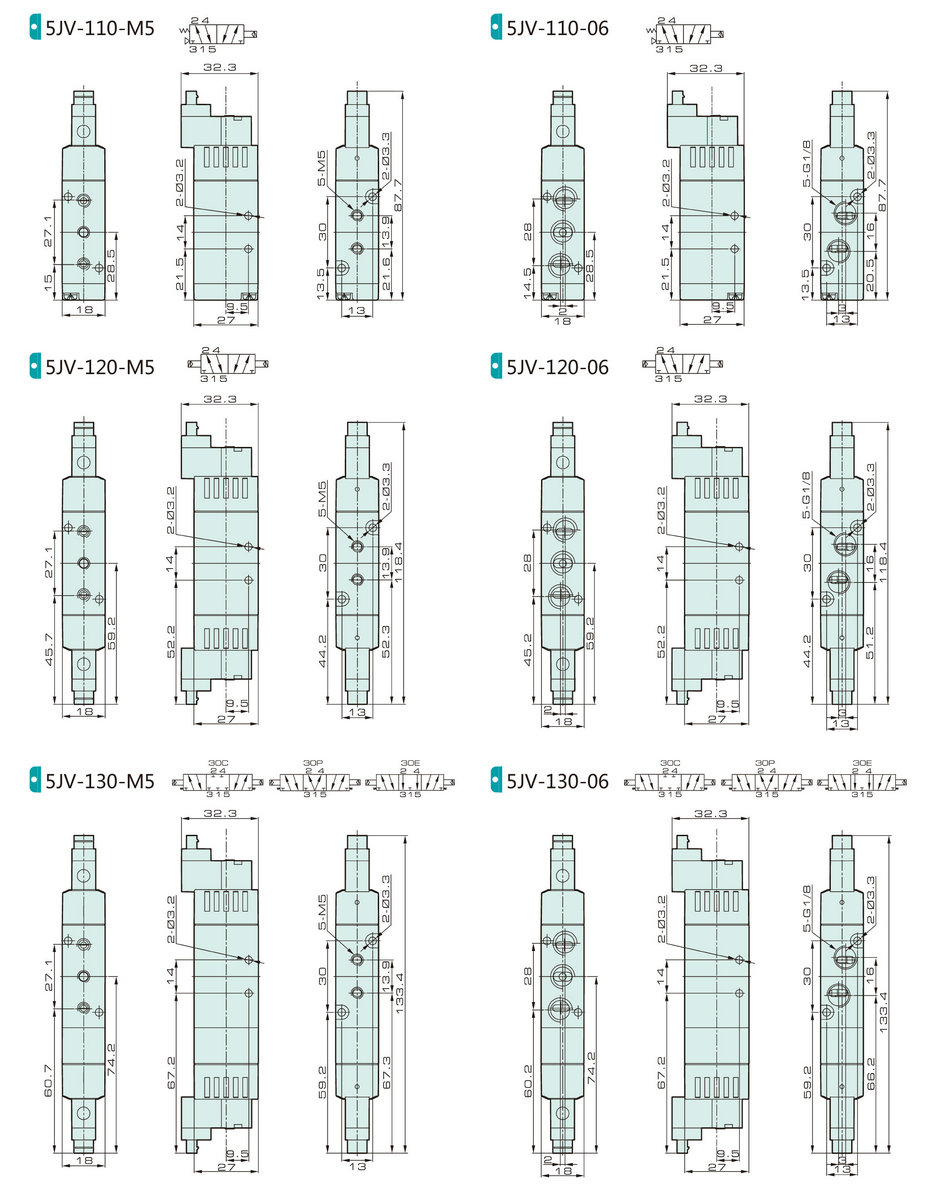

  • Product size

Features

1. The main body of the solenoid valve is used new structure of 5V, with characteristics of large flow and long life time same as 5V.

2. Piloted valve base using 10mm low voltage valve, can effectively save power consumption and lower temperature rise.

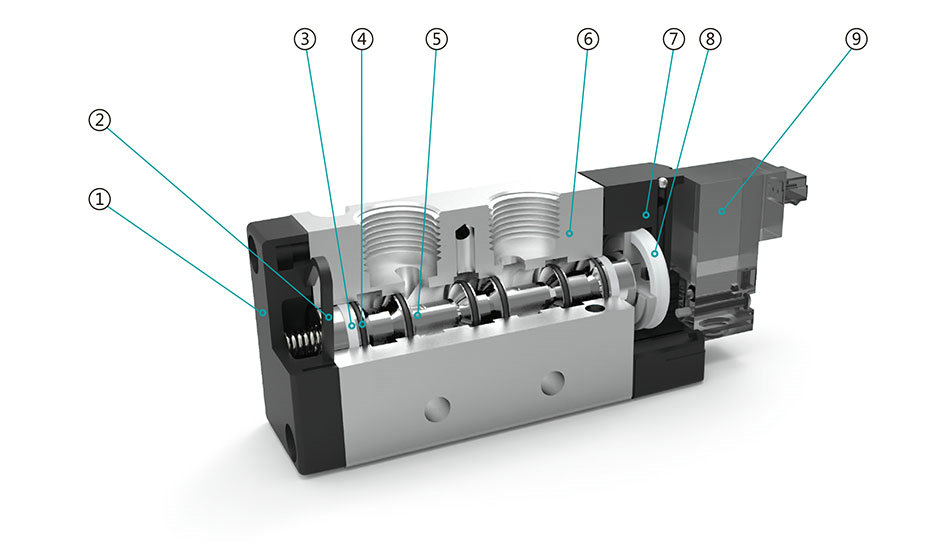

Internal Structure





Parts



Number

Name

Number

Name

1

Back cover

6

Valve body

2

Diamond ring

7

Pilot seat

3

Anti-friction seal

8

Piston

4

Flat ring

9

Armature

5

Valve spool

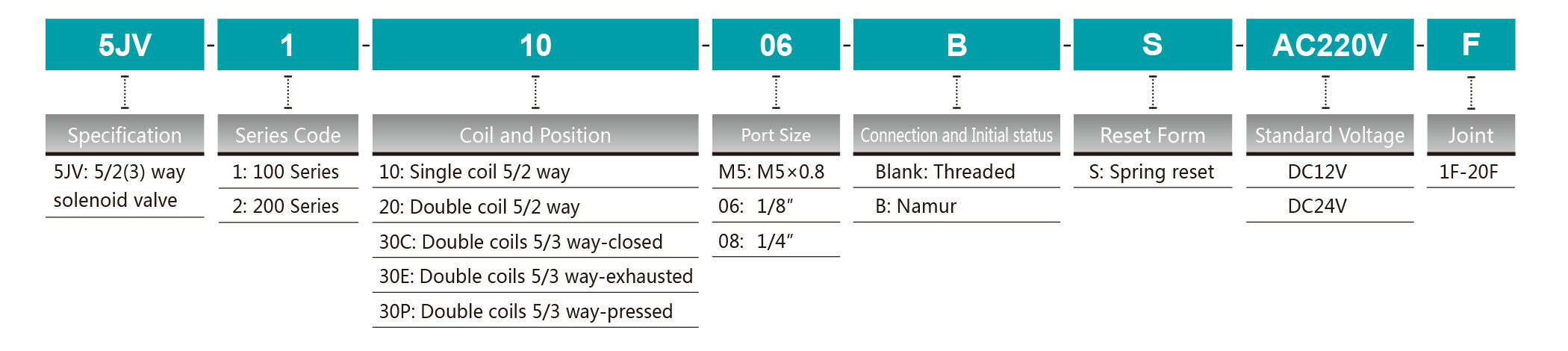

Ordering Code







Specification



Model

5JV110-M5

5JV120-M5

5JV130C-M5

5JV130E-M5

5JV130P-M5

5JV110-06

5JV120-06

5JV130C-06

5JV130E-06

5JV130P-06

Valve Type

5/2 Way

5/3 Way

5/2 Way

5/3 Way

Effective Cross Section Area

10mm²(CV=0.56)

7mm²(CV=0.4)

12mm²(CV=0.67)

9mm²(CV=0.0.5)

Port Size

Inlet, Outlet, Exhaust Port ＝M5

Inlet, Outlet, Exhaust Port ＝G1/8

Model

5JV210-06

5JV220-06

5JV230C-06

5JV230E-06

5JV230P-06

5JV210-08

5JV220-08

5JV230C-08

5JV230E-08

5JV230P-08

Valve Type

5/2 Way

5/3 Way

5/2 Way

5/3 Way

Effective Cross Section Area

14mm² (CV=0.78)

12mm² (CV=0.67)

16mm² (CV=0.89)

12mm² (CV=0.67)

Port Size

Inlet, Outlet, Exhaust Port =G1/8

Inlet, Outlet, Exhaust Port =G1/4

Working Medium

40 Micron Filtered Air

Working-pressure

0.15~0.7MPa

Max. Test Pressure

1MPa

Ambient Temperature

0~50℃

Power Consumption

1.2W

Switching Frequency

5 Cycles / Sec.
