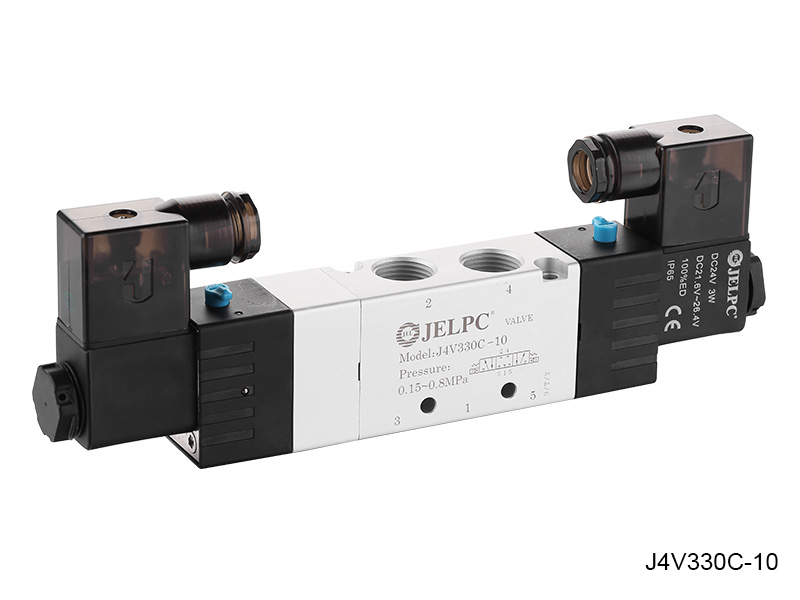

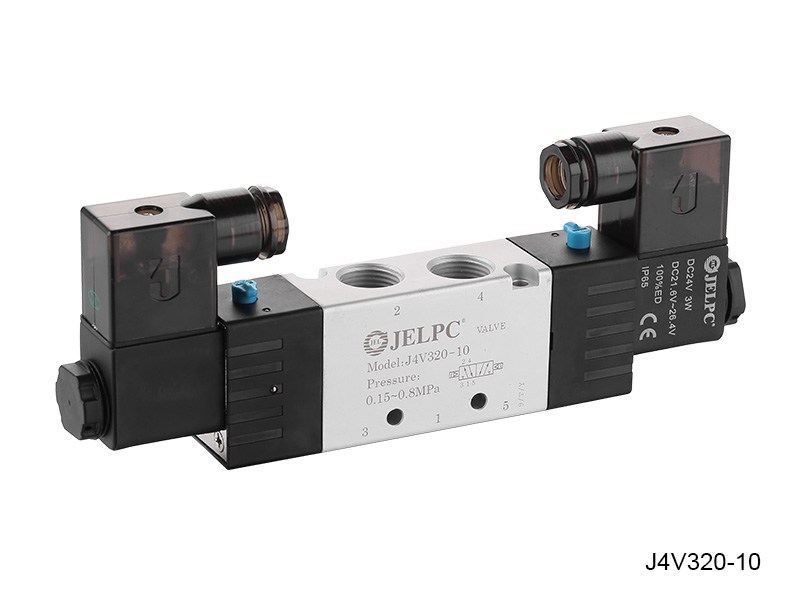

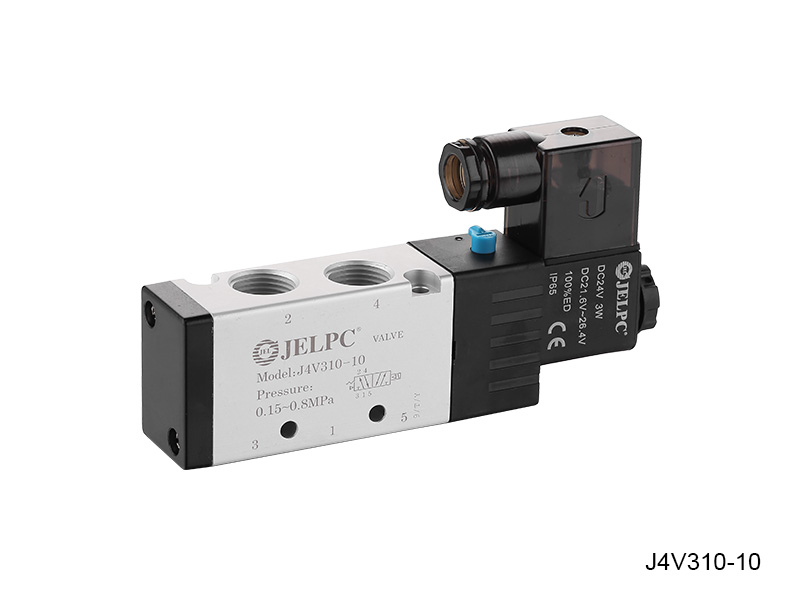

Non-Polluting Solenoid Valve

Non-Polluting Solenoid Valve

0
Views: 4,385
  • Product parameters

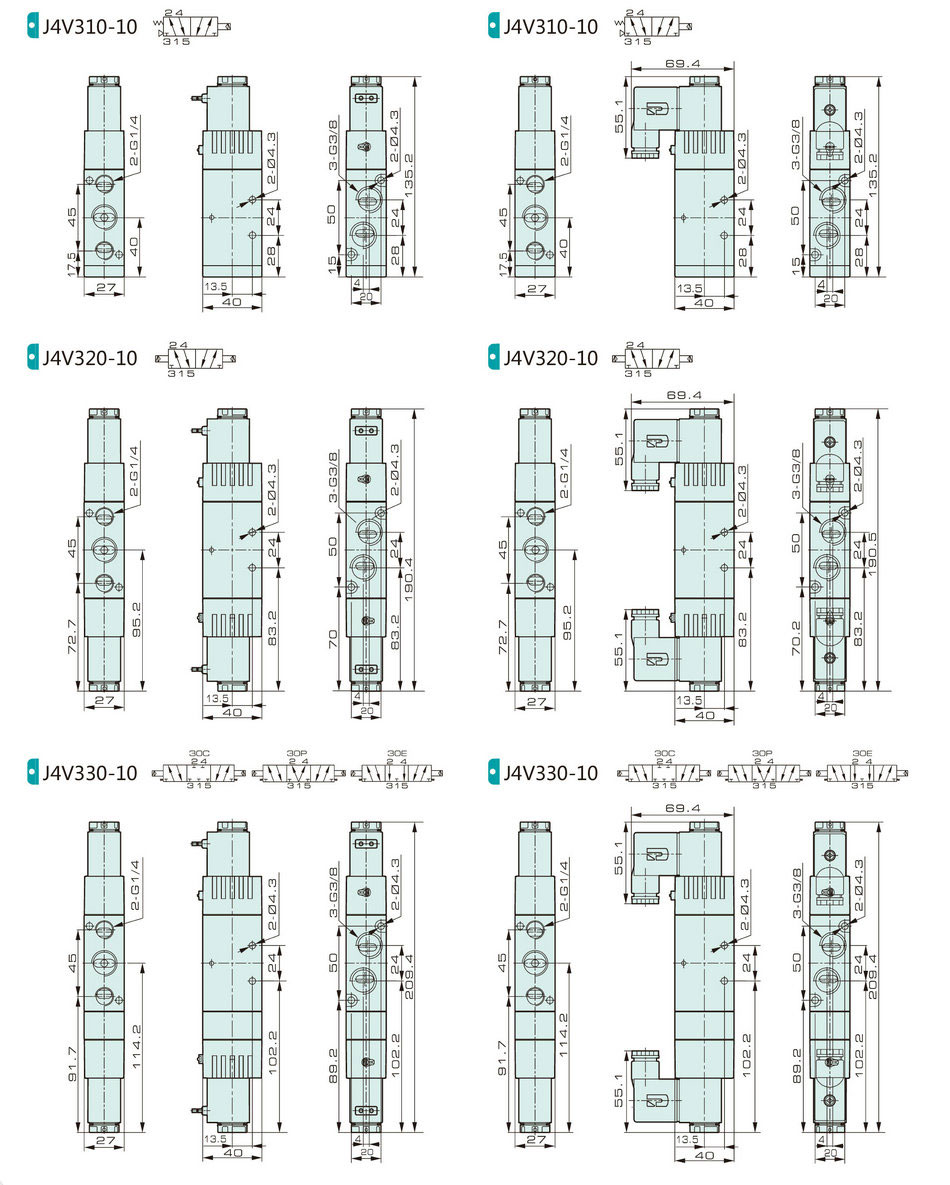

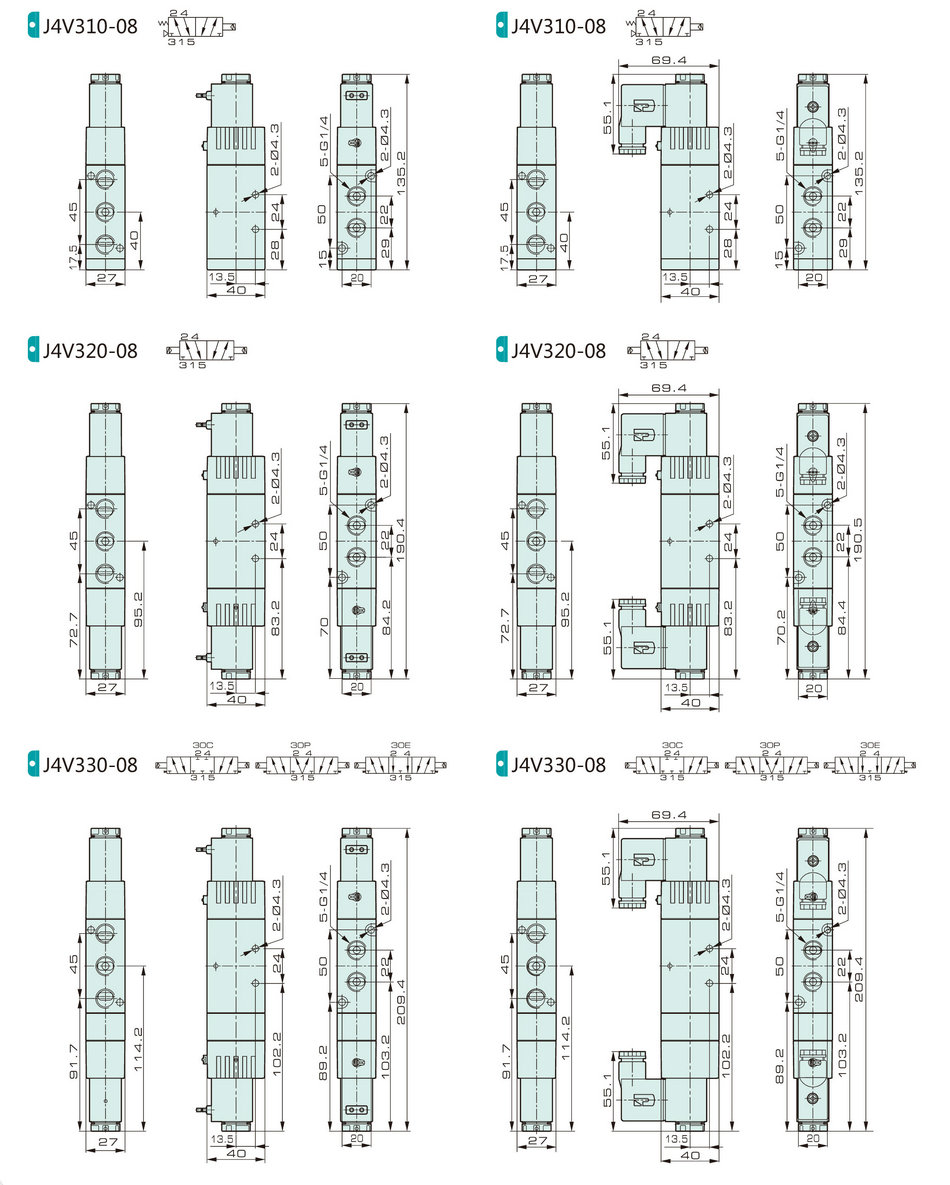

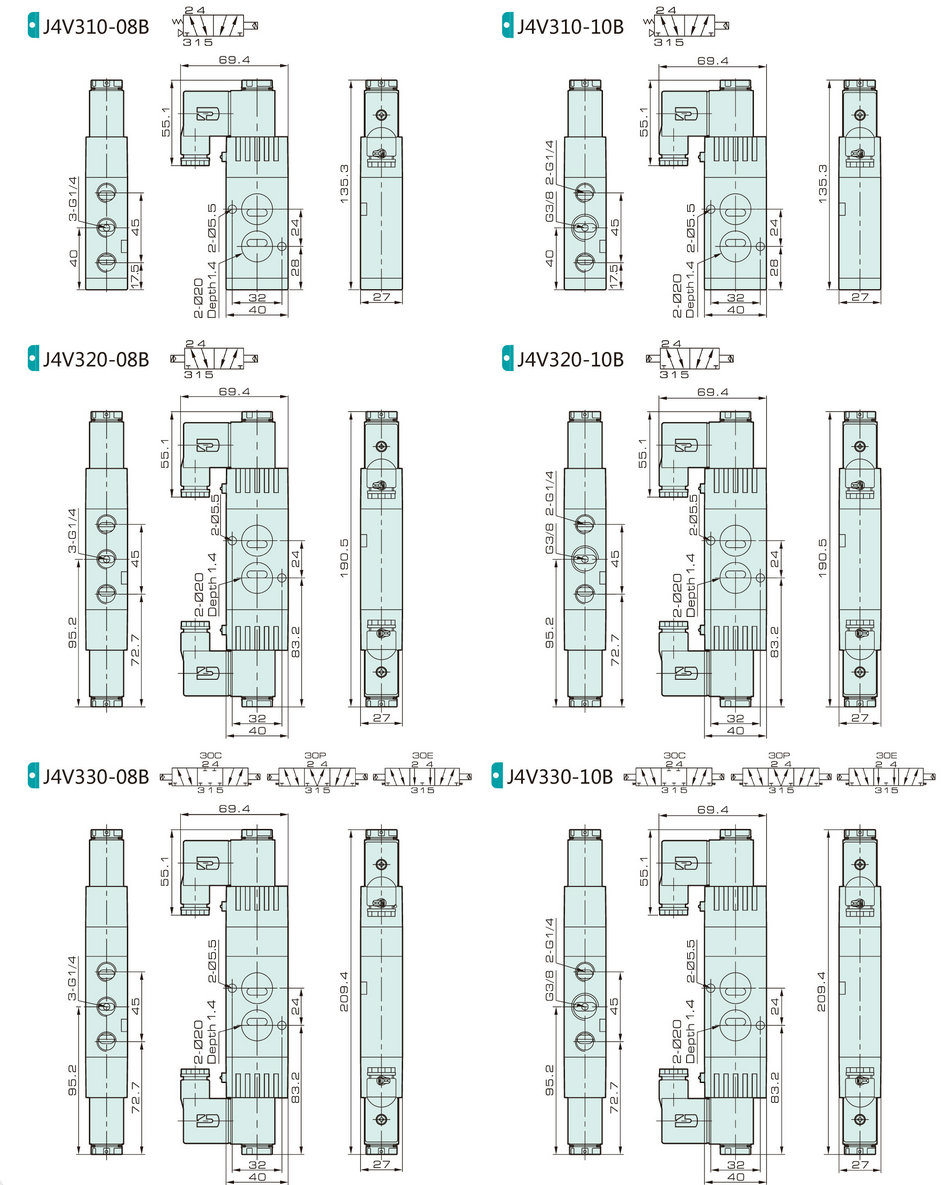

  • Product size



Internal Structure







Parts



Number Name Number Name Number Name
1 Cross slot pan screw 7 Valve spool 13 Coil
2 Back cover 8 Piston 14 Coil nut
3 Spring 9 Y ring 15 Fix plate
4 Anomalous seal 10 Spring 16 O ring
5 Valve body 11 Mannual ride spindle 17 Plunger
6 Flat ring 12 Terminal 18 Pilot seat





Improvement of Flow Performance Indicator







Improvement of Life-time

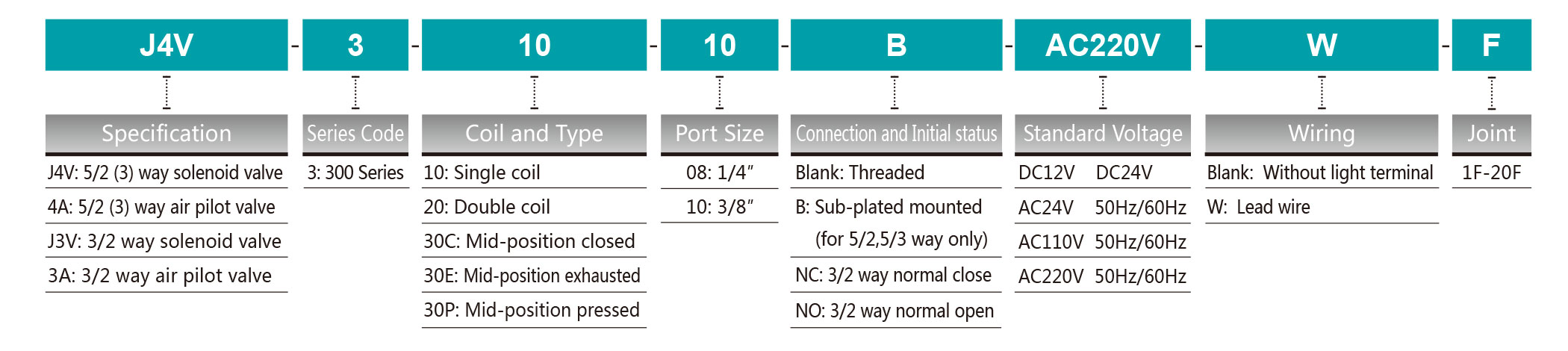

 Order code：







Specification



Model J4V310-08 J4V320-08 J4V330C-08 J4V330E-08 J4V330P-08 J4V310-10 J4V320-10 J4V330C-10 J4V330E-10 J4V330P-10
4A310-08 4A320-08 4A330C-08 4A330E-08 4A330P-08 4A310-10 4A320-10 4A330C-10 4A330E-10 4A330P-10
Valve Type 5/2 way 5/3 way 5/2 way 5/3 way
Effective Cross Section Area 25mm²(CV=1.40) 18mm²(CV=1.00) 30mm²(CV=1.68) 18mm²(CV= 1.00)
Model J3V310-08 J3V320-08 3A310-  08 3A320-08 J3V310-10 J3V320-10 3A310-10 3A320-  10
Valve Type 3/2 way
Effective Cross Section Area 25mm2(CV=1.40) 30mm2(CV=1.68)
Port Size Inlet, Outlet, Exhaust Port ＝ G 1/4″ Inlet, Outlet＝ G 3/8″ Exhaust Port ＝ G 1/4″
Working Medium 40 Micron Filtered Air
Operation Internal piloted
Working-pressure 0.15～0.8 MPa
Max. Test Pressure 1.2 MPa
Ambient Temperature -20～70℃
Operating Voltage Tolerance ± 10%
Power Consumption AC: 3.5VA DC: 3.0W
Connector Protection F Class, IP 65
Wiring / Connector Cable / Lead Wire or DIN Connector
Switching Frequency 5 Cycles / Sec.
Response Time 0.05 Sec.
