JEL Series Diaphragm Solenoid Valve Manufacturers

Home / Products / Valve / Solenoid Valve / JEL Series Diaphragm Solenoid Valve

Products

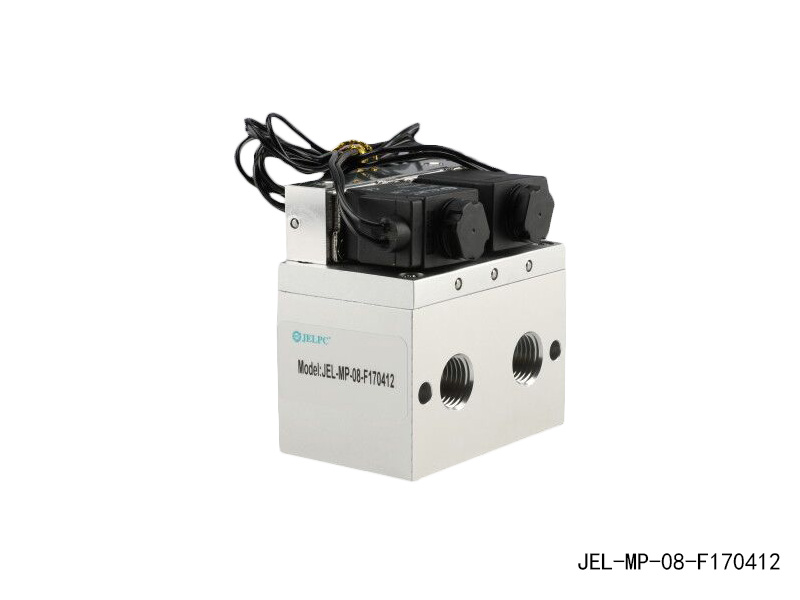

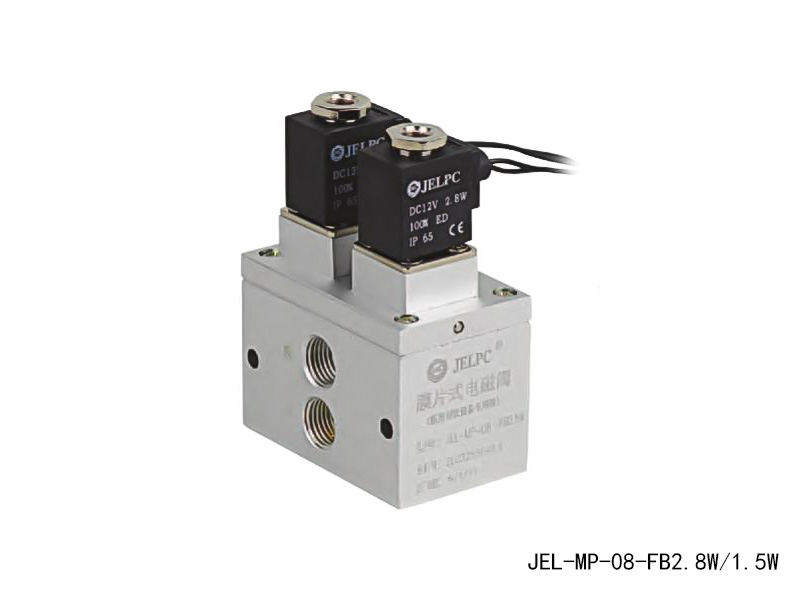

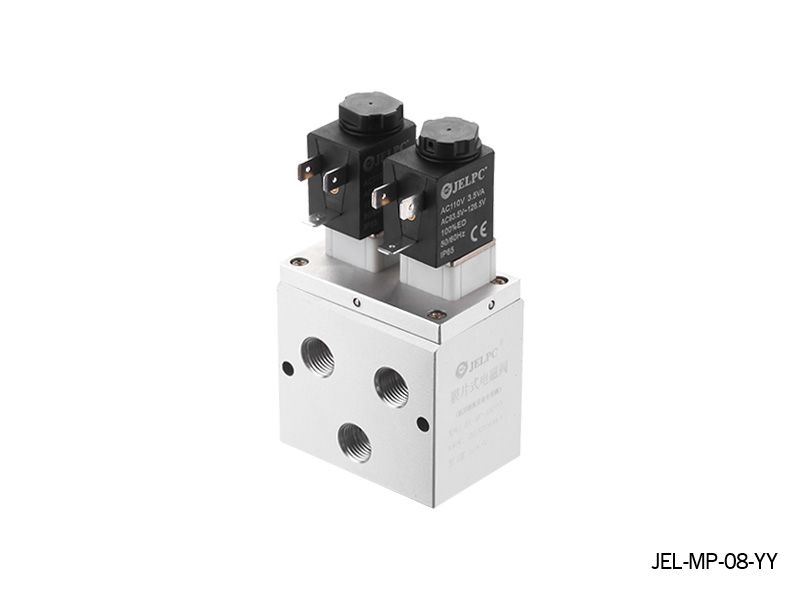

JEL Series Diaphragm Solenoid Valve

JEL Series Diaphragm Solenoid Valve

0
Views: 4,998
  • Product parameters
  • Product size

Awarded national new excellent product
Low pressure system valve for medical application
Special fomular silicone for longer service life

Features

1. Adopt new processing, improved inner hole roughness.
2. Adopt specially formulated silicone to increase of service life.
3. To import German high standard special grease which provides  film in order to reduce the friction.
4. Valve spool material use soft magnetic stainless steel from German,increase the magnetic properties and reduce the coil power to 30%.



Ordering Code

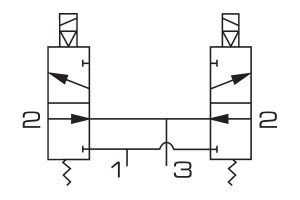

Symbol







Specification



Model

JEL-MP-08

Valve Type

4/2 Way

Working Medium

40 Micron Filtered Air

Operation

Internal Piloted

Working-pressure

0.08～0.35 MPa

Ambient Temperature

-5～80 ℃

Protection Class

F Class, IP 65
