High And Low Temperature Resistant JEL series

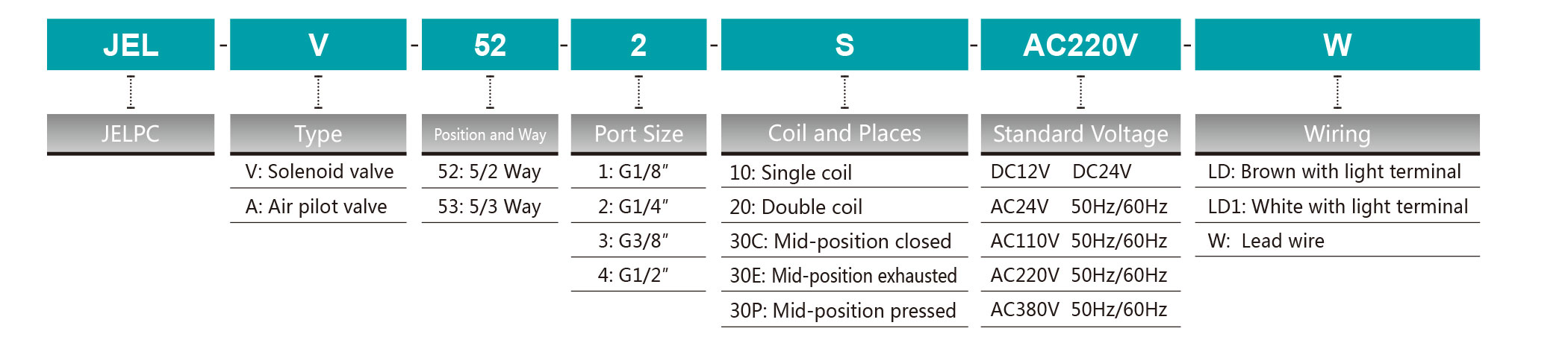

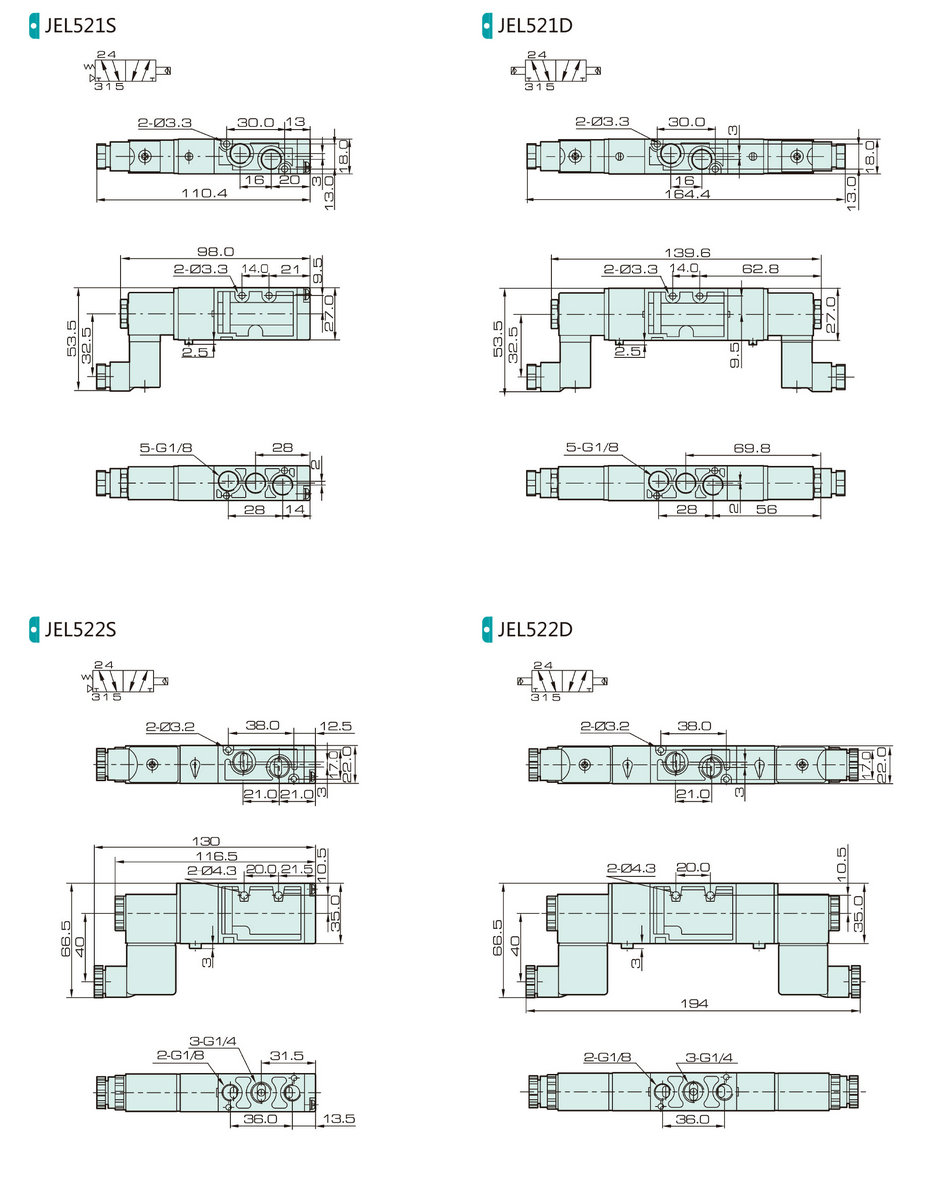

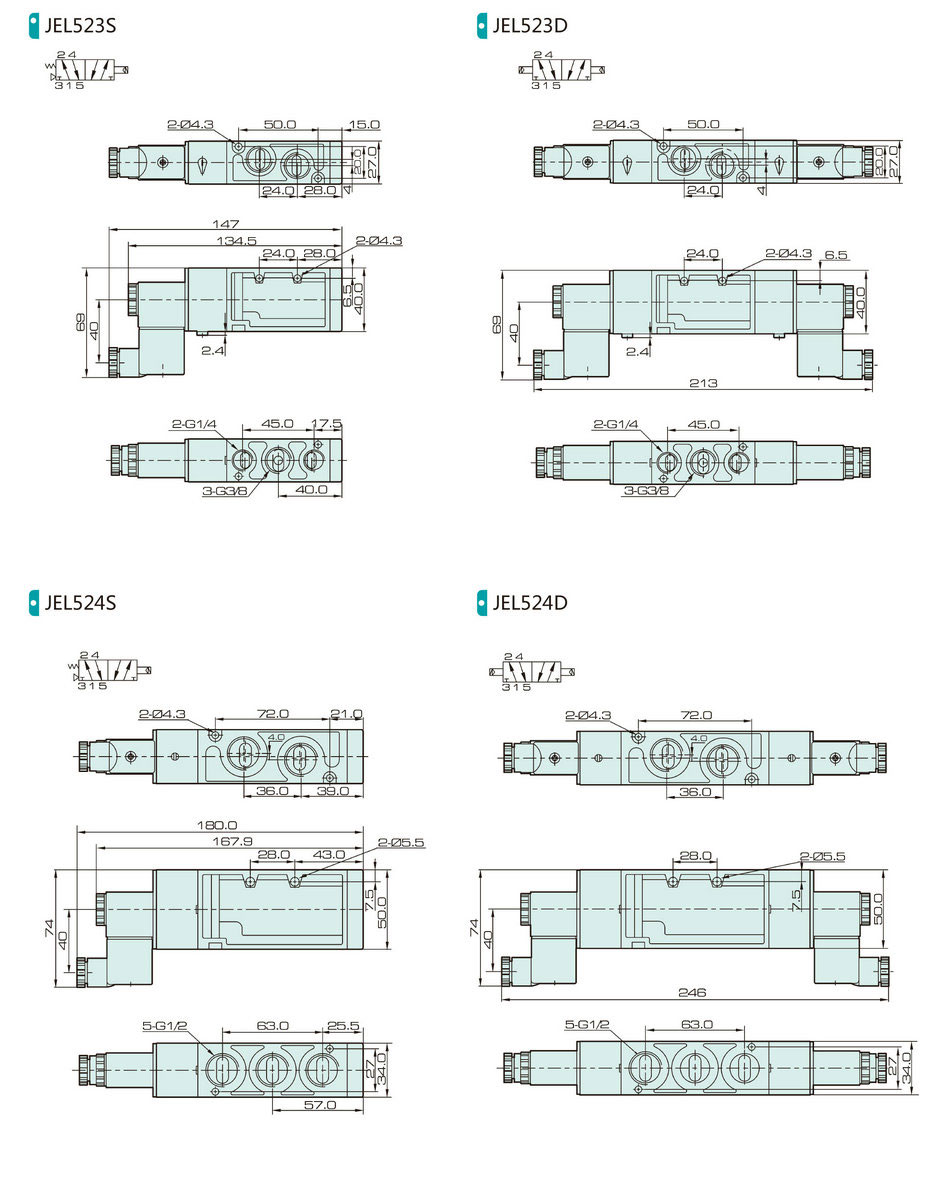

Model

JELV521S

JELV531C(E/P)

JELV522S

JELV522D

JELV532C(E/P)

JELV523S

JELV523D

JELV533C(E/P)

JELV524S JELV524D

JELV534C(E/P)

JELA521S

JELA531C(E/P)

JELA522S

JELA522D

JELA532C(E/P)

JELA523S

JELA523D

JELA533C(E/P)

JELA524S JELV524D

JELA534C(E/P)

Valve Type

5/2 Way

5/3 Way

5/2 Way

5/3 Way

5/2 Way

5/3 Way

5/2 Way

5/3 Way

Effective Cross Section Area

12mm²(CV = 0.67)

9mm²(CV=05)

14mm²(CV = 0.78)

12mm²(CV=0.69)

25mm²(CV = 1.40)

18mm²(CV=100)

50 mm²(CV = 2.79)

30mm²(CV=1.68)

Working Medium

40 Micron Filtered Air

Operation

Internal piloted

Working-pressure

0.15～0.8 MPa

Max. Test Pressure

1.2 MPa

Max. Ambient Temperature

-20～70℃

Operating Voltage Tolerance

± 10%

Power Consumption

AC: 5.5 VA DC: 4.8 W

Connector Protection

F Class, IP 65

Wiring / Connector

Cable / Lead Wire or DIN Connector

Switching Frequency

5 Cycles / Sec.

Response Time

0.05 Sec.
