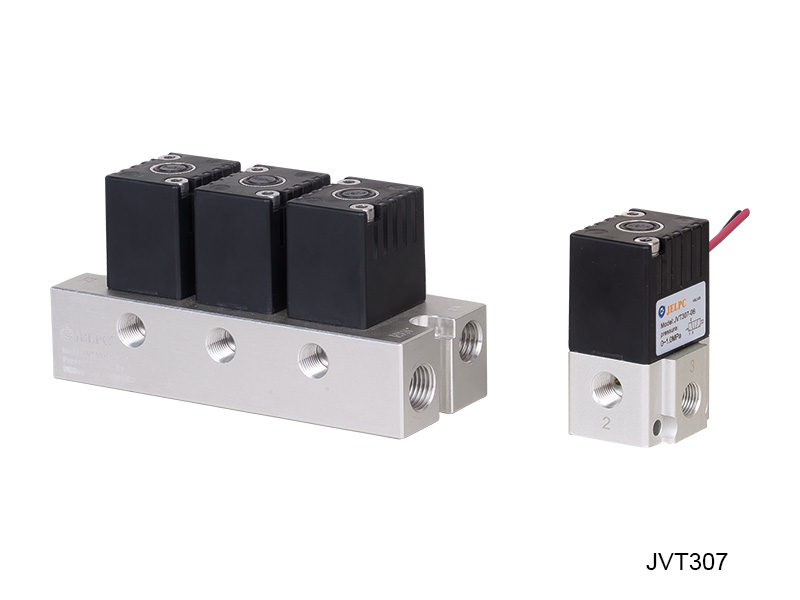

JVT 307 High Frequency

JVT 307 High Frequency

0
Views: 1,243
  • Product parameters

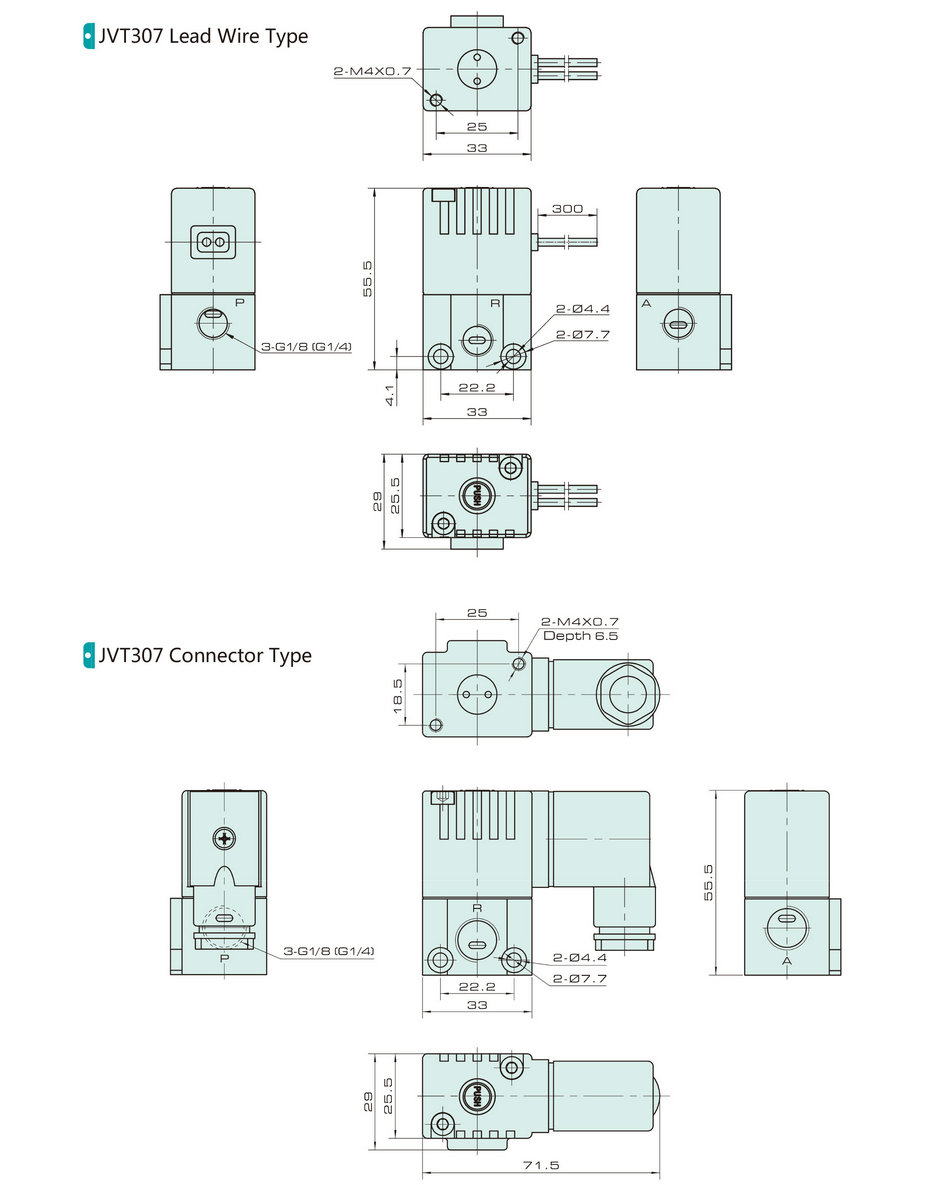

  • Product size

Features

1. Direct-acting type, quick response;

2. Poppet design, good sealing;

3. No lubrication required;

4. Manual Override facilitates machine set up;

5. Many voltage available.

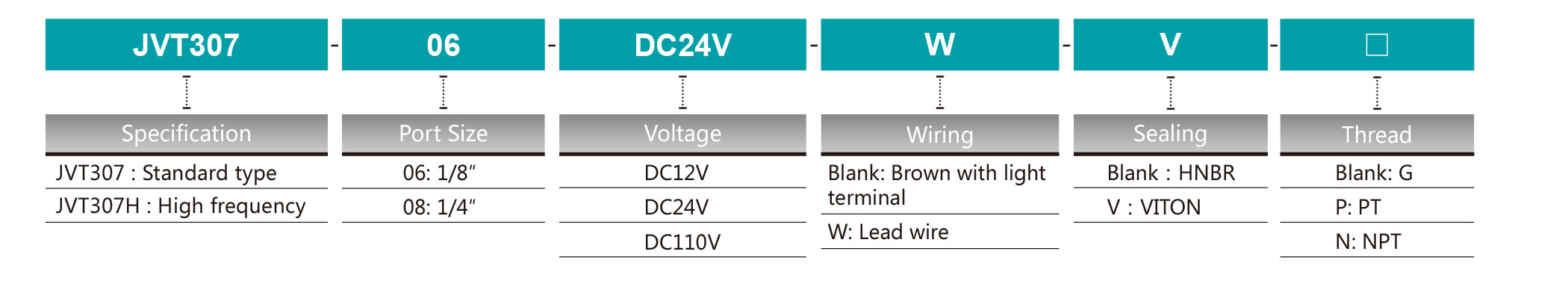

Ordering Code







Specification



Model

JVT307-06

JVT307-08

JVT307H-06

JVT307H-08

Working Medium

Air (40 Micron dry filtered air)

Port Size

Inlet, Outlet,Exhaust Port=G1/8"

Inlet, Outlet,Exhaust Port:G1/4"

Inlet, Outlet,Exhaust Port=G1/8"

Inlet, Outlet,Exhaust Port:G1/4"

Position

3/2 way

Flow

180L/min

120L/min

Lubrication

No Need

Working Pressure

0～1.0MPa

Max Pressure

1.5MPa

Working Temperature

-20～80℃

Body Materials

Aluminum

Standard Voltage

DC12V, DC24V, DC110V

Operating Voltage Range

DC: ±10%

Power Consumption

DC: 4.5W

DC7.2W

Connector Protection

IP65

Temperature class

H class

Wiring/Connector

Cable / Lead Wire or DIN Connector

Response Time

12ms

7ms

Switching Frequency

40 Cycles/Sec

70 Cycles/Sec
