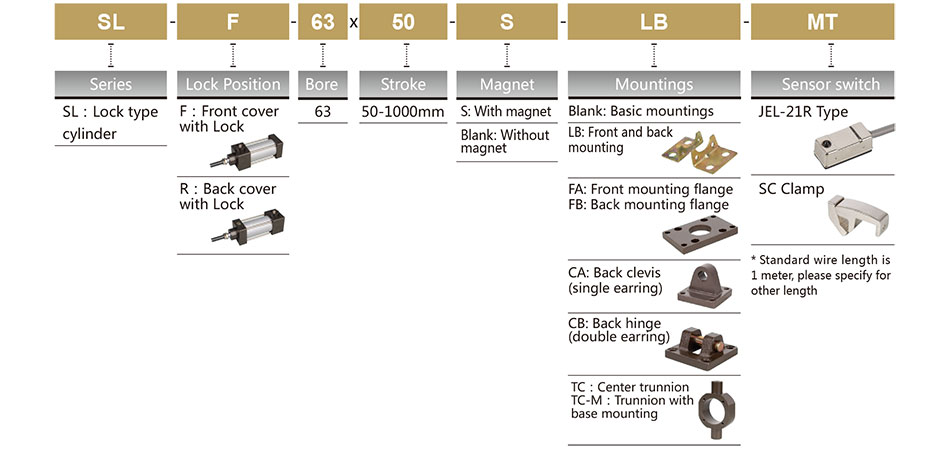

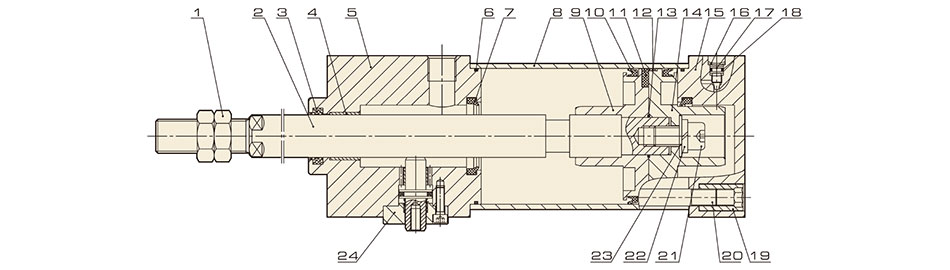

SL Series Lock Type Cylinder

Item

Name

Item

Name

Item

Name

1

Hexagon thin nut

9

Front piston

17

Regulator pin

2

Piston rod

10

Y ring

18

O ring

3

Anti-dust ring

11

Magnet

19

Tie rod nut

4

DU bearing

12

Lead way bend

20

Tie rod

5

Front cover

13

0 ring

21

Inner hexagon pin

6

O ring

14

Back piston

22

Spring washer

7

Cushion ring

15

Backcover

23

Flat washer

8

Barrel

16

Lock slice

24

Lockset
