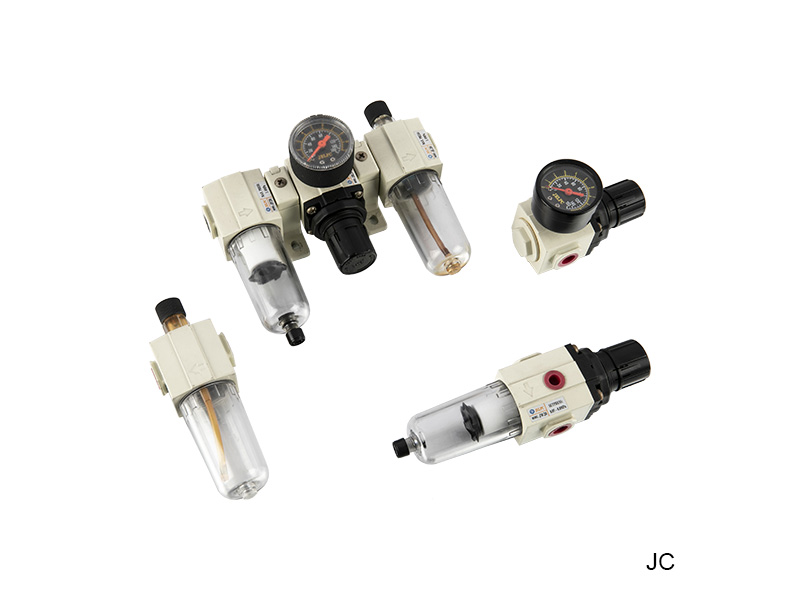

JC Series Relieving Type Manufacturers

JC Series Relieving Type

JC Series Relieving Type

0
Views: 364
  • Product parameters

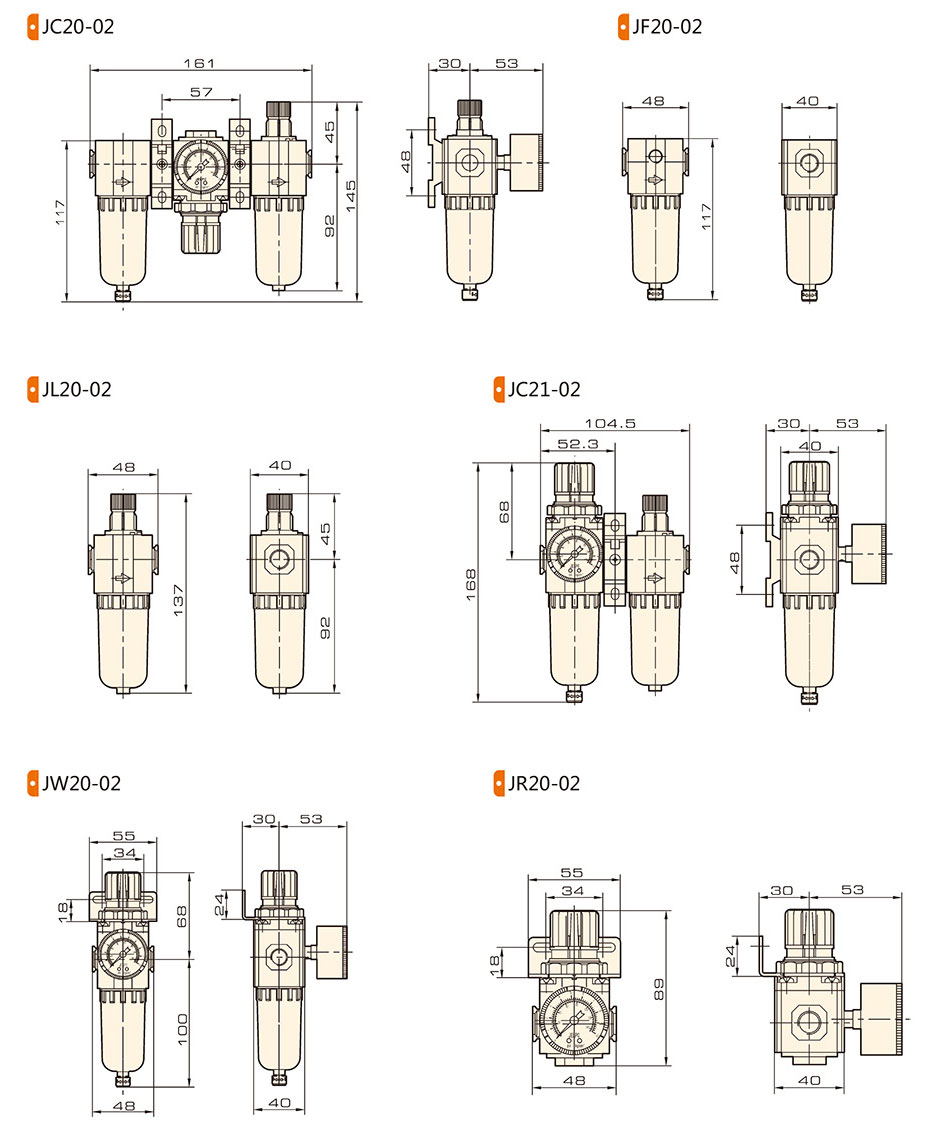

  • Product size

Feature



● The strength and light valve body is made of quality aluminum alloy.

● The regulator has balanced structure and is featured with good precision and stability.

● The oil cup is more convenient to be oiled.

● The drainage and oil interval is longer depending on the extended type of water cup and oil cup.

● Two combination and three combination share the same bracket and the separated unit including regulator and filter and filter & regulator have their own bracket for easier maintenance.



Ordering Code

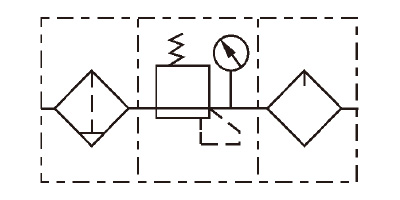

Symbol



Specification



Model

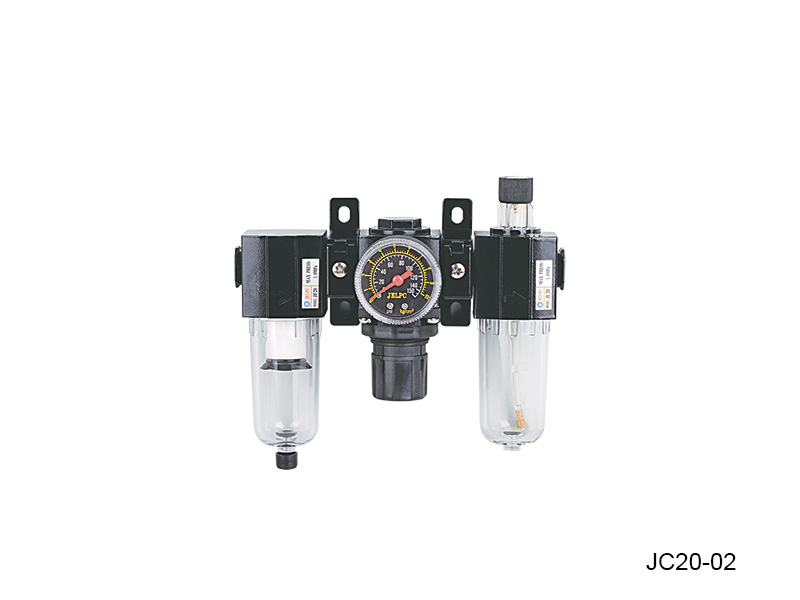

JC20-02

JC21-02

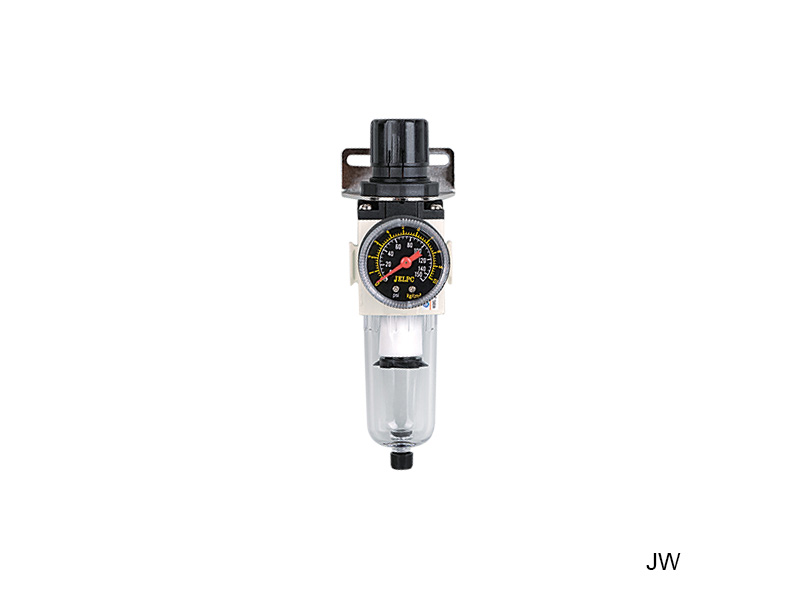

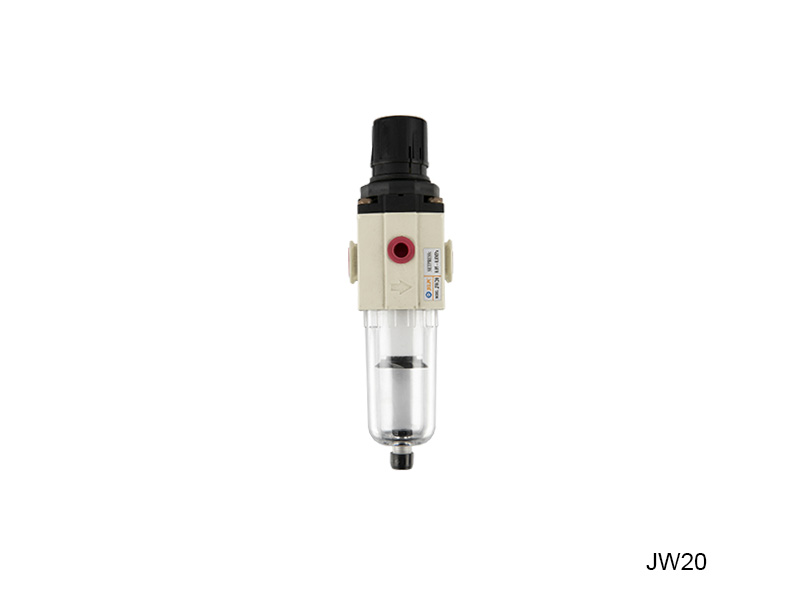

JW20-02

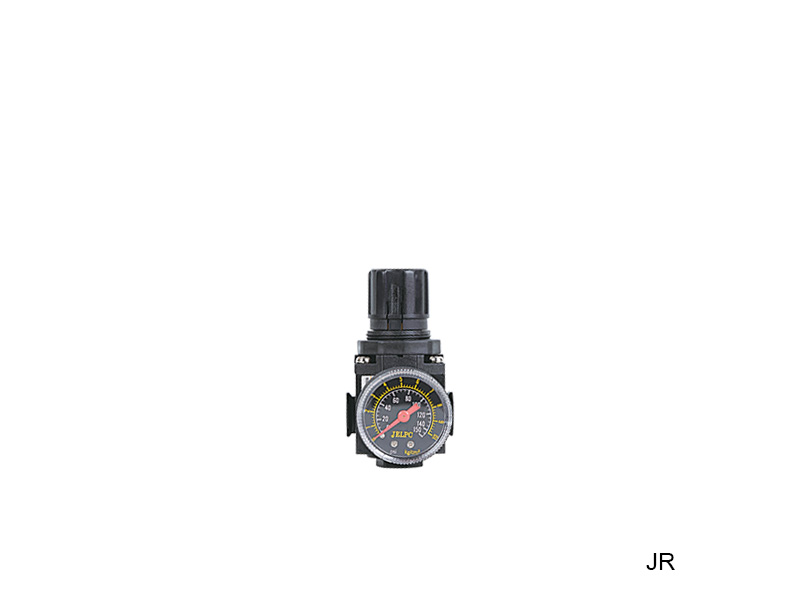

JR20-02

JF20-02

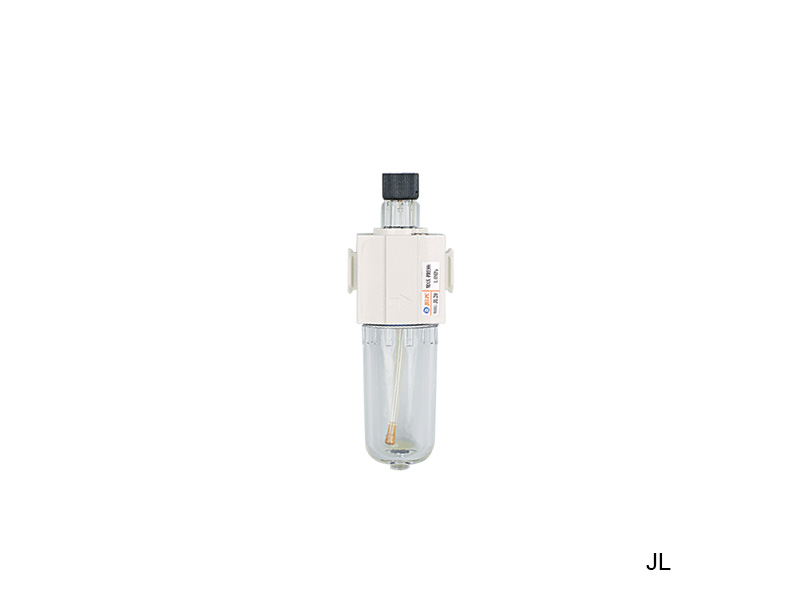

JL20-02

Rated Flow

500

500

550

550

750

800

Port Size

1/4

1/4

1/4

1/4

1/4

1/4

Filtration

25 μm

Maximum Working Pressure

1.0 MPa

Proof Pressure

1.5 MPa

Operating Temperature Range

5~60 ℃

Adjustable Pressure Range

0.05~0.85 MPa

Recommended Lubricant

ISO VG 32

-

ISO VG 32

Bowl Material

Polycarbonate

  Polycarbonate

Cover

Without

Drain Function

Manual Drain

Manual Drain

Manual Drain

-

Manual Drain

-

Valve Type

Relieving type

-

-

Components

Filter

Filter &. Regulator



-

-

-

Regulator

-

-

-

-

-

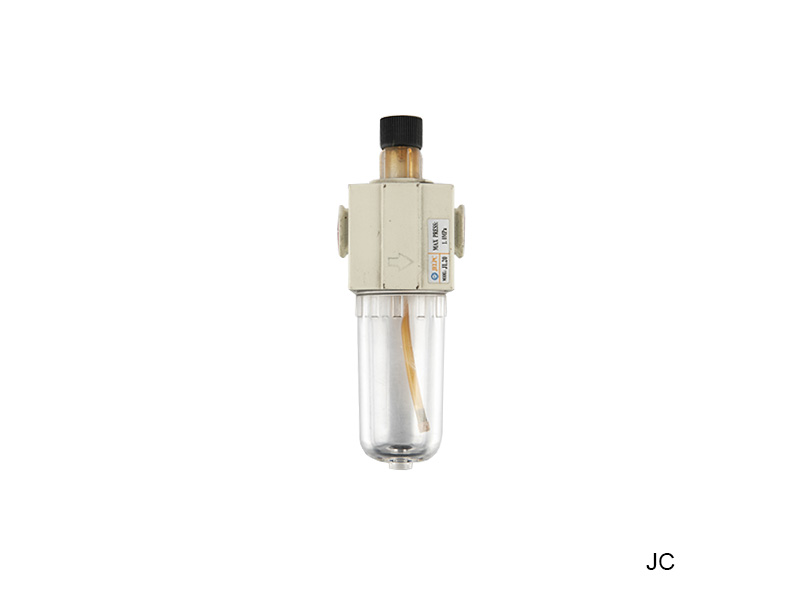

Lubricator

Lubricator

-

-

-

-
