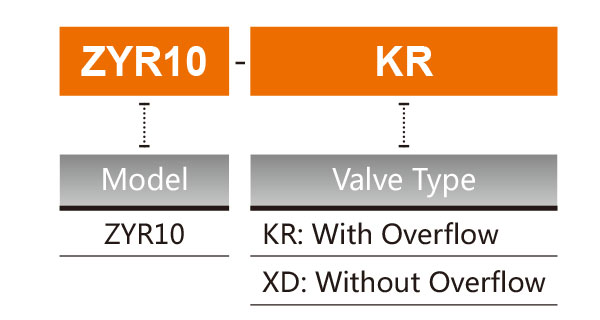

Ordering Code

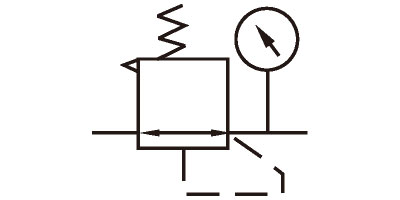

Symbol
Specification
Model | ZYR10 |
Orifice | 4mm |
Working Medium | Compressed Air |
Working Pressure Range | 0 ~ 0.08 MPa |
Medium Temperature | 5 ~ +60 ℃ |
Ambient Temperature | 5 ~ +60 ℃z |
Port Size | G14" |

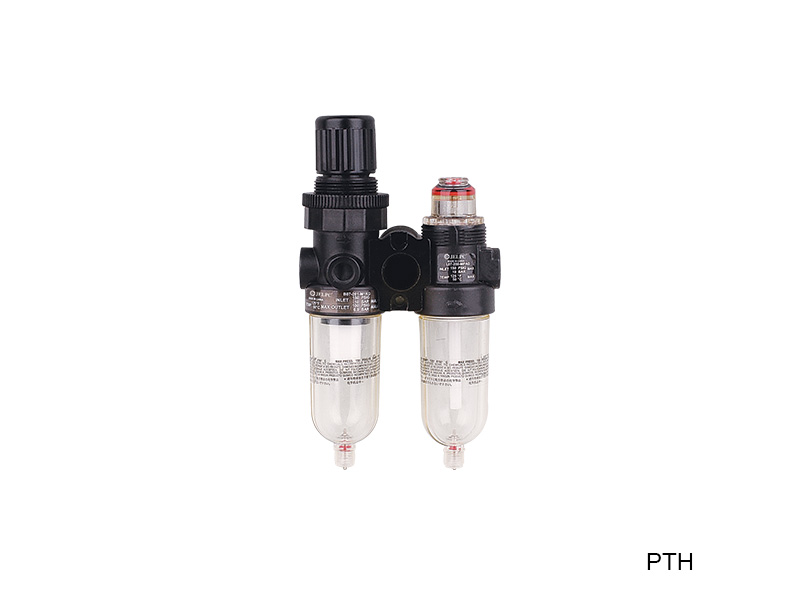

● PTH Series Air Filter Combination

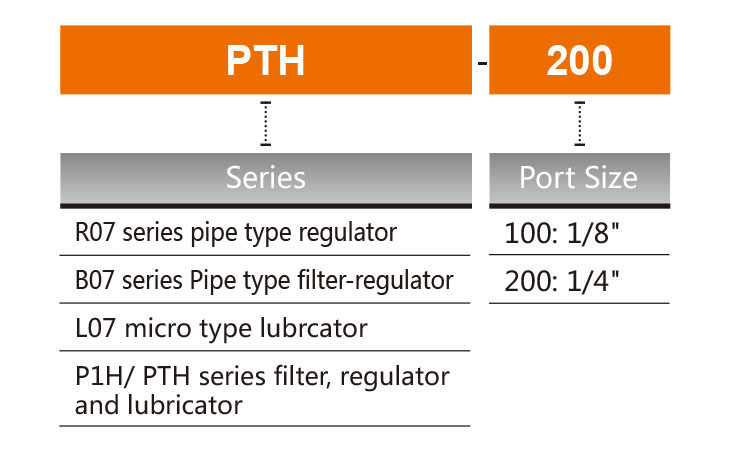

Ordering Code

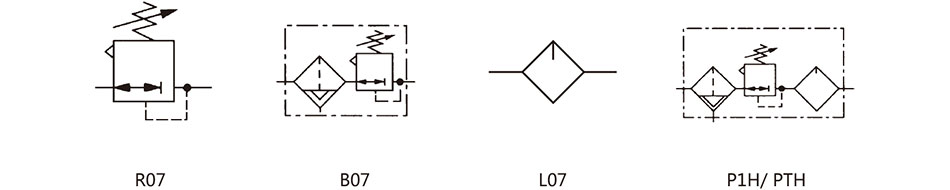

Symbol
Specification

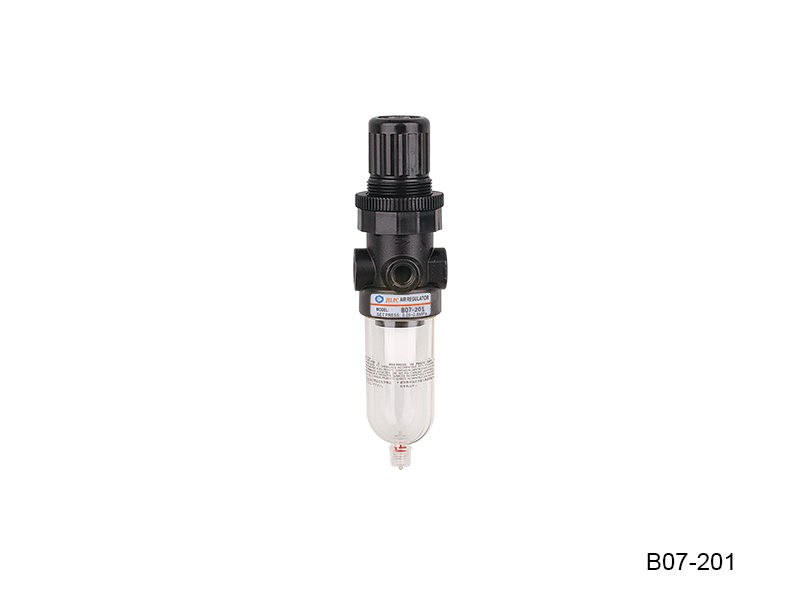

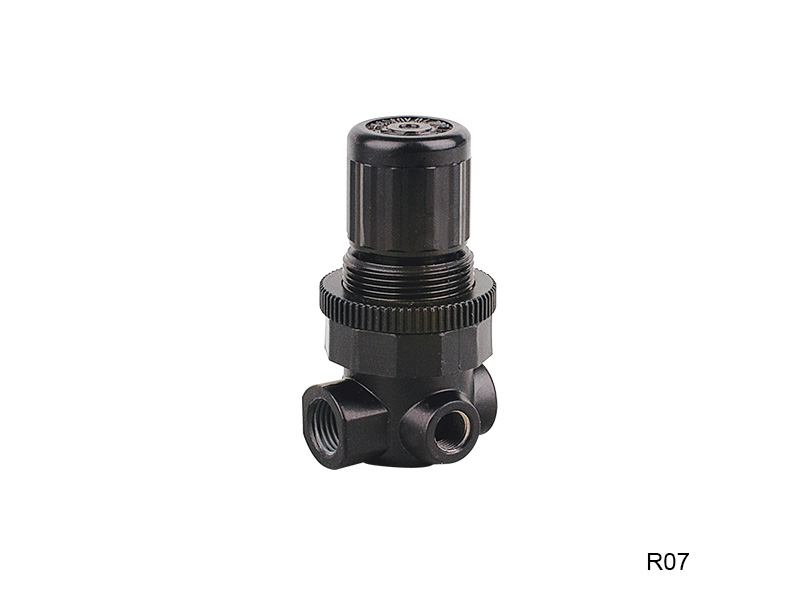

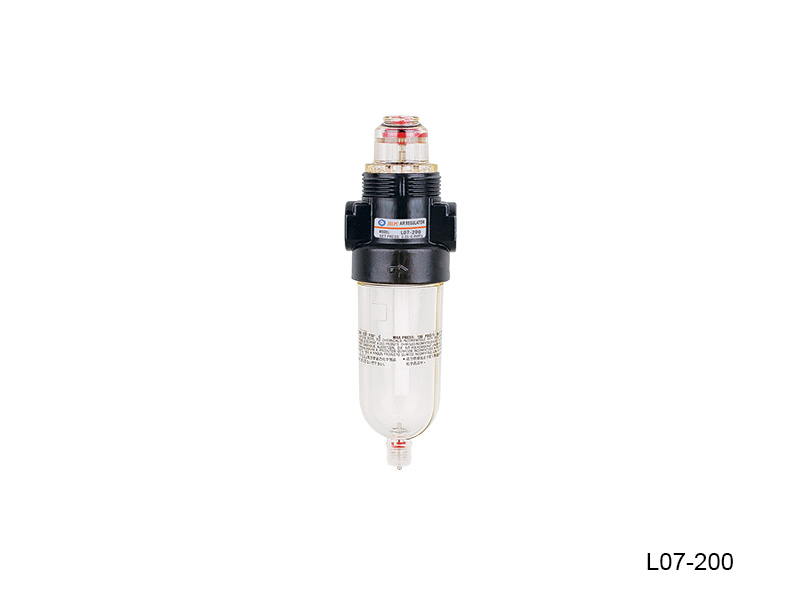

Model | R07 | B07 | L07 | P1H/PTH |
Operating Fluid | Compressed Air | |||
Inlet Pressure | 0~10 bar | 0~10 bar(Transparent cup) r | Transparent cup: 6.3 bar | 0~10 bar |
Pressure Gauge Port | Rcl/8 | |||
Ambient Temperature | -20~50 ℃ | Transparent cup: -20~50 ℃ - | - | - |
Body Material | Aluminium alloy |

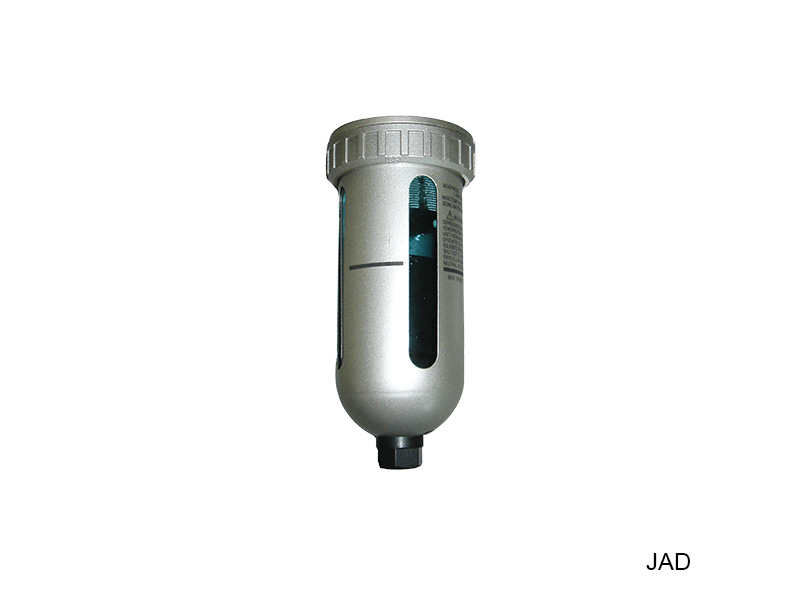

● JAD Series Auto-drain

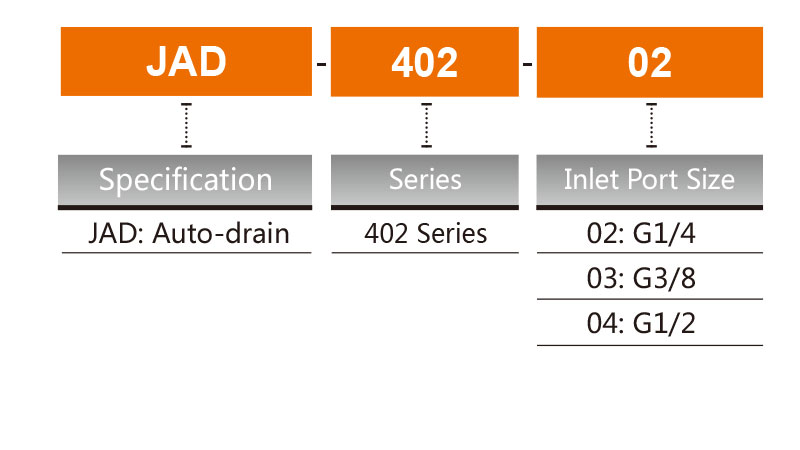

Ordering Code

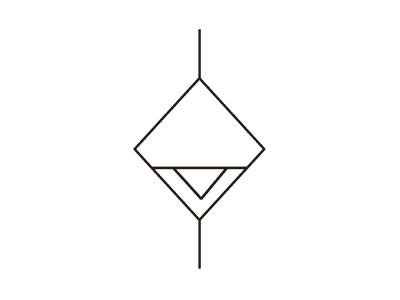

Symbol
Specification
Model | JAD402-02 | JAD402-03 | JAD402-04 |
Working Medium | Air | ||
Inlet Port Size | G1/4 | G3/8 | G1/2 |
Outlet Port Size | G1/4 | G1/4 | G3/8 |
Proof Pressure | 1.5 MPa | ||
Max. Test Pressure | 1.0 MPa | ||
Ambient Temperature Range | 5~60 ℃ |
● DPS Seris Digital Pressure Sensor

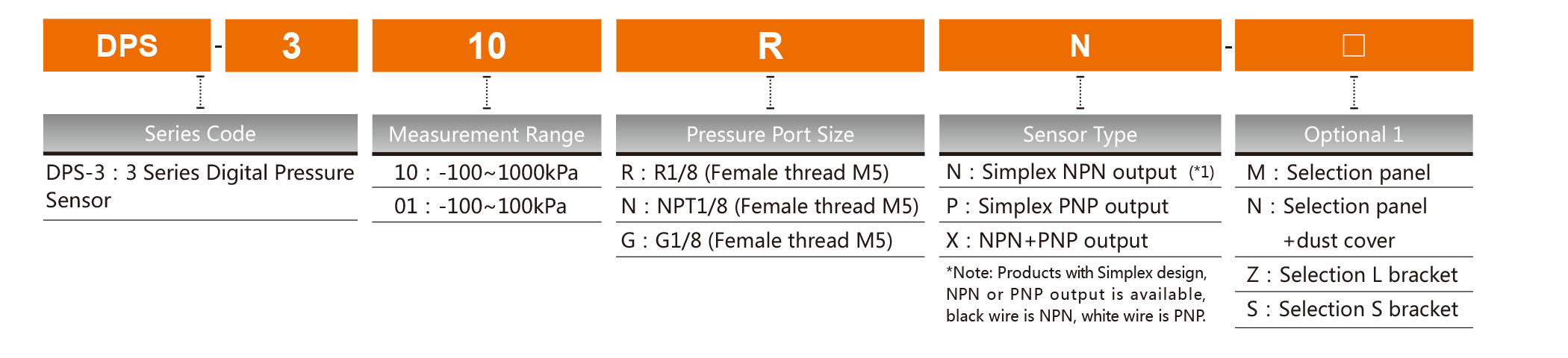

Ordering Code
Specification
Model | DPS-301(Mixed pressure) | DPS-310(Positive pressure) | |
Pressure Measurement | Measuring Range | -100~100kPa | -0.100~1.000MPa |
Predetermined Range | -100~100kPa | 0.000~1.000MPa | |
Max Pressure | 500kPa | 1.500MPa | |
Pressure Form | Non-flammable, Non-corrosive gas, Gauge pressure measurement | ||
Measurement Precision | ≤ ±2%F. S. (Environment temperature 25℃ ) | ||
Temperature Error | ≤ ±3%F. S. (Temperature range 0~50℃ ) | ||
Measurement Mode
| Single point mode | ||
Hysteresis mode | |||
Window mode | |||
Pressure Port Size | Male thread R1/8, NPT1/8, G1/8, Female thread M5 | ||
Pressure Display | Basic Description | LCD display, 4-digit measurement quantity, unit display, output status display | |
Display Mode | Adjustable backlight, total 4 display modes | ||
Input Power | Voltage Range | 12~24VDC±10% | |
Power Consumption | 40mA Max ( no load ) | ||
Output Signal | Transistor Output | NPN open collector output Output Electric current:80mA Max Internal pressure drop:≤ 1V | PNP open collector output Output Electric current:80mA Max Internal pressure drop:≤ 1V |
Response Time | Adjustable : 2.5ms, 20ms, 100ms, 500ms, 1000ms, 2000ms | ||
Short circuit Protection | Yes | ||
Environmental Resistance | IP Grade | IP40 | |
Environment Temperature | Use environment temperature:0~50℃ , Keep environment temperature:-20~60℃ | ||
Environment Humidity | Use environment humidity:35~80%RH | ||
Insulation Voltage | 1000VAC 1 minute | ||
Insulation Resistance | ≥ 50MΩ (500VDC) | ||
Shock Proof | Max 100m/s²,3 axis & 6 directions/3times | ||
Resistant to Vibration | Amplitude 1.5mm,10HZ~500HZ,3axis/2h |

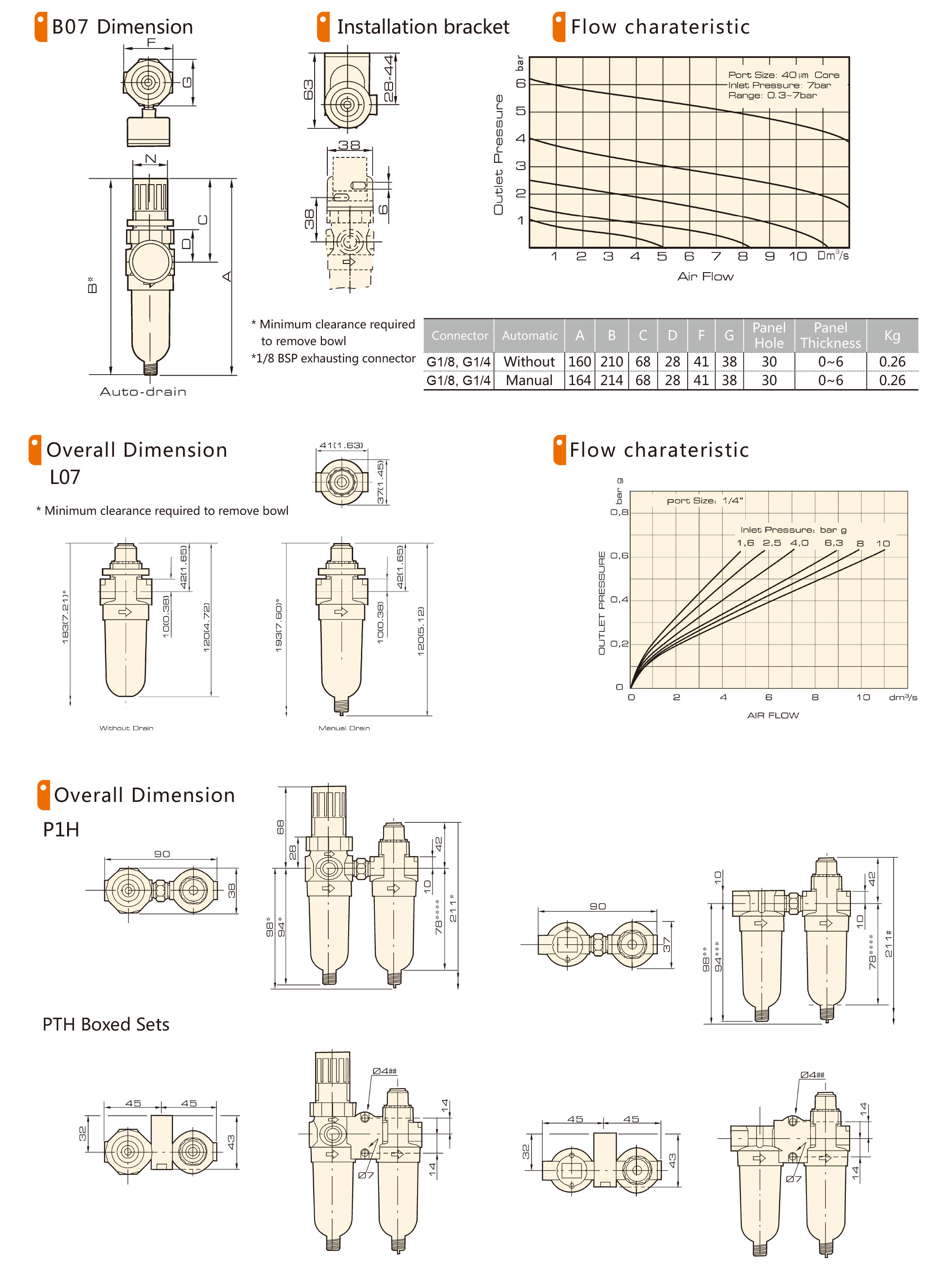

Overall Dimension
ZYR10

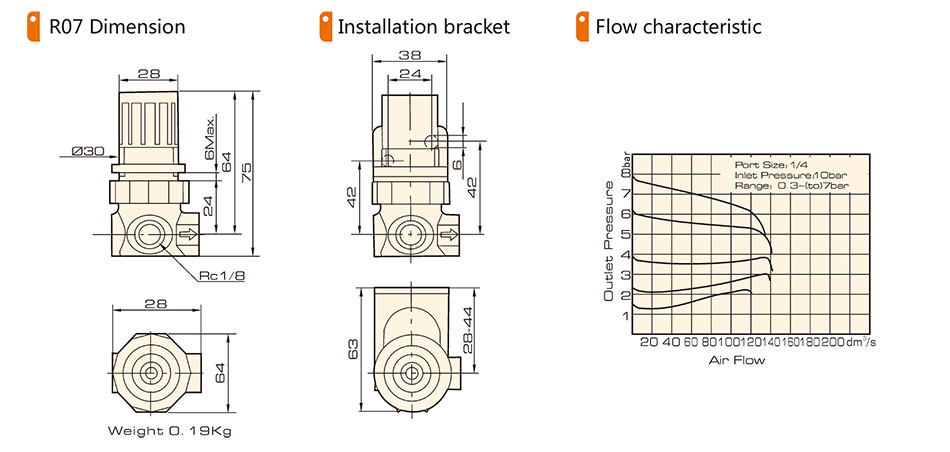

PTH

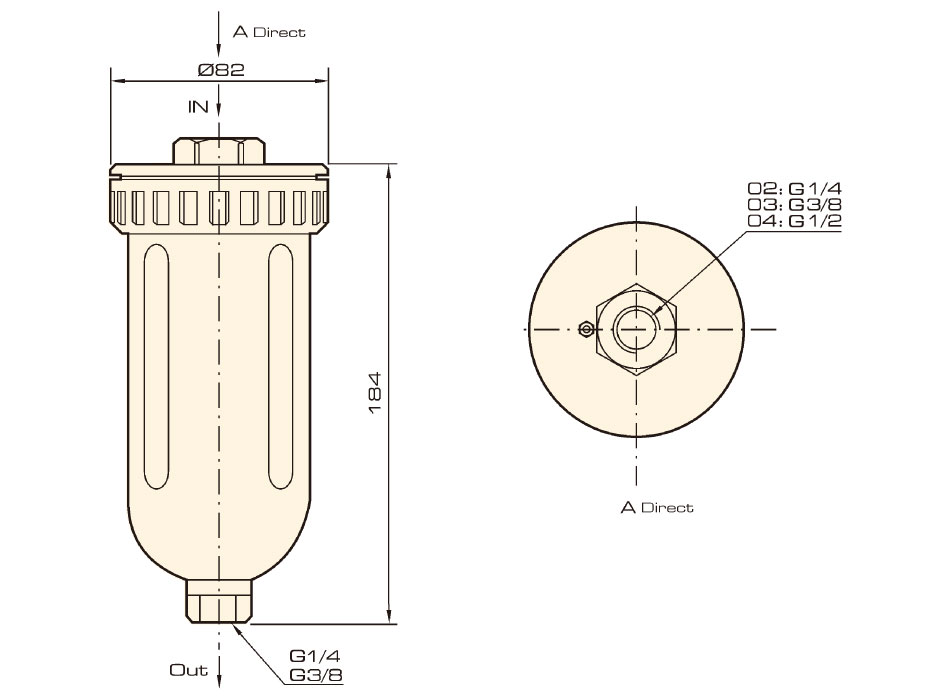

JAD
