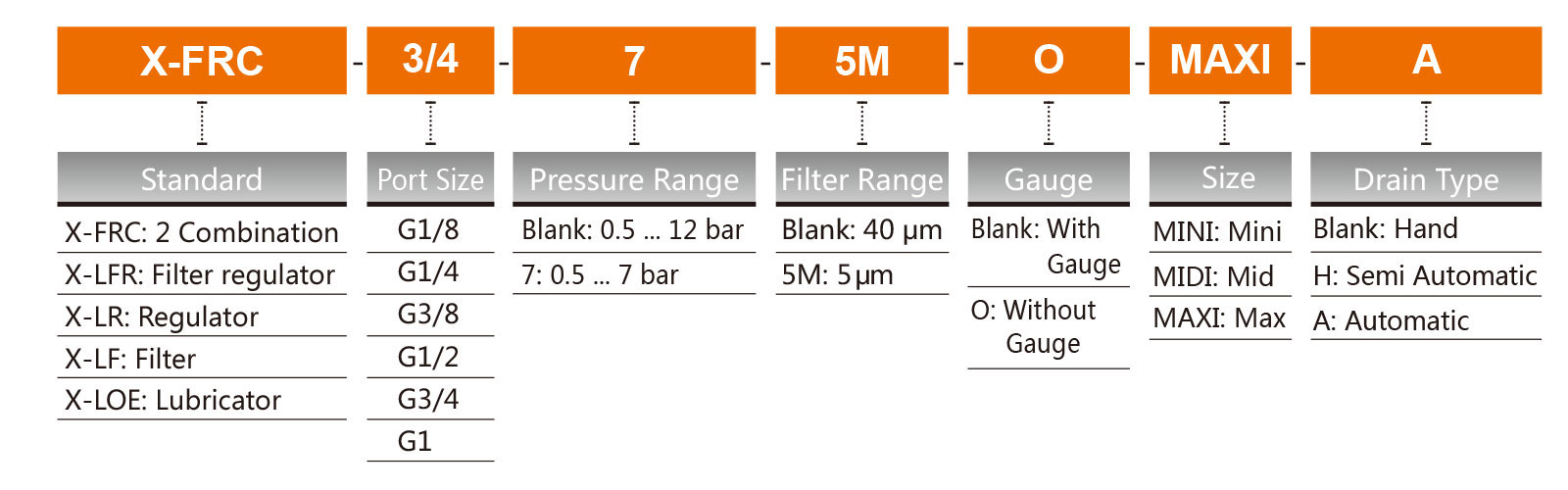

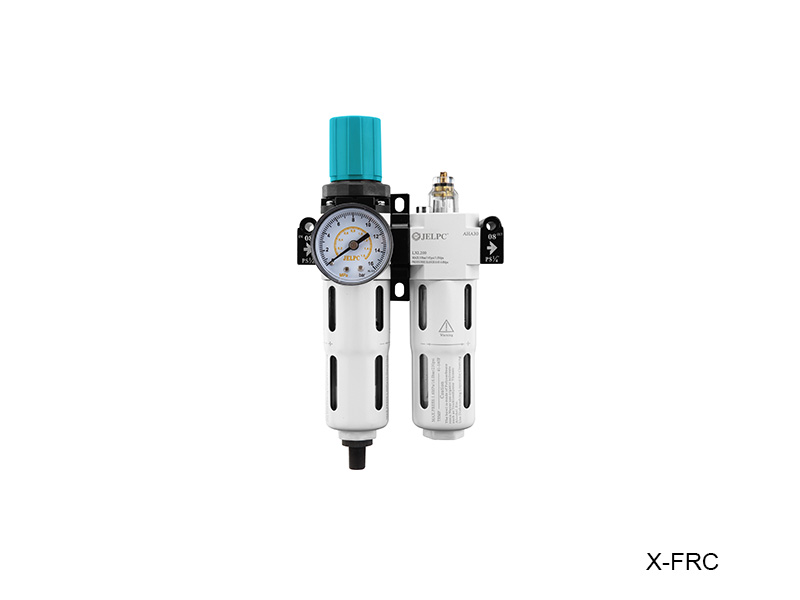

Ordering Code
Symbol
Specification
Specification | Mini | Midi | Maxi | ||||||
Port Size | G1/8 | G1/4 | G3/8 | G3/8 | Gl/2 | G3/4 | G3/4 | G1 | |
Working Medium | Compressed Air | ||||||||
Structure Features | Filter regulator, with/without gauge | ||||||||
proportional Lubricater | |||||||||
Install Way | By Accessories | ||||||||
Tube | |||||||||
Install Position | Vertical ±5° | ||||||||
Regulator Lock | Rotary handle, with lock | ||||||||
Rotary handle, with iterg rated locks | |||||||||
Filter Class [μm] | 5 or 40 | ||||||||
Max Hysteresis [bar] | 0.2 | 0.4 | |||||||
Preessure Range [bar] | 0.5 ... 7 | ||||||||
0.5 ... 12 | |||||||||
Preessure Display | By Gauge | ||||||||
G1/8 Preset | G1/4 Preset | G1/4 Preset | |||||||
Water Capacity [cm³] | 22 | 43 | 80 | ||||||
Input Pressure[bar] | |||||||||
Water Exhaust | Hand | 1 ... 16 | |||||||
Semi Automatic | 1.5 ... 16 | ||||||||
Automatic | 2 ... 12 |
Overall Dimension
Dimension
Model | B1 | B2 | B3 | B4 | D1 | ФD2 | D3 | D4 | ФD5 | ФD6 |
Mini | ||||||||||
FRC-1/8-MINI | 104 | 92 | 40 | 76 | G1/8 | 31 | M4 | M36×1.5 | 41 | 38 |
FRC-1/4-MINI | G1/4 | |||||||||
FRC-3/8-MINI | 110 | G3/8 | ||||||||
Midi | ||||||||||
FRC-3/8-MIDI | 140 | 125 | 55 | 95 | G3/8 | 50 | M5 | M52×1.5 | 50 | 52 |
FRC-1/2-MIDI | G1/2 | |||||||||
FRC-3/4-MIDI | G3/4 | |||||||||
Maxi | ||||||||||
FRC-3/4-MAXI | 162 | 146 | 66 | 107 | G3/4 | 31 | M5 | M36×1.5 | 50 | 65 |
FRC-1-MAXI | 182 | 157 | G1 |
Model | HI | H2 | L1 | L2 | L3 | L4 | L5 | L8 | L9 | T1 | 1 | 2 |
Mini | ||||||||||||
FRC-1/8-MINI | 20 | 11 | 193 | 169 | 60 | 69 | 100 | 15 | 19 | 7 | 14 | 22 |
FRC-1/4-MINI | ||||||||||||
FRC-3/8-MINI | ||||||||||||
Midi | ||||||||||||
FRC-3/8-MIDI | 32 | 22 | 250 | 204 | 80 | 99 | 120 | 15 | 19 | 8 | 14 | 24 |
FRC-1/2-MIDI | ||||||||||||
FRC-3/4-MIDI | ||||||||||||
Maxi | ||||||||||||
FRC-3/4-MAXI | 32 | 22 | 252 | 228 | 90 | 82 | 150 | 15 | 19 | 8 | 14 | 24 |
FRC-1-MAXI | 40 |
