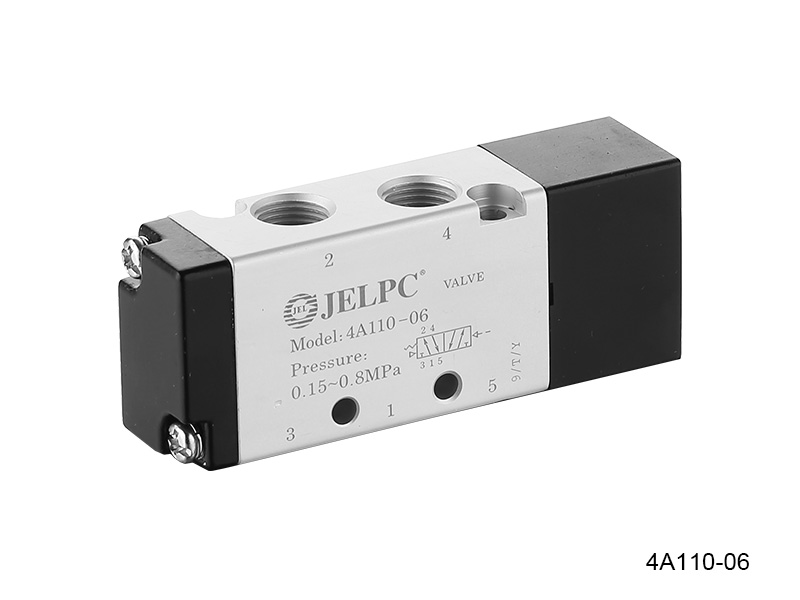

Specification
Model | J4V110-M5 | J4V120-M5 | J4V130C-M5 | J4V130E-M5 | J4V130P-M5 | J4V110-06 | J4V120-06 | J4V130C-06 | J4V130E-06 | J4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
Effective Cross Section Area | 10 mm 2 (CV = 0.56) | 7 mm 2 (CV = 0.40) | 12 mm 2 (CV = 0.67) | 9 mm 2 (CV = 0.5) | ||||||
Model | J3V110-M5 | J3V120-M5 | 3A110-M5 | 3A120-M5 | J3V110-06 | J3V120-06 | 3A110-06 | 3A120-06 | ||
Valve Type | 3/2 way | |||||||||
Effective Cross Section Area | 10 mm 2 (CV = 0.56) | 12 mm 2 ( CV = 0.67) | ||||||||
Port Size | Inlet, Outlet, Exhaust Port ＝ M5 × 0.8 | Inlet, Outlet, Exhaust Port ＝ G 1/8″ | ||||||||
Working Medium | 40 Micron Filtered Air | |||||||||
Operation | Internal piloted | |||||||||
Working-pressure | 0.15～0.8 MPa | |||||||||
Max. Test Pressure | 1.2MPa | |||||||||
Ambient Temperature | -20 ~ 70 ℃ | |||||||||
Operating Voltage Tolerance | ± 10% | |||||||||
Power Consumption | AC: 2.5VA DC: 2.5W | |||||||||
Connector Protection | F Class, IP 65 | |||||||||
Wiring / Connector | Cable / Lead Wire or DIN Connector | |||||||||
Switching Frequency | 5 Cycles / Sec. | |||||||||
Response Time | 0.05 Sec. | |||||||||

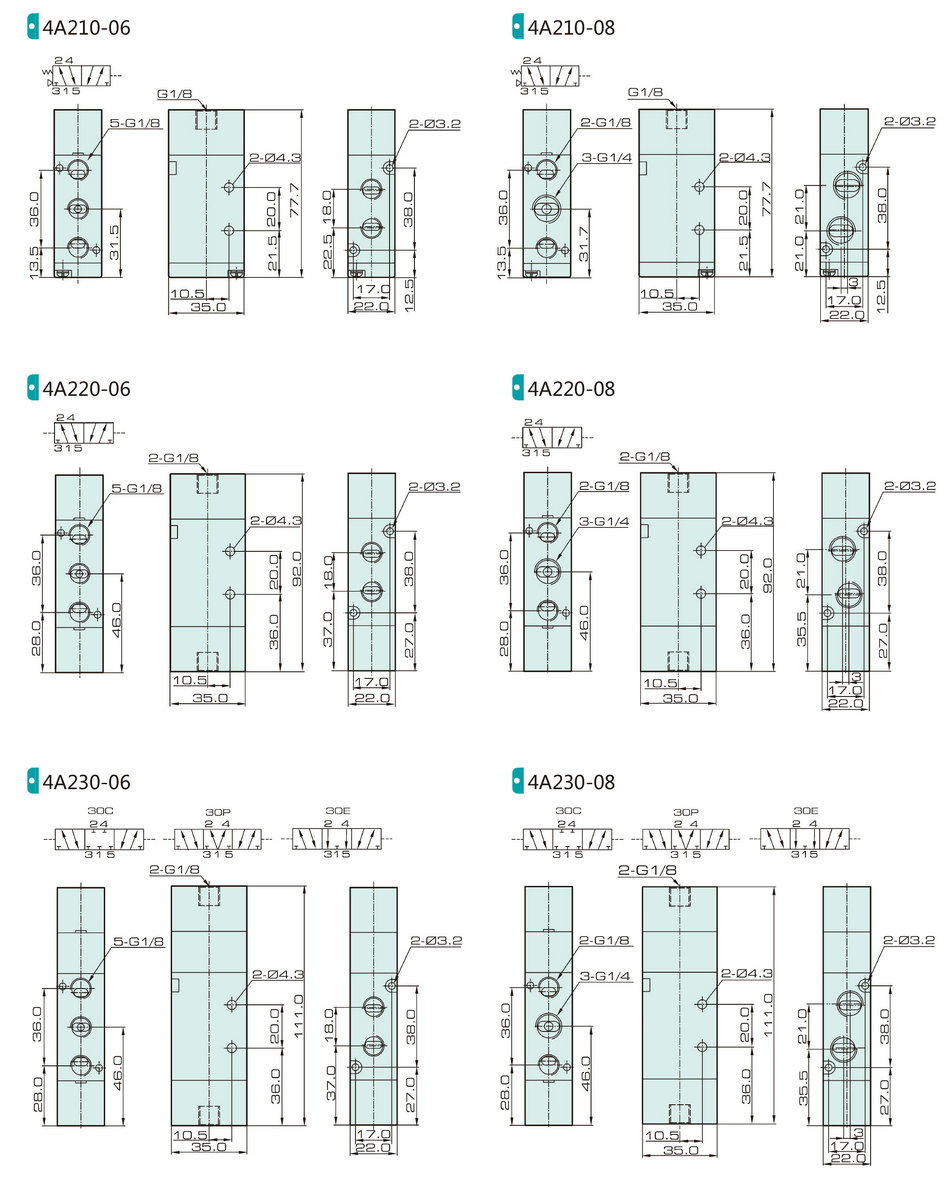

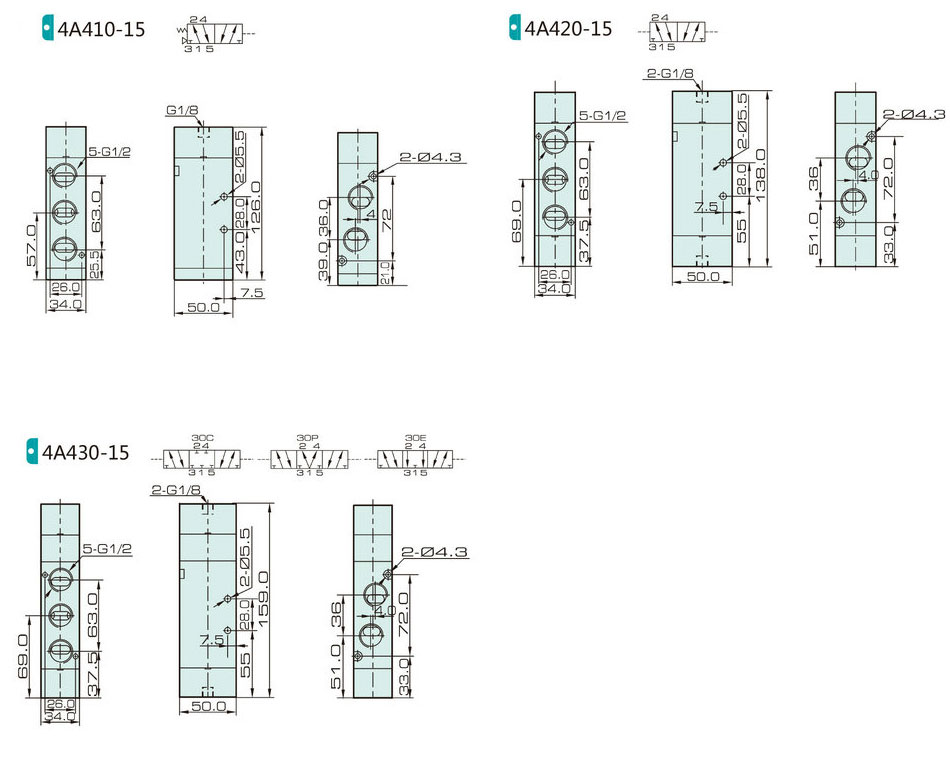

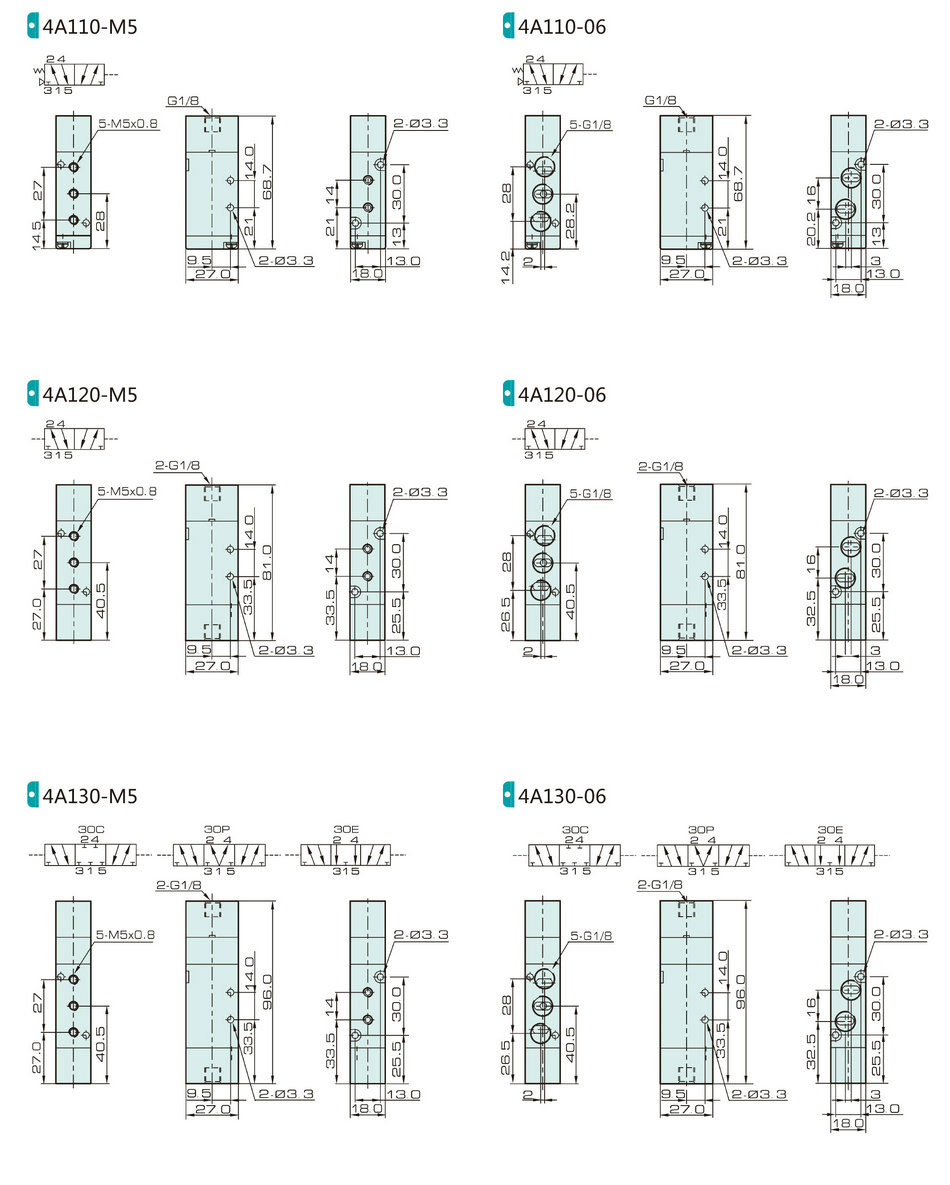

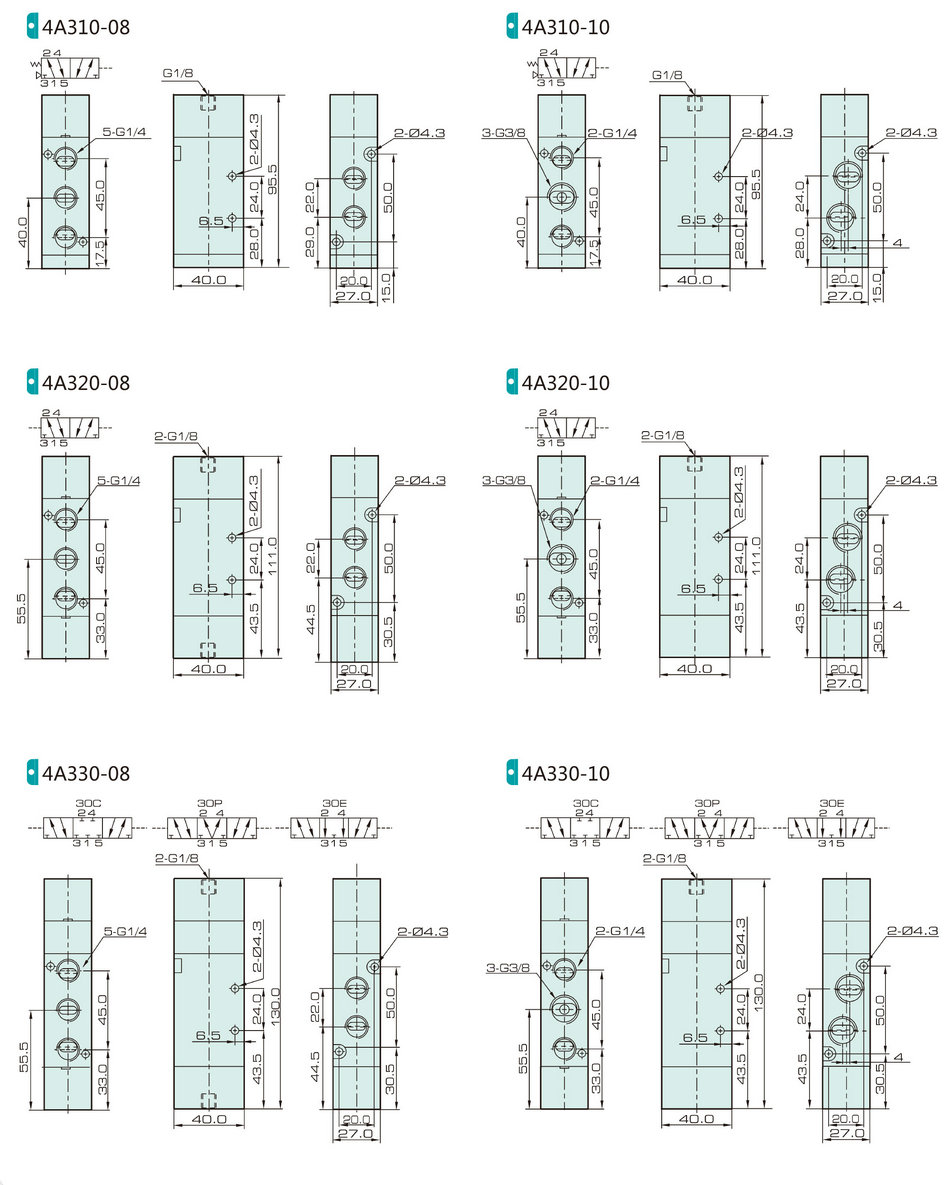

Overall Dimension:
