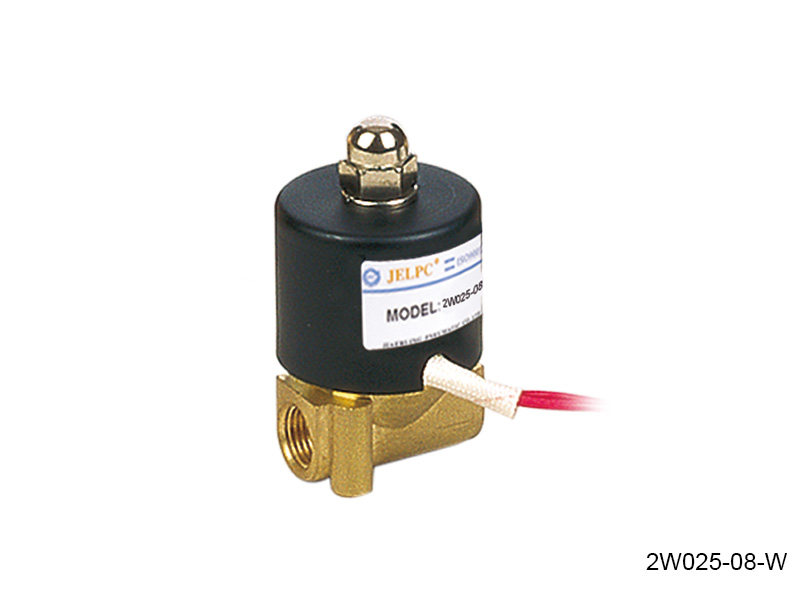

2W Series Solenoid Valve

2W Series Solenoid Valve

2/2 Way Solenoid Valve -Direct Operated

0
Views: 2,566
  • Product parameters
  • Product size

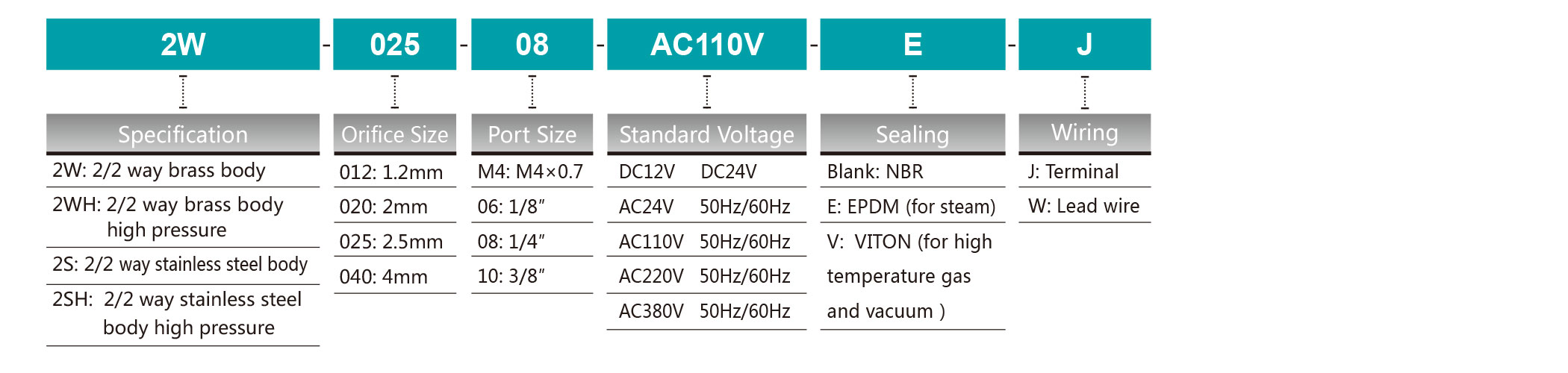

Ordering Code







Symbol







Specification



Model

2W025-06

2W025-08

2W040-10

2WH012-06

2WH012-08

2WH020-10

2S025-06

2S025-08

2S040-10

2SH012-06

2SH012-08

2SH020-10

Working Medium

Air, Water, Oil, Gas

Air, Water, Oil

Operation

Direct

Type

Normal Close

Orifice

2.5 mm

4 mm

1.2 mm

2 mm

CV Value

0.23

0.60

0.05

0.15

Port Size

1/8"

1/4"

3/8"

1/8"

 1/4"

3/8"

Operation Fluid Viscosity

Below 20 CST

Working-pressure

0～0.7 MPa

0～2.0 MPa

Max. Test Pressure

1.0 MPa

3.5 MPa

Max. Ambient Temperature

-10～80 ℃

Operating Voltage Tolerance

± 10%

Material of Body

2W: Brass 2S: Stainless Steel

Material of Oil Seal

NBR, EPDM or VITON
