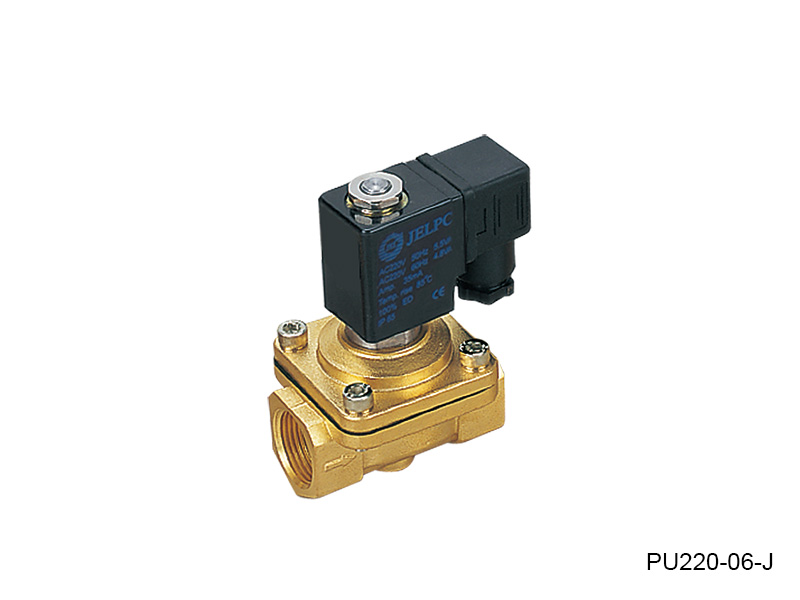

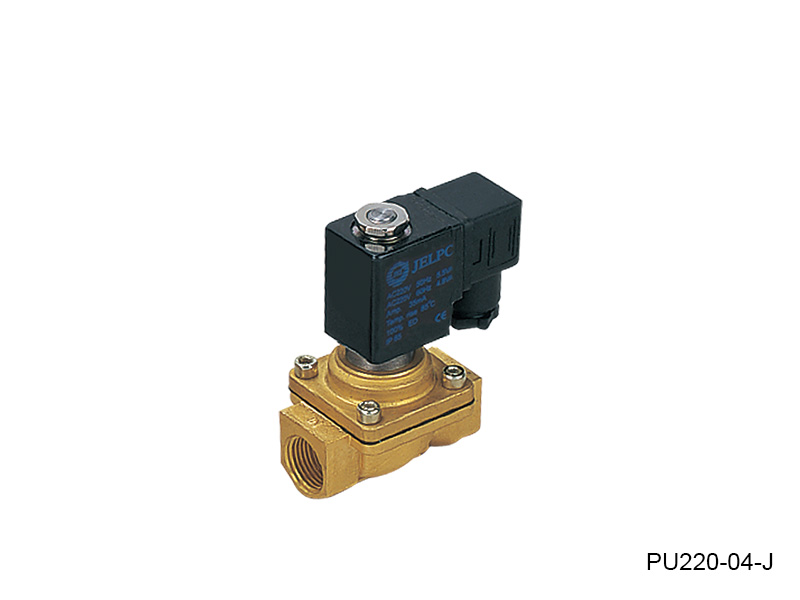

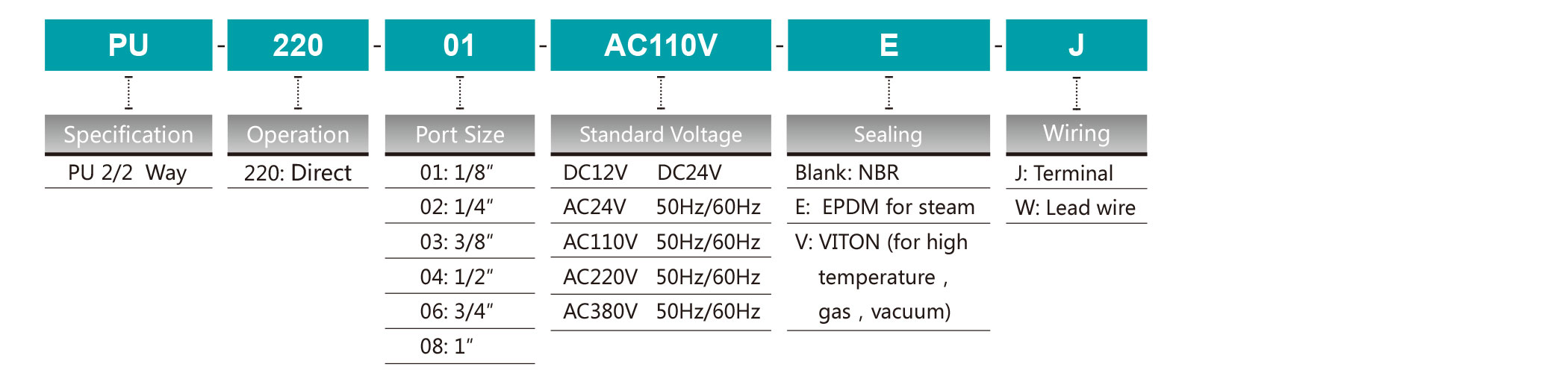

PU Series Pneumatic Flow Control Valves

Model

PU220-01

PU220-02

PU220-03

PU220-04

PU220-06

PU220-08

Working Medium

Air, Water, Oil

Operation

Direct

Type

Normal Close

Orifice

1.5mm

2.3mm

8.0mm

13mm

20mm

25mm

CV Value

0.10

0.18

1.00

4.00

8.60

11.00

Port Size

1/8"

1/4"

3/8"

1/2"

3/4"

1"

Operation Fluid Viscosity

Below 50 CST

Working-pressure

0～0.7 MPa

Max. Test Pressure

1.05 MPa

Max. Ambient Temperature

-10～80 ℃

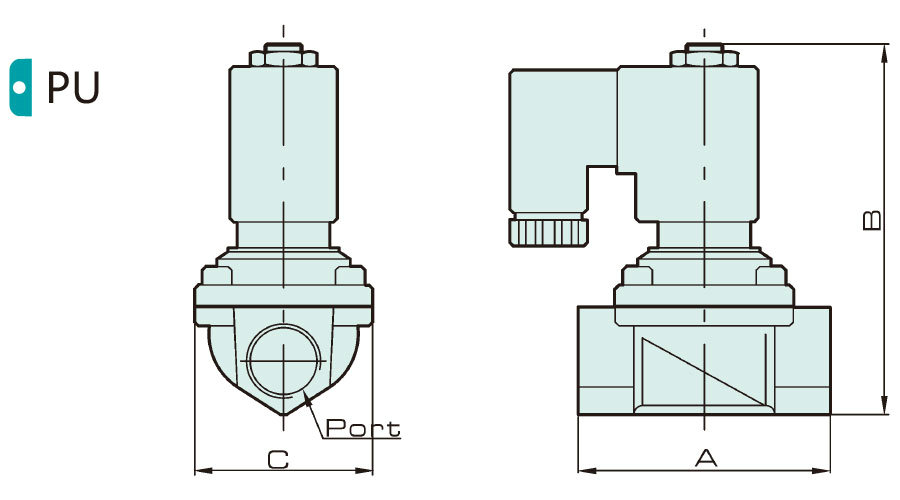

Model

Bore

A

B

C

PU220-01

PT1/8

22

72

22

PU220-02

PT1/4

35

75.5

25.4

PU220-03

PT3/8

55

79.5

30

PU220-04

PT1/2

66.5

101

48

PU220-06

PT3/4

71

107

48

PU220-08

PT1

96

120

70
