Internal Structure
Parts
| Number | Name | Number | Name | Number | Name |
| 1 | Cross slot pan screw | 7 | Valve spool | 13 | Coil |
| 2 | Back cover | 8 | Piston | 14 | Coil nut |
| 3 | Spring | 9 | Y ring | 15 | Fix plate |
| 4 | Anomalous seal | 10 | Spring | 16 | O ring |
| 5 | Valve body | 11 | Mannual ride spindle | 17 | Plunger |
| 6 | Flat ring | 12 | Terminal | 18 | Pilot seat |
Improvement of Flow Performance Indicator
Improvement of Life-time

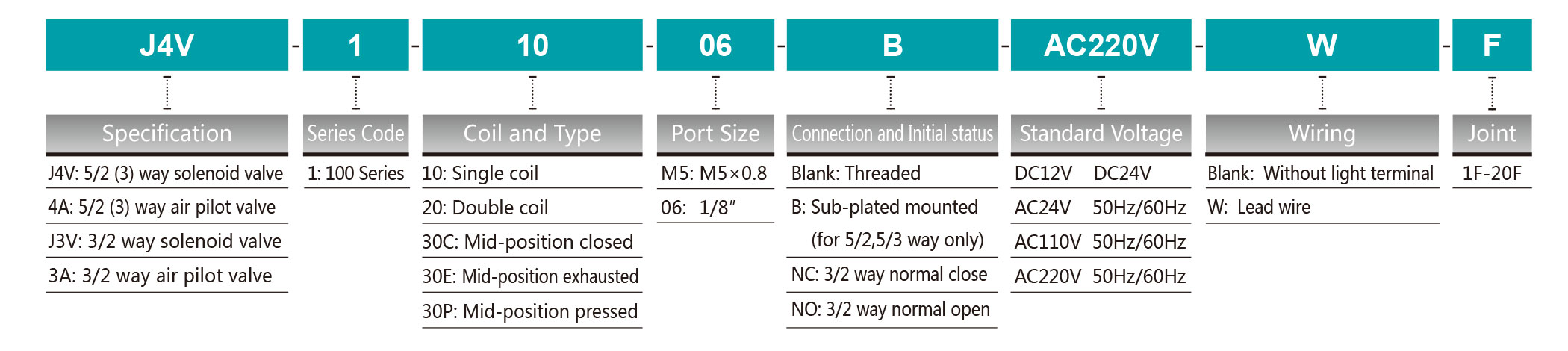

Order code：
Specification

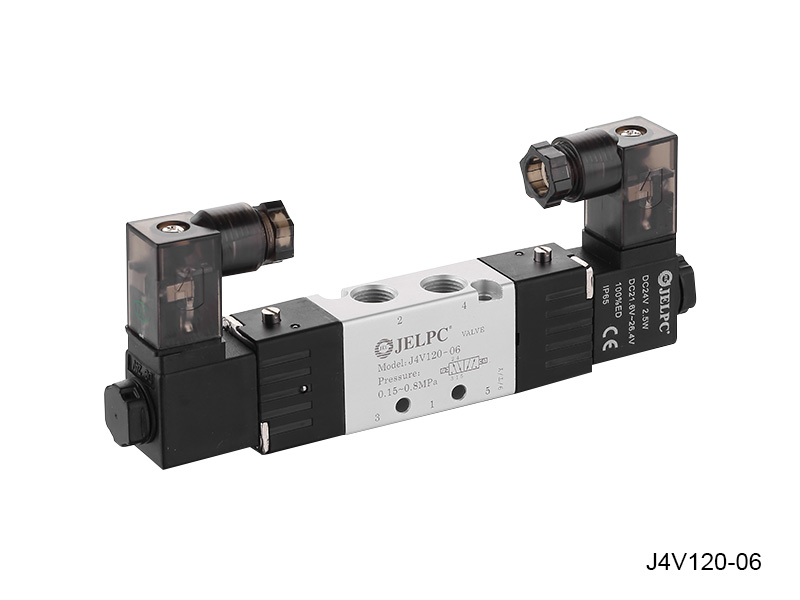

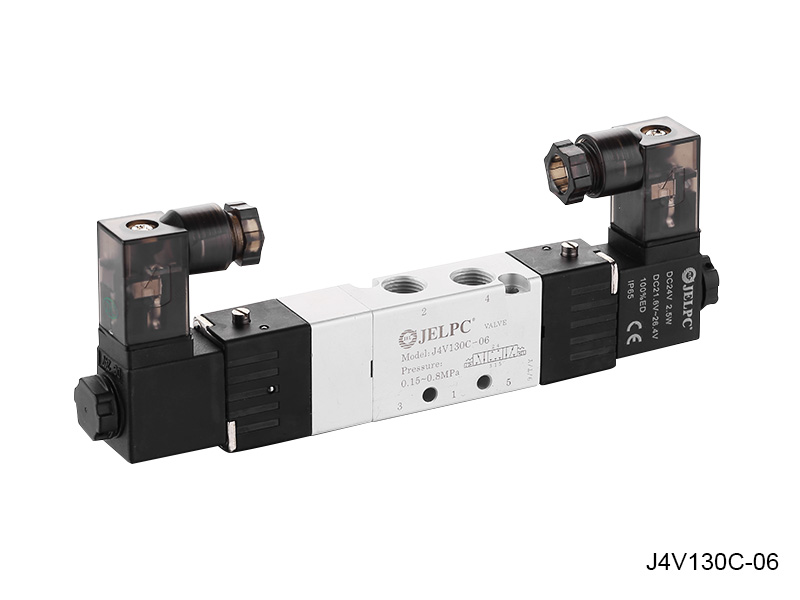

Model | J4V110-M5 | J4V120-M5 | J4V130C-M5 | J4V130E-M5 | J4V130P-M5 | J4V110-06 | J4V120-06 | J4V130C-06 | J4V130E-06 | J4V130P-06 |
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
Effective Cross Section Area | 10 mm 2 (CV = 0.56) | 7 mm 2 (CV = 0.40) | 12 mm 2 (CV = 0.67) | 9 mm 2 (CV = 0.5) | ||||||
Model | J3V110-M5 | J3V120-M5 | 3A110- M5 | 3A120-M5 | J3V110-06 | J3V120-06 | 3A110-06 | 3A120- 06 | ||
Valve Type | 3/2 way | |||||||||
Effective Cross Section Area | 10 mm 2 (CV = 0.56) | 12 mm 2 ( CV = 0.67) | ||||||||
Port Size | Inlet, Outlet, Exhaust Port ＝ M5 × 0.8 | Inlet, Outlet, Exhaust Port ＝ G 1/8″ | ||||||||
Working Medium | 40 Micron Filtered Air | |||||||||
Operation | Internal piloted | |||||||||
Working-pressure | 0.15～0.8 MPa | |||||||||
Max. Test Pressure | 1.2MPa | |||||||||
Ambient Temperature | -20 ~ 70 ℃ | |||||||||
Operating Voltage Tolerance | ± 10% | |||||||||
Power Consumption | AC: 2.5VA DC: 2.5W | |||||||||
Connector Protection | F Class, IP 65 | |||||||||
Wiring / Connector | Cable / Lead Wire or DIN Connector | |||||||||
Switching Frequency | 5 Cycles / Sec. | |||||||||
Response Time | 0.05 Sec. | |||||||||

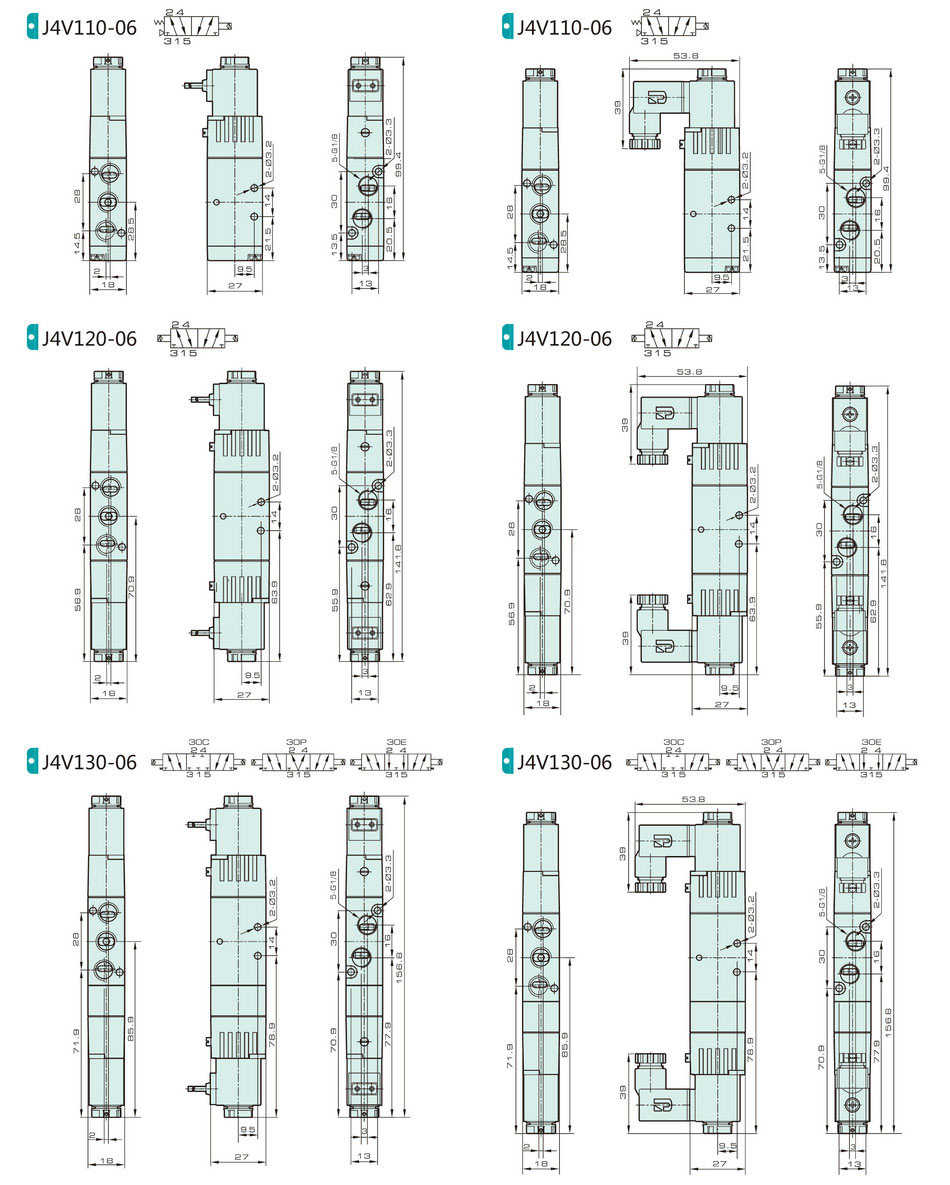

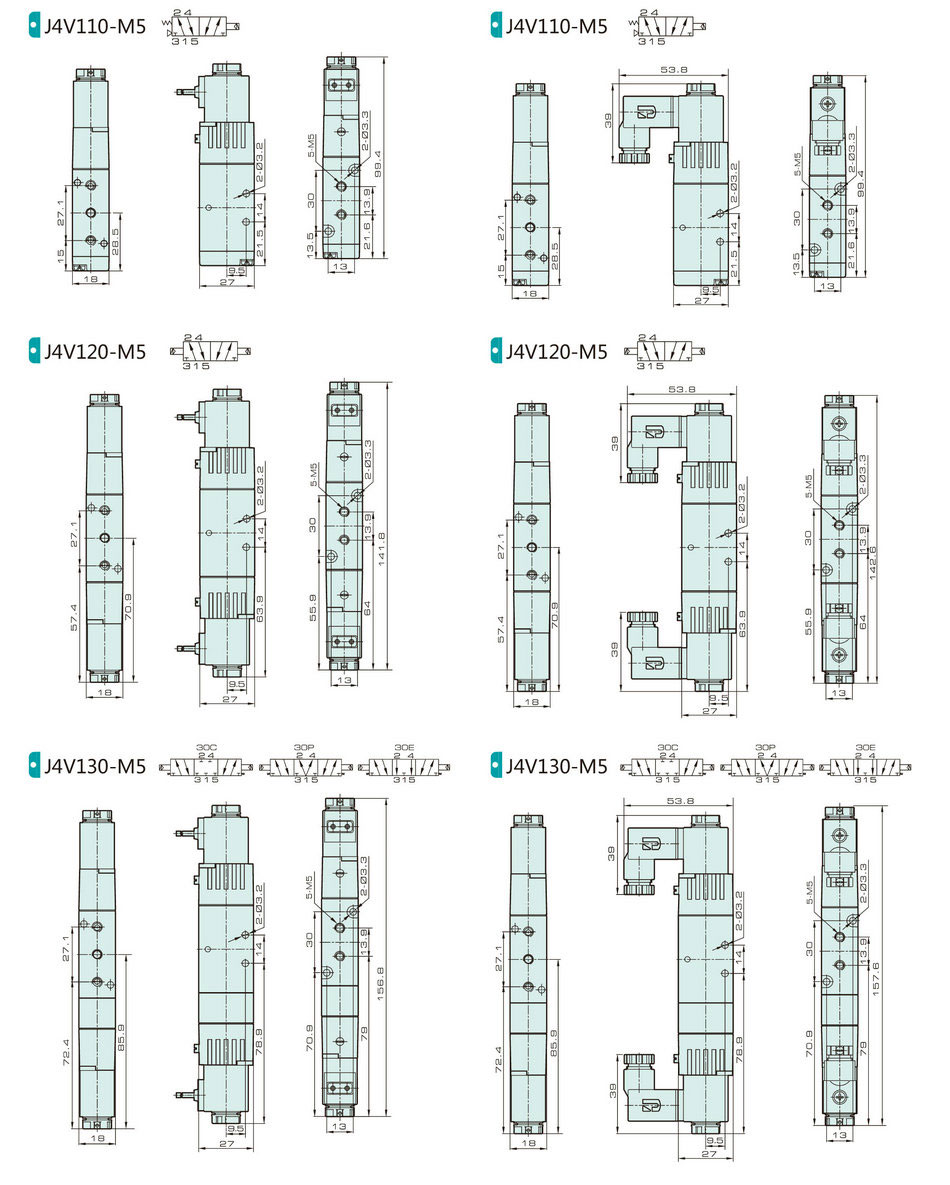

Overall Dimension:
